BYD 2024 Frigate 07 DM-i SUV
BYD's two major sales networks, Dynasty and Ocean, have always had a strong momentum of development. Although Ocean Network is slightly inferior to Dynasty Network, its product line is constantly being enriched and improved. Last month, 83,388 new cars were sold. In addition to the BYD Dolphin and Song PLUS models, the models with a sales volume of over 10,000 this time added a large five-seat SUV frigate 07
BYD Frigate 07 Specifications
| 100km | 205km | 175km 4WD | |
| Dimension | 4820*1920*1750 mm | ||
| Wheelbase | 2820 mm | ||
| Speed | Max. 180 km/h | ||
| 0-100 km/h Acceleration Time | 8.5 s | 8.9 s | 4.7 s |
| Battery Capacity | 18.3 kWh | 36.8 kWh | 36.8 kWh |
| Energy Consumption per 100 km | 2.1L / 21.5kWh | 1.42L / 22.1kWh | 1.62L / 22.8kWh |
| Power | 336 hp / 247 kW | 336 hp / 247 kW | 540 hp / 397 kW |
| Maximum Torque | 547 Nm | 547 Nm | 887 Nm |
| Number of Seats | 5 | ||
| Driving System | DM-i FF | DM-i FF | DM-i 4WD |
| Fuel Tank Capacity | 60L | 60L | 60L |
Appearance
The official guide price of Frigate 07 is 202,800-289,800 CNY. Its sales have been rising steadily for four consecutive months, especially in the last month, with 10,003 units sold well, becoming another hot model of Ocean.com.

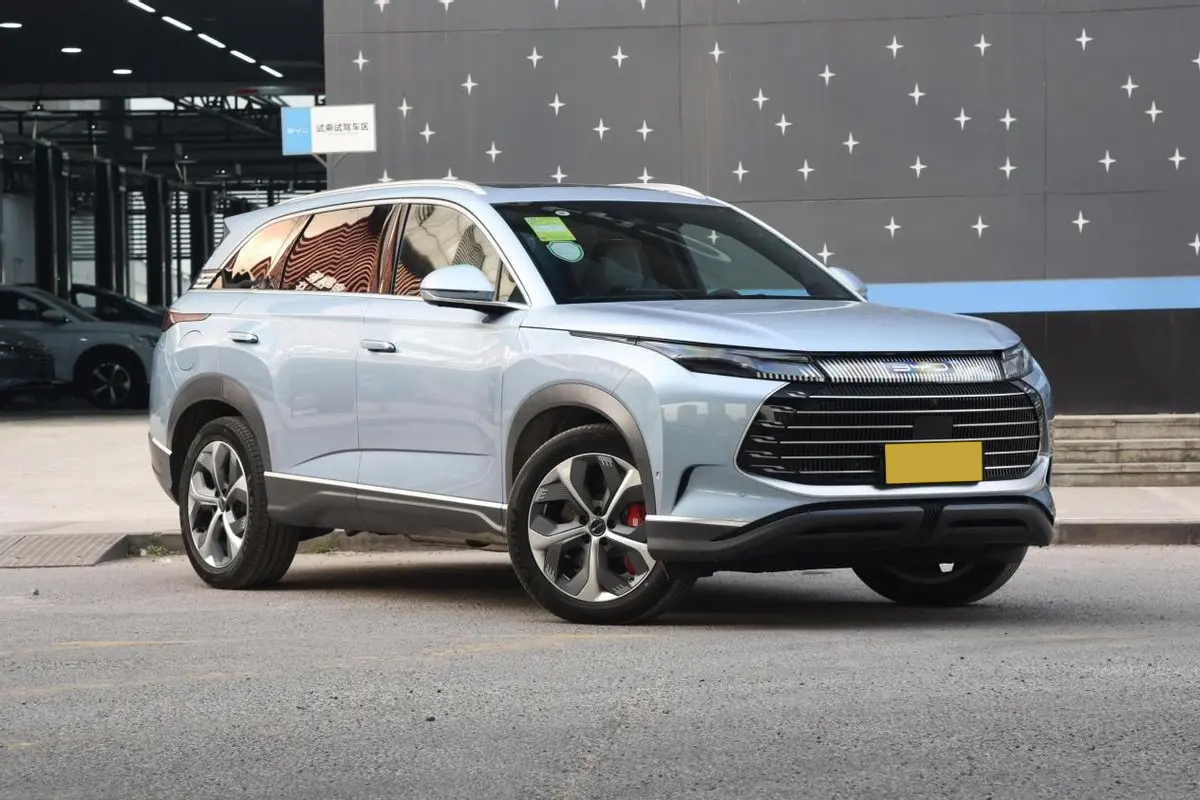

From the appearance, although the frigate 07 adheres to the design concept of ocean aesthetics, it is different from the agile and fashionable dolphins and the elegant and dynamic seals. The frigate 07 of the warship series gives a very tough and atmospheric feeling, especially the front grille with a large mouth, and the interior is decorated with thin strips with large spacing. Combined with daytime running lights, it looks like a sparkling sea from a distance, and the sense of luxury is not self-evident.

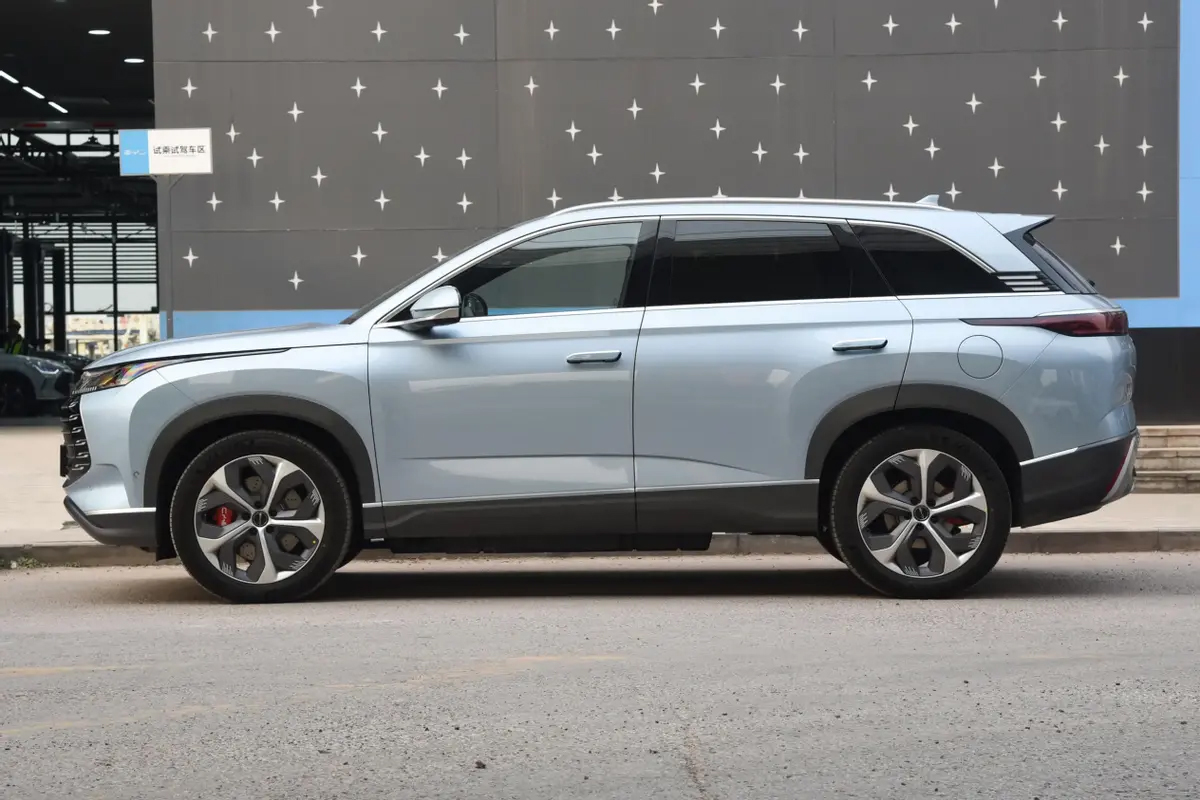

The side is full and powerful, with a sharp waistline that perfectly blends with the front headlights with eye-catching design, outlining a powerful and explosive side profile with just a few strokes. Of course, in terms of creating a sense of fashion, the frigate 07 does not lose points, and popular elements such as hidden door handles, floating roof, and through tail lights also exist.
Interior

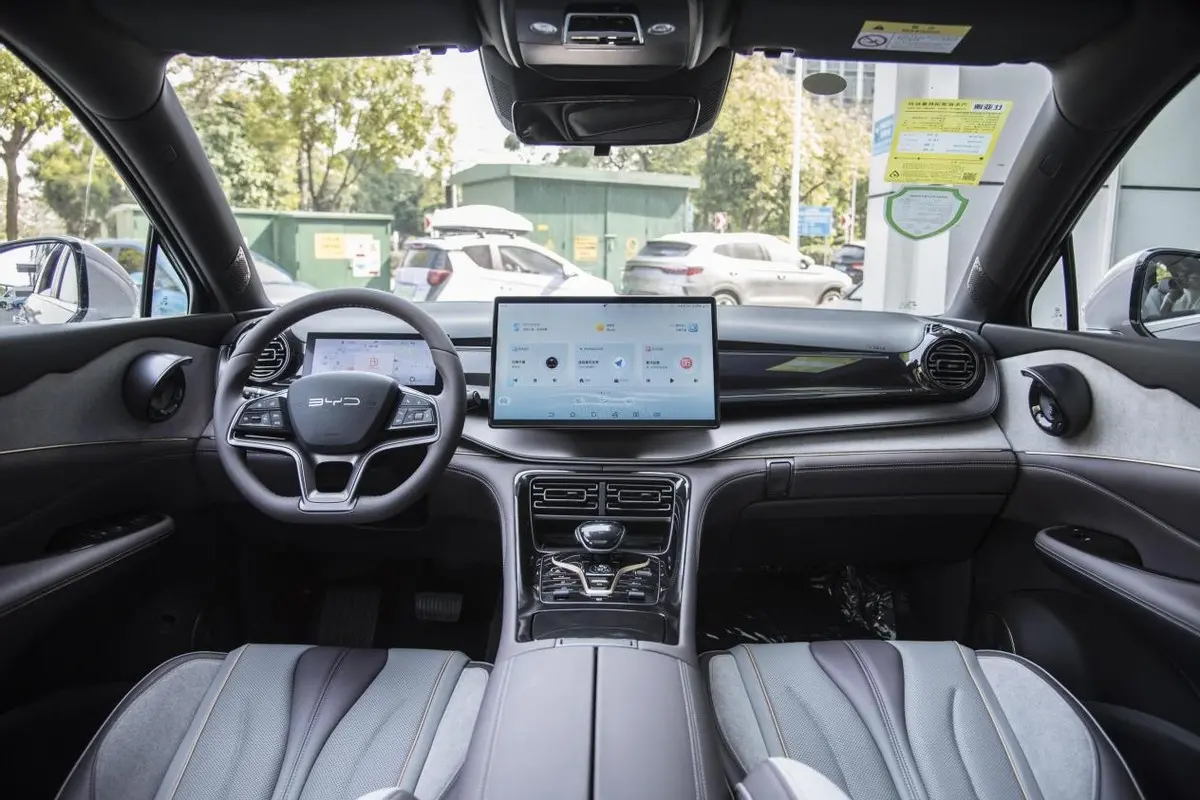

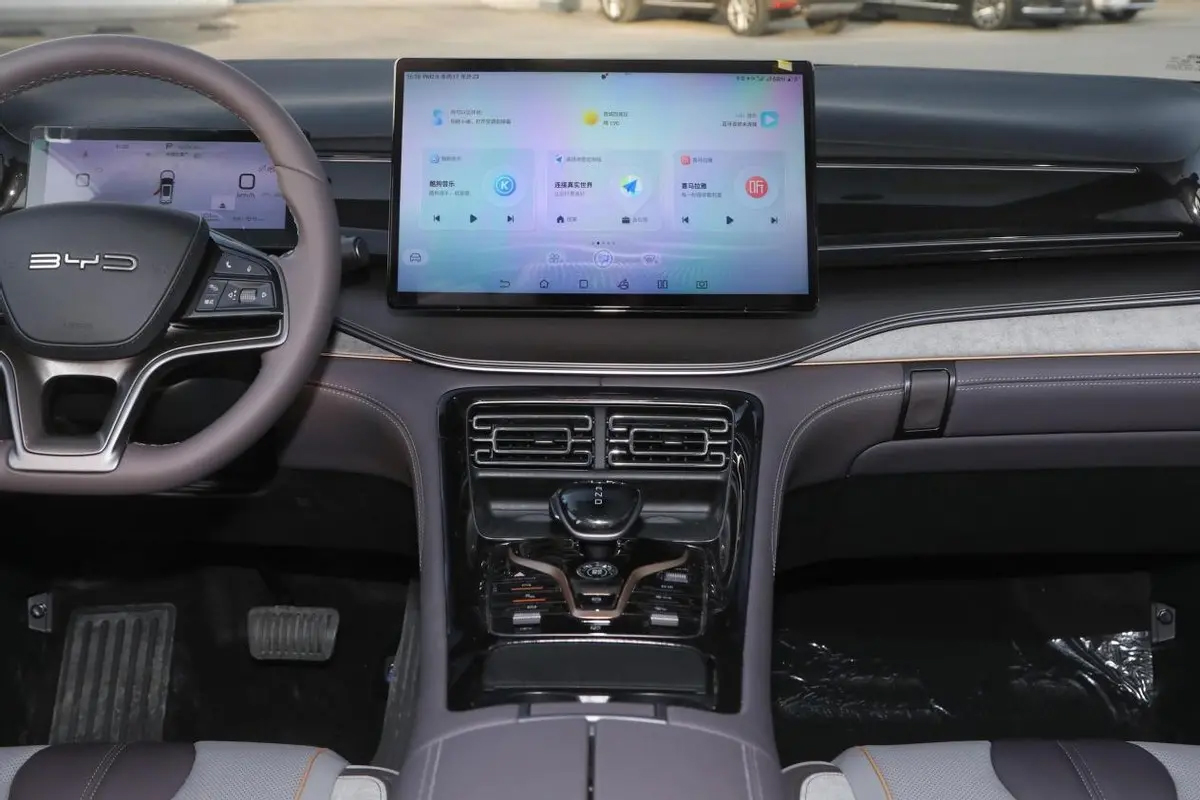

The cockpit adopts an encircling design, giving a full sense of security. Moreover, the selection of interior materials for the frigate 07 is also careful, with soft material coverage and a little chrome plating and stitching technology. The low-key interior atmosphere highlights the owner's style. A 15.6-inch 8-core adaptive rotating central control large screen, combined with a maximum 10.25-inch full LCD instrument panel, forms a traditional dual screen layout, injecting a lot of technological atmosphere into the car.
Looking at the configuration aspect, the entire series of the frigate 07 is equipped with a DiLink intelligent networking system, which includes multiple functions such as voice recognition, video entertainment, map navigation, and mobile connectivity, achieving seamless connection between people and cars, as well as between cars and daily life. And it also supports remote control of parking and entry through mobile phones, which is very necessary for beginners to no longer worry about complex parking environments.

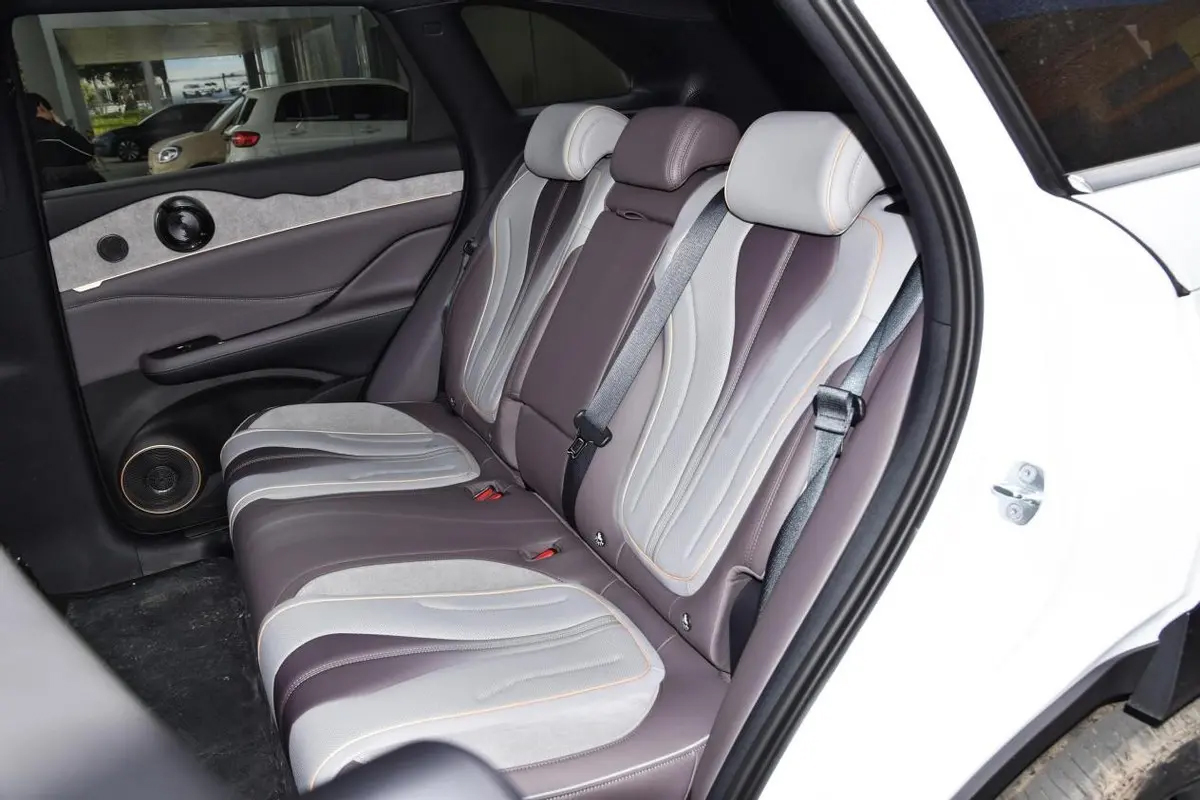

The frigate 07 is positioned as a mid size SUV, with a length, width, and height of 4820x1920x11750mm, providing ample interior space with a wheelbase of 2820mm. The seats are arranged in a 2+3 large five seater layout, wrapped in selected faux leather materials. Both the driver and passenger seats support electric adjustment. In addition to the entry-level model, other models also have heating and ventilation functions. The flat design of the rear platform ensures a comfortable and comfortable ride, even for long-distance travel.

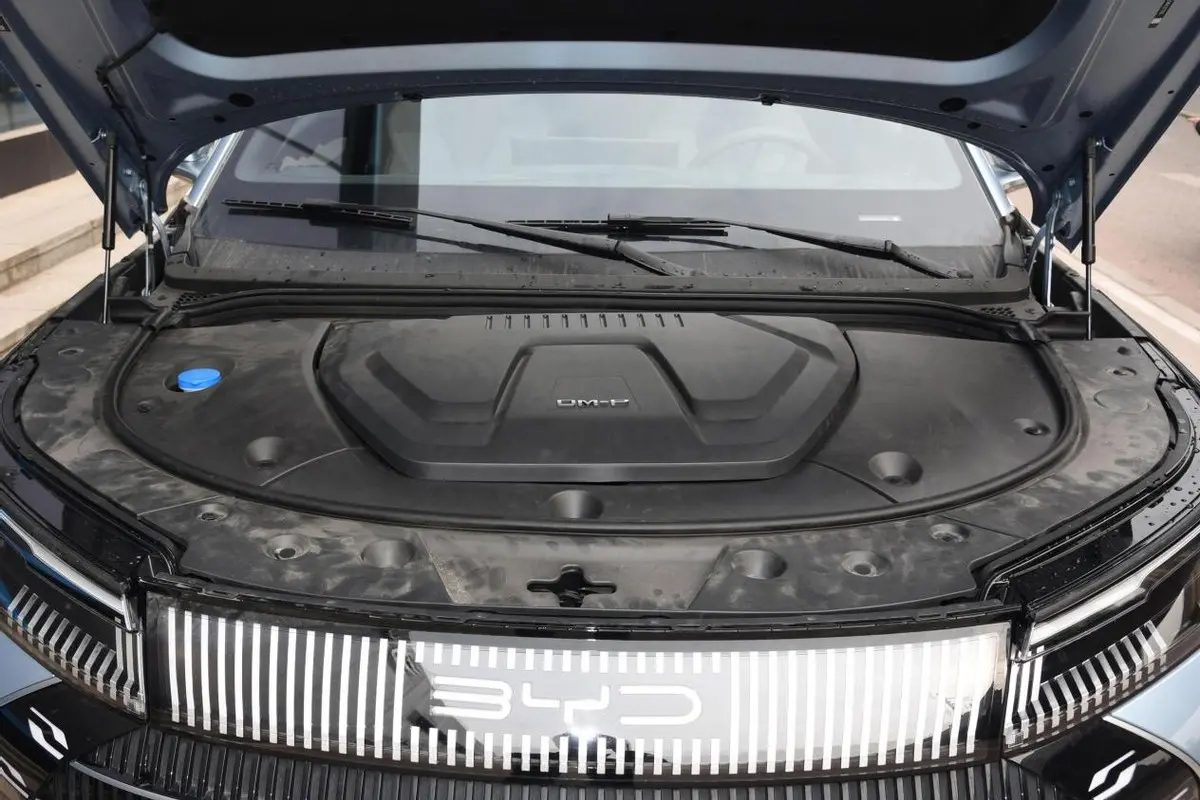

The BYD frigate 07 is equipped with BYD's super hybrid technology. The DM-i version consists of a 1.5T four cylinder turbocharged engine and a front single motor. The maximum power of the generator is 102kW, with a peak torque of 231 Nm, and the total power of the electric motor is 145kW, with a peak torque of 316 Nm.
| Car Model | BYD Frigate 07 | ||
| 2024 DM-i 100KM Luxury | 2024 DM-i 100KM Premium | 2024 DM-i 100KM Flagship | |
| Basic Information | |||
| Manufacturer | BYD | ||
| Energy Type | Plug-In Hybrid | ||
| Motor | 1.5T 139 HP L4 plug-in hybrid | ||
| Pure Electric Cruising Range(KM) | 100km | ||
| Charging Time(Hour) | Fast Charge 0.37 hours Slow Charge 5.5 hours | ||
| Engine Maximum Power (kW) | 102(139hp) | ||
| Motor Maximum Power (kW) | 145(197hp) | ||
| Engine Maximum Torque (Nm) | 231Nm | ||
| Motor Maximum Torque (Nm) | 316Nm | ||
| LxWxH(mm) | 4820*1920*1750mm | ||
| Maximum Speed(KM/H) | 180km | ||
| Electricity Consumption Per 100km (kWh/100km) | 21.5kWh | ||
| Minimum State Of Charge Fuel Consumption (L/100km) | 5.8L | ||
| Body | |||
| Wheelbase (mm) | 2820 | ||
| Front Wheel Base(mm) | 1640 | ||
| Rear Wheel Base(mm) | 1640 | ||
| Number Of Doors (pcs) | 5 | ||
| Number Of Seats (pcs) | 5 | ||
| Curb Weight (kg) | 2047 | ||
| Full Load Mass(kg) | 2422 | ||
| Fuel tank capacity (L) | 60 | ||
| Drag Coefficient (Cd) | None | ||
| Engine | |||
| Engine Model | BYD476ZQC | ||
| Displacement (mL) | 1497 | ||
| Displacement (L) | 1.5 | ||
| Air Intake Form | Turbocharged | ||
| Cylinder Arrangement | L | ||
| Number Of Cylinders (pcs) | 4 | ||
| Number Of Valves Per Cylinder (pcs) | 4 | ||
| Maximum Horsepower (Ps) | 139 | ||
| Maximum Power (kW) | 102 | ||
| Maximum Torque (Nm) | 231 | ||
| Engine Specific Technology | None | ||
| Fuel Form | Plug-In Hybrid | ||
| Fuel Grade | 92# | ||
| Fuel Supply Method | In-Cylinder Direct Injection | ||
| Electric Motor | |||
| Motor Description | Plug-In Hybrid 197 hp | ||
| Motor Type | Permanent magnet/synchronous | ||
| Total Motor Power (kW) | 145 | ||
| Motor Total Horsepower (Ps) | 197 | ||
| Motor Total Torque (Nm) | 316 | ||
| Front Motor Maximum Power (kW) | 145 | ||
| Front Motor Maximum Torque (Nm) | 316 | ||
| Rear Motor Maximum Power (kW) | None | ||
| Rear Motor Maximum Torque (Nm) | None | ||
| Drive Motor Number | Single Motor | ||
| Motor Layout | Front | ||
| Battery Charging | |||
| Battery Type | Lithium Iron Phosphate Battery | ||
| Battery Brand | BYD | ||
| Battery Technology | BYD Blade Battery | ||
| Battery Capacity(kWh) | 18.3kWh | ||
| Battery Charging | Fast Charge 0.37 hours Slow Charge 5.5 hours | ||
| Fast Charge Port | |||
| Battery Temperature Management System | Low Temperature Heating | ||
| Liquid Cooled | |||
| Gearbox | |||
| Gearbox Description | E-CVT | ||
| Gears | Continuously Variable Speed | ||
| Gearbox Type | Electronic Continuously Variable Transmission (E-CVT) | ||
| Chassis/Steering | |||
| Drive Mode | Front FWD | ||
| Four-Wheel Drive Type | None | ||
| Front Suspension | MacPherson Independent Suspension | ||
| Rear Suspension | Multi-Link Independent Suspension | ||
| Steering Type | Electric Assist | ||
| Body Structure | Load Bearing | ||
| Wheel/Brake | |||
| Front Brake Type | Ventilated Disc | ||
| Rear Brake Type | Solid Disc | ||
| Front Tire Size | 235/55 R19 | 245/50 R20 | |
| Rear Tire Size | 235/55 R19 | 245/50 R20 | |
| Car Model | BYD Frigate 07 | ||
| 2023 DM-i 205KM Premium | 2023 DM-i 205KM Flagship | 2023 DM-p 175KM 4WD Flagship | |
| Basic Information | |||
| Manufacturer | BYD | ||
| Energy Type | Plug-In Hybrid | ||
| Motor | 1.5T 139 HP L4 plug-in hybrid | ||
| Pure Electric Cruising Range(KM) | 205km | 175km | |
| Charging Time(Hour) | Fast Charge 0.33 hours Slow Charge 11.1 hours | ||
| Engine Maximum Power (kW) | 102(139hp) | ||
| Motor Maximum Power (kW) | 145(197hp) | 295(401hp) | |
| Engine Maximum Torque (Nm) | 231Nm | ||
| Motor Maximum Torque (Nm) | 316Nm | 656Nm | |
| LxWxH(mm) | 4820*1920*1750mm | ||
| Maximum Speed(KM/H) | 180km | ||
| Electricity Consumption Per 100km (kWh/100km) | 22.1kWh | 22.8kWh | |
| Minimum State Of Charge Fuel Consumption (L/100km) | 5.8L | 6.7L | |
| Body | |||
| Wheelbase (mm) | 2820 | ||
| Front Wheel Base(mm) | 1640 | ||
| Rear Wheel Base(mm) | 1640 | ||
| Number Of Doors (pcs) | 5 | ||
| Number Of Seats (pcs) | 5 | ||
| Curb Weight (kg) | 2140 | 2270 | |
| Full Load Mass(kg) | 2515 | 2645 | |
| Fuel tank capacity (L) | 60 | ||
| Drag Coefficient (Cd) | None | ||
| Engine | |||
| Engine Model | BYD476ZQC | ||
| Displacement (mL) | 1497 | ||
| Displacement (L) | 1.5 | ||
| Air Intake Form | Turbocharged | ||
| Cylinder Arrangement | L | ||
| Number Of Cylinders (pcs) | 4 | ||
| Number Of Valves Per Cylinder (pcs) | 4 | ||
| Maximum Horsepower (Ps) | 139 | ||
| Maximum Power (kW) | 102 | ||
| Maximum Torque (Nm) | 231 | ||
| Engine Specific Technology | None | ||
| Fuel Form | Plug-In Hybrid | ||
| Fuel Grade | 92# | ||
| Fuel Supply Method | In-Cylinder Direct Injection | ||
| Electric Motor | |||
| Motor Description | Plug-In Hybrid 197 hp | Plug-In Hybrid 401 hp | |
| Motor Type | Permanent magnet/synchronous | ||
| Total Motor Power (kW) | 145 | 295 | |
| Motor Total Horsepower (Ps) | 197 | 401 | |
| Motor Total Torque (Nm) | 316 | 656 | |
| Front Motor Maximum Power (kW) | 145 | ||
| Front Motor Maximum Torque (Nm) | 316 | ||
| Rear Motor Maximum Power (kW) | None | 150 | |
| Rear Motor Maximum Torque (Nm) | None | 340 | |
| Drive Motor Number | Single Motor | Double Motor | |
| Motor Layout | Front | Front + Rear | |
| Battery Charging | |||
| Battery Type | Lithium Iron Phosphate Battery | ||
| Battery Brand | BYD | ||
| Battery Technology | BYD Blade Battery | ||
| Battery Capacity(kWh) | 36.8kWh | ||
| Battery Charging | Fast Charge 0.33 hours Slow Charge 11.1 hours | ||
| Fast Charge Port | |||
| Battery Temperature Management System | Low Temperature Heating | ||
| Liquid Cooled | |||
| Gearbox | |||
| Gearbox Description | E-CVT | ||
| Gears | Continuously Variable Speed | ||
| Gearbox Type | Electronic Continuously Variable Transmission (E-CVT) | ||
| Chassis/Steering | |||
| Drive Mode | Front FWD | Front 4WD | |
| Four-Wheel Drive Type | None | Electric 4WD | |
| Front Suspension | MacPherson Independent Suspension | ||
| Rear Suspension | Multi-Link Independent Suspension | ||
| Steering Type | Electric Assist | ||
| Body Structure | Load Bearing | ||
| Wheel/Brake | |||
| Front Brake Type | Ventilated Disc | ||
| Rear Brake Type | Solid Disc | ||
| Front Tire Size | 245/50 R20 | ||
| Rear Tire Size | 245/50 R20 | ||
