BYD Han DM-i Hybrid Sedan

Han DM is equipped with the design concept of the Dynasty series, and the LOGO in the shape of an artistic font is relatively eye-catching. It is designed by embossing techniques to achieve the purpose of enhancing clarity and class. It is positioned as a medium-to-large sedan. The wheelbase of 2920mm is relatively good among sedans of the same level. The exterior design is more fashionable and the interior design is more trendy.


Product Detail

PRODUCT SPECIFICATIONS

ABOUT US

Product Tags

The performance of BYD Han DM-i Champion Edition is very good, whether it is power, fuel consumption or suspension, it can bring users a different driving experience. Coupled with the beautiful appearance, elegant interior and spacious space, the comprehensive strength is very strong. If you plan to buy a medium-to-large new energy sedan, you might as well pay attention to the BYD Han DM-i Champion Edition.

BYD Han DM_8

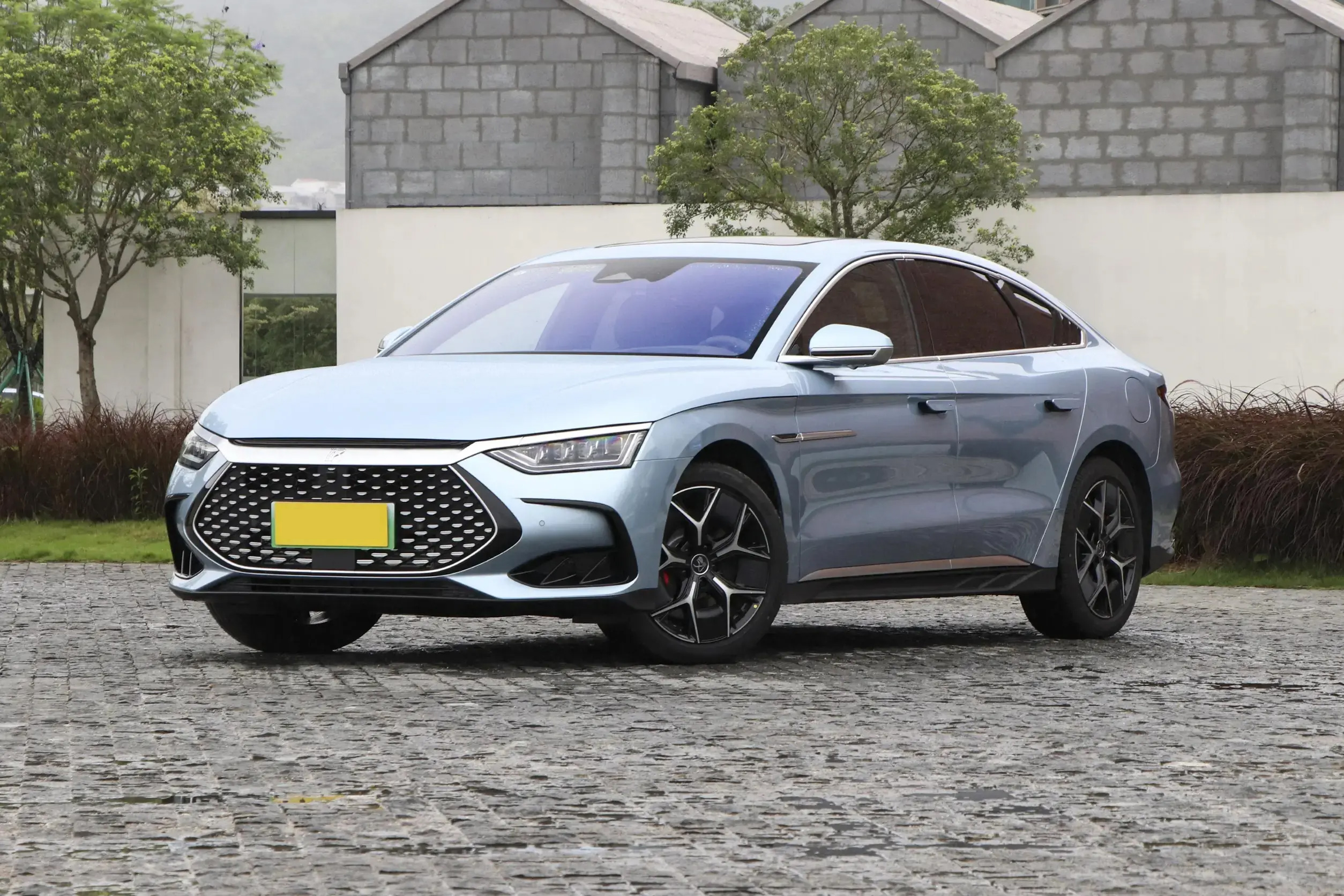

The lines of the front face are also very prominent. The large-size grille is embellished with chrome to show a good visual effect, and the LED headlights on both sides are also very sharp. The lighting configuration has functions such as daytime running lights, adaptive far and near beams, automatic headlights, steering assist lights, headlight height adjustment, and headlight delay off.

BYD Han DM_7

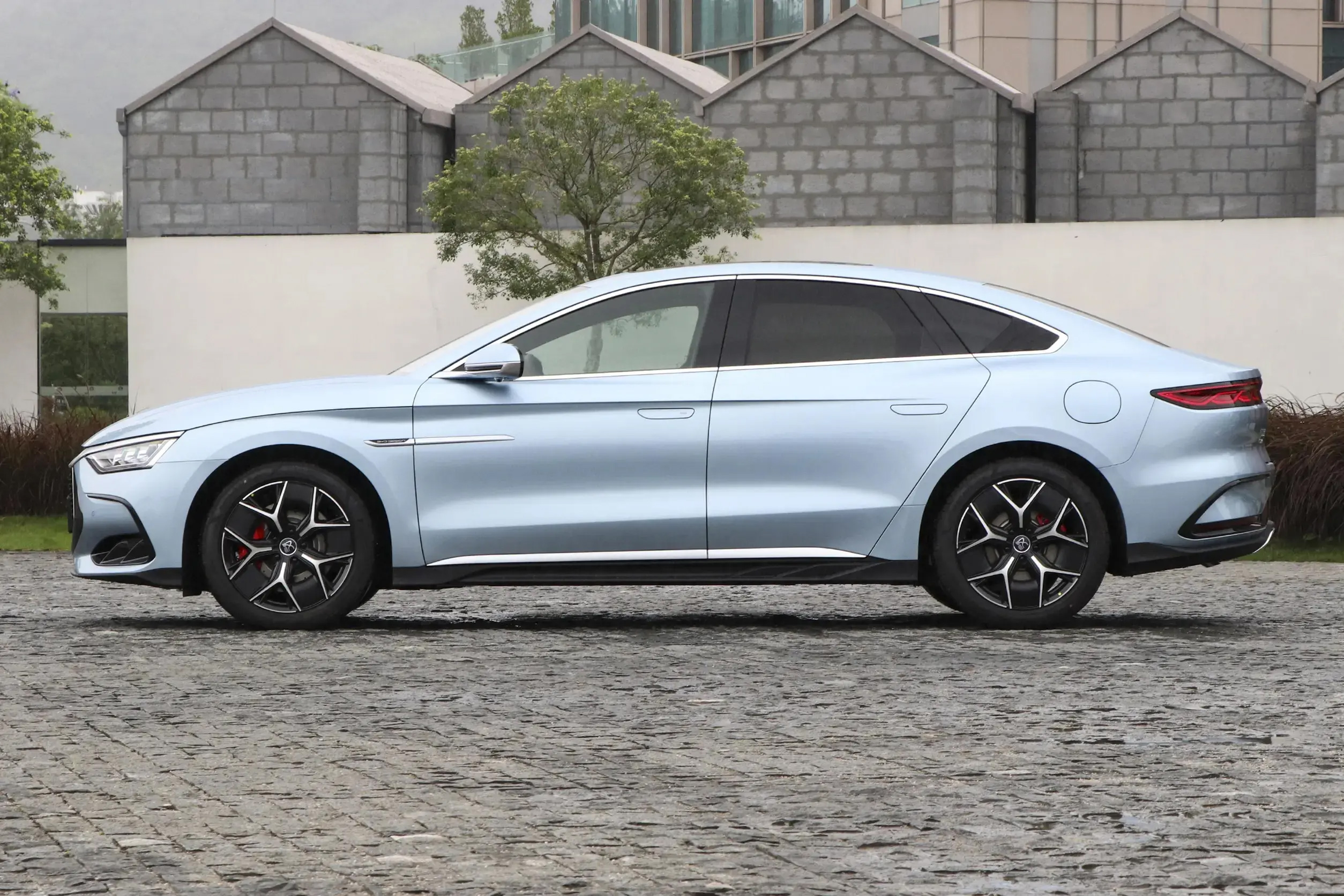

The body line is very good, especially the waistline can show a good sense of hierarchy. The size is 4975/1910/1495mm in length, width and height, and the wheelbase is 2920mm. In terms of size, it has indeed achieved its due performance at this level.

BYD Han DM_6

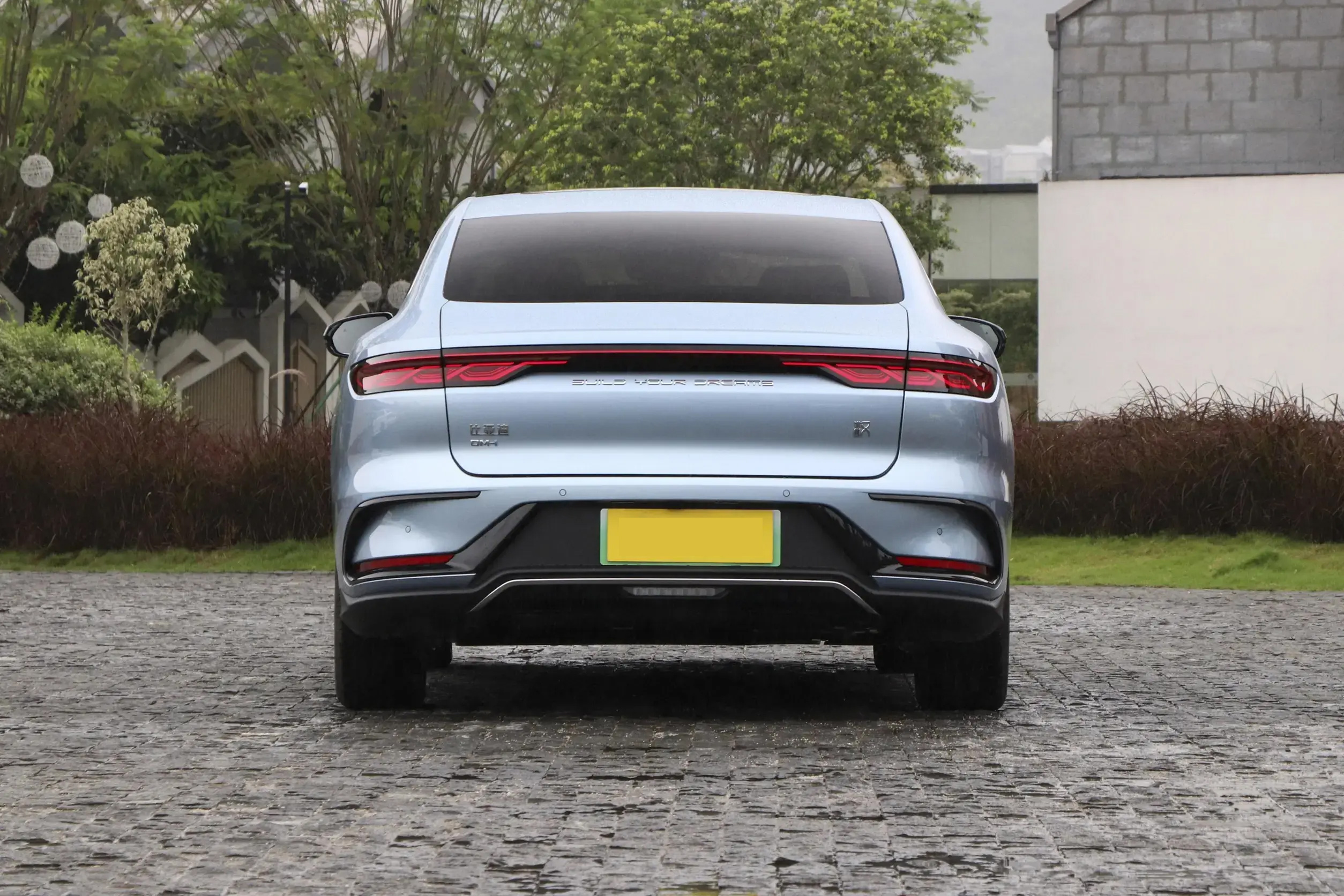

The layering of the tail is very good, the taillight is a through-type integrated style, which is very sharp after being blackened, and the bottom is also wrapped with a large area, which shows the movement and is also very practical.

BYD Han DM_5

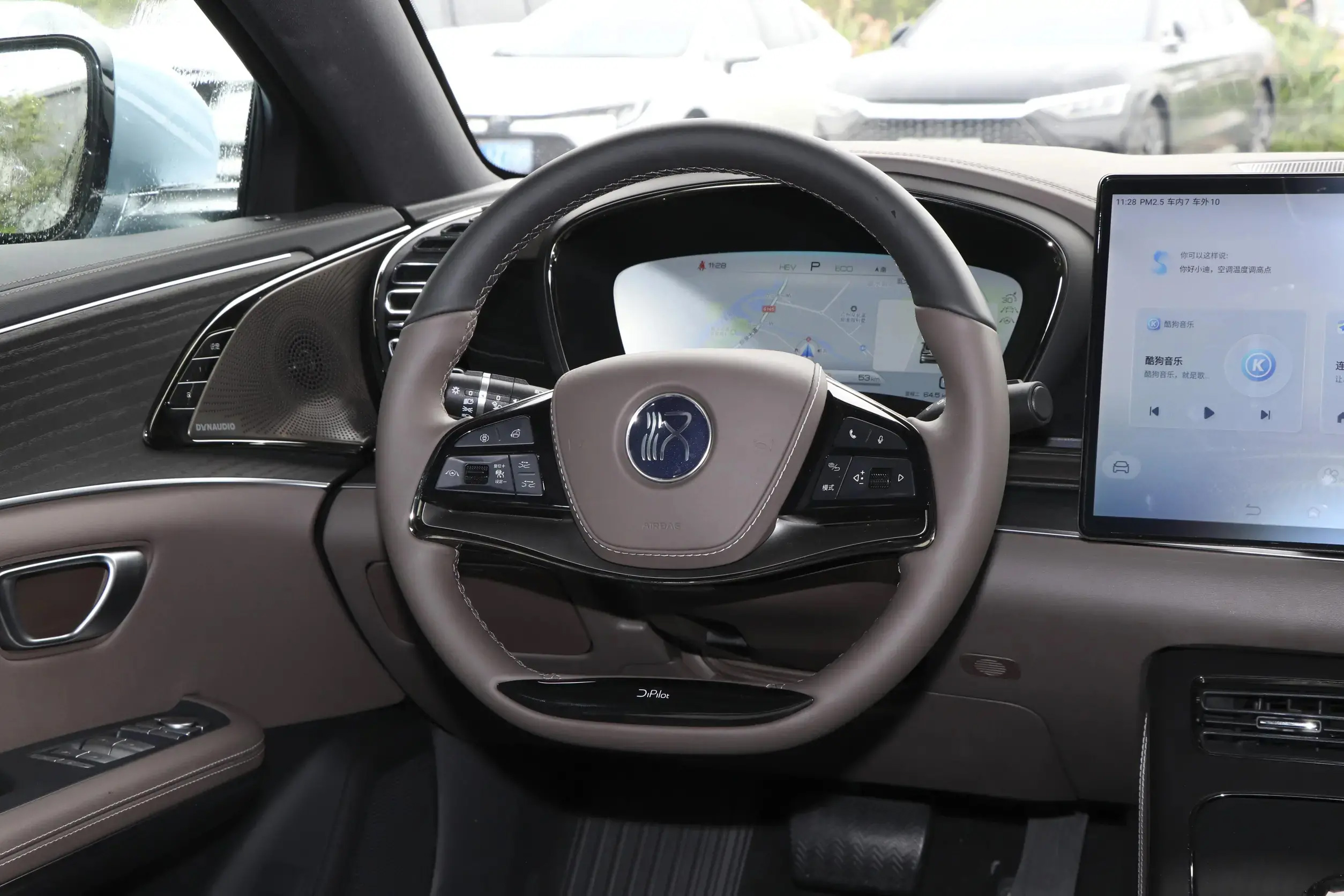

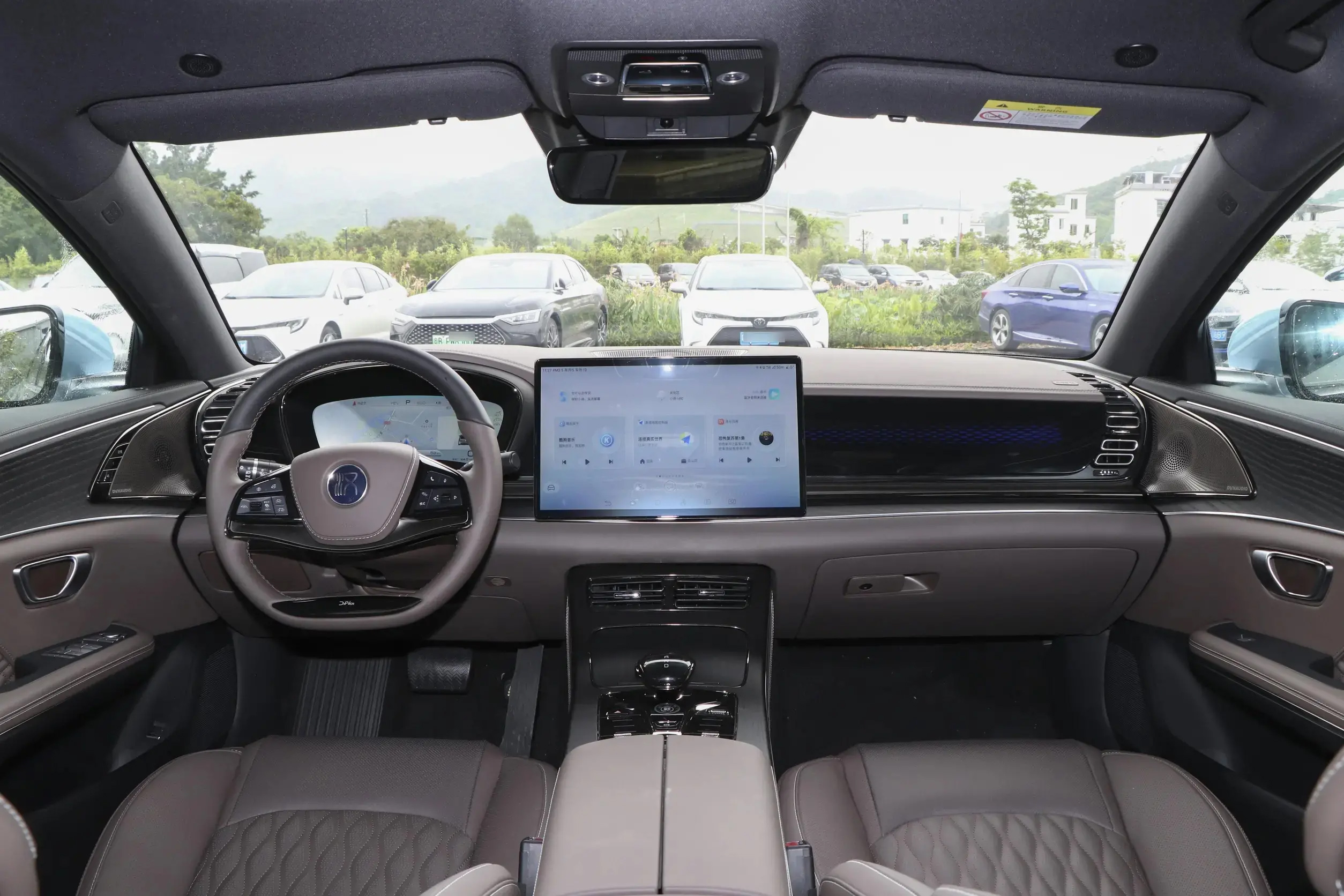

The interior is still in a classic family style, both in workmanship and materials, so that the comfort performance of the vehicle is well guaranteed. The size of the central control screen is 15.6 inches, and the 12.3-inch LCD instrument display can also highlight a good technological atmosphere. The point is that the practicality is really good. The intelligent interconnection configuration is also equipped with functions such as GPS navigation system, navigation road condition information display, road rescue service, Bluetooth/car phone, and OTA upgrade.

BYD Han DM_4

In terms of active safety configuration, it is equipped with lane departure warning, forward collision warning, rear traffic warning, reverse vehicle side warning and DOW door opening warning. At the same time, it also has functions such as active braking, merging assist, lane keeping assist system, lane centering keeping, and road traffic sign recognition. The auxiliary control configuration is also equipped with functions such as front and rear radars, 360-degree panoramic images, full-speed adaptive cruise, automatic parking, and uphill assistance. Objectively speaking, the configuration is indeed relatively good.

BYD Han DM_3

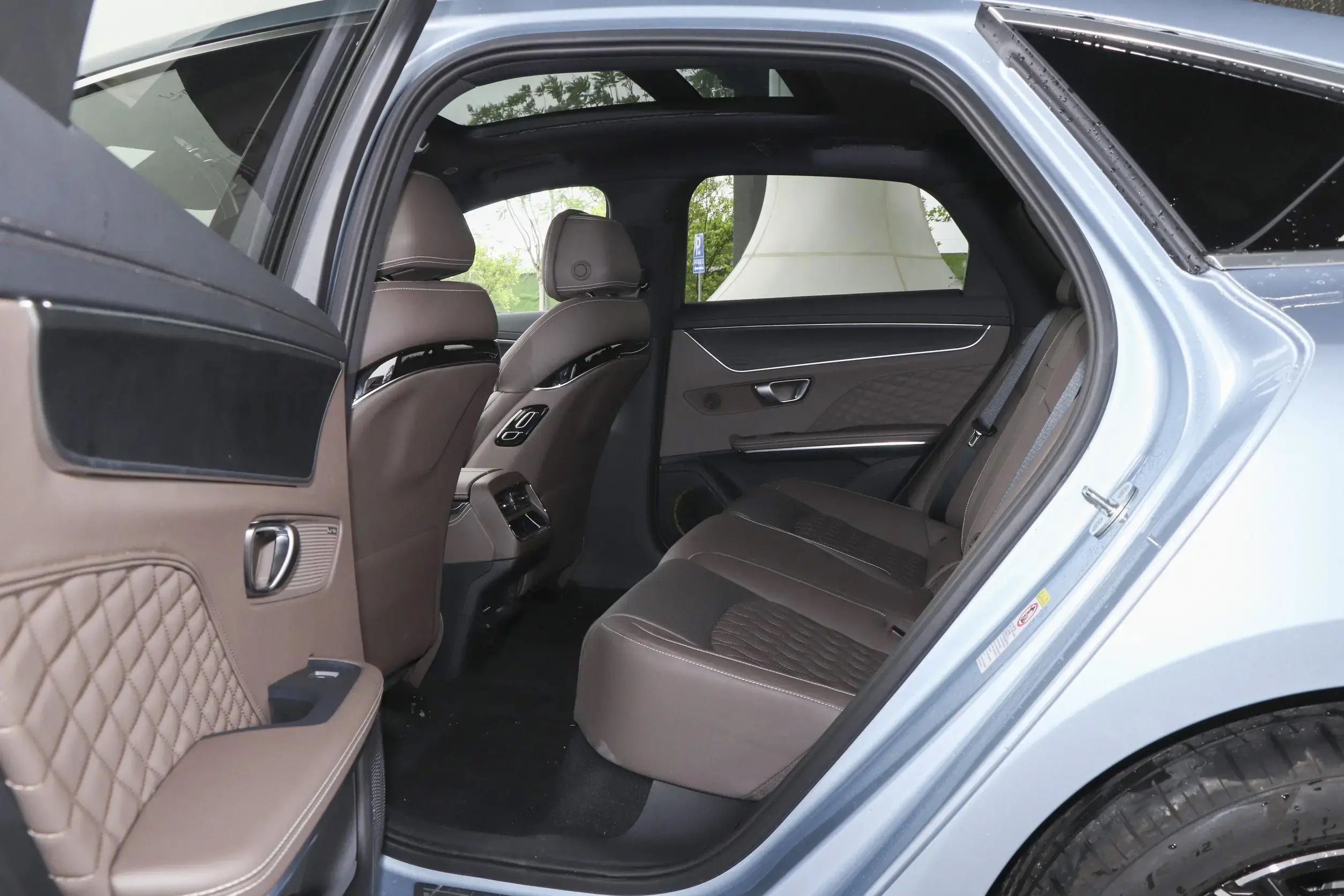

The space performance is indeed very good. According to the riding experience, the leg room and head room are sufficient, and the seat wrapping is also very good. The overall can indeed give people a relatively spacious and comfortable riding experience.

BYD Han DM_2

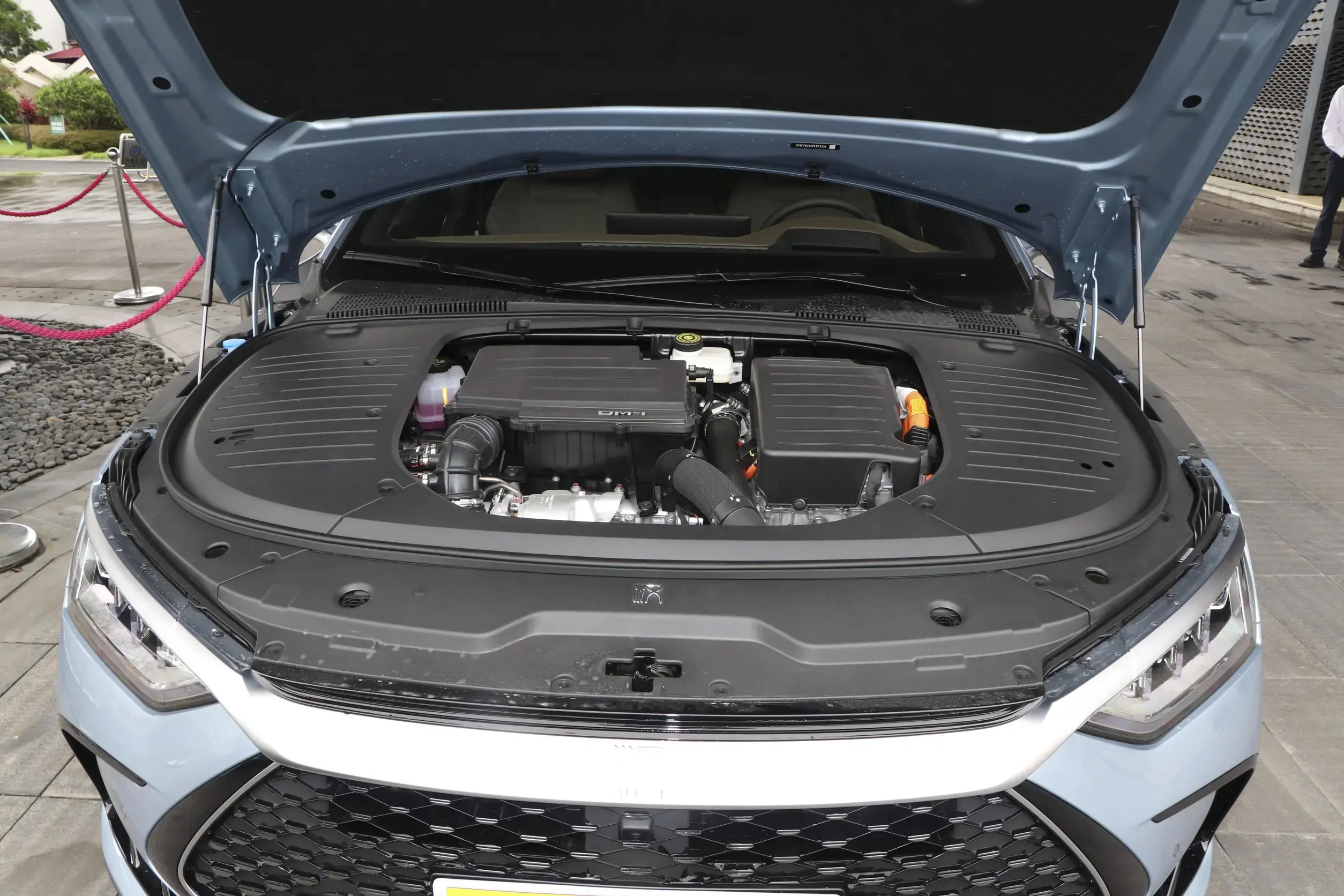

In terms of power, it is equipped with a 139 horsepower engine (plug-in hybrid), the motor can reach a maximum of 218 horsepower, matched with an E-CVT continuously variable transmission, the maximum torque of the engine is 231N m, and the maximum torque of the motor is 325N m. The official 100-kilometer acceleration time is 7.9 seconds, objectively speaking, this is indeed very mainstream.

BYD Han DM-i Specifications

Car Model BYD Han DM
2023 DM-i Champion 121KM Exclusive Edition 2023 DM-i Champion 200KM Exclusive Edition 2023 DM-i Champion 200KM Flagship Edition 2023 DM-p God of War Edition 200KM
Dimension 4975*1910*1495mm
Wheelbase 2920mm
Max Speed 185km
0-100 km/h Acceleration Time 7.9s 3.7s
Battery Capacity 18.3kWh 30.7kWh 36kWh
Battery Type Lithium Iron Phosphate Battery
Battery Technology BYD Blade Battery
Quick Charging Time Fast Charge 0.46 hours Slow Charge 2.61 hours Fast Charge 0.47 hours Slow Charge 4.4 hours Fast Charge 0.47 hours Slow Charge 5.14 hours
Pure Electric Cruising Range 121km 200km
Fuel Consumption Per 100 km 1.71L 0.74L 0.82L
Energy Consumption Per 100 km 15kWh 17.2kWh 22kWh
Displacement 1497cc(Tubro)
Engine Power 139hp/102kw
Engine Maximum Torque 231Nm
Motor Power 197hp/145kw 218hp/160kw 490hp/360kw(Double Motor)
Motor Maximum Torque 316Nm 325Nm 675Nm(Front 325Nm)(Rear 350Nm)
Number Of Seats 5
Driving System Front FWD Dual Motor 4WD(Electric 4WD)
Minimum State Of Charge Fuel Consumption 5.1L 5.3L 6.3L
Gearbox E-CVT
Front Suspension MacPherson Independent Suspension
Rear Suspension Multi-Link Independent Suspension

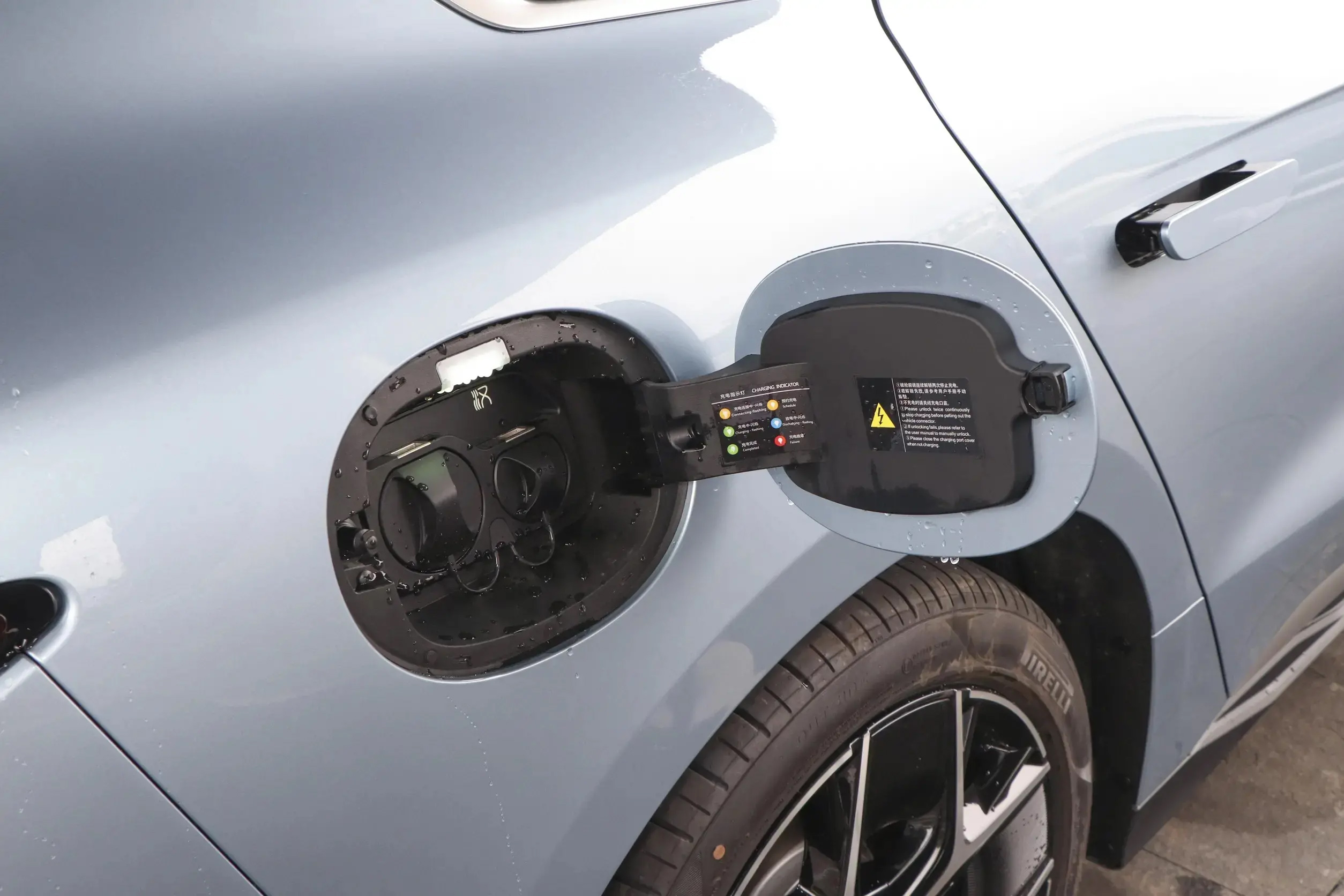

The battery capacity is 30.7kWh, and the cruising range is as shown in the figure above. Objectively speaking, it is very practical and economical. In terms of charging, the fast charging time is 0.47 hours (30% to 80%), and the slow charging time is 4.4 hours.

BYD Han DM_1


  • Previous:
  • Next:

  • Car Model BYD Han DM
    2023 DM-i Champion 121KM Elite Edition 2023 DM-i Champion 121KM Premium Edition 2023 DM-i Champion 121KM Honor Edition 2023 DM-i Champion 121KM Exclusive Edition
    Basic Information
    Manufacturer BYD
    Energy Type Plug-In Hybrid
    Motor 1.5T 139 HP L4 plug-in hybrid
    Pure Electric Cruising Range(KM) 121km
    Charging Time(Hour) Fast Charge 0.46 hours Slow Charge 2.61 hours
    Engine Maximum Power (kW) 102(139hp)
    Motor Maximum Power (kW) 145(197hp)
    Engine Maximum Torque (Nm) 231Nm
    Motor Maximum Torque (Nm) 316Nm
    LxWxH(mm) 4975*1910*1495mm
    Maximum Speed(KM/H) 185km
    Electricity Consumption Per 100km (kWh/100km) 15kWh
    Minimum State Of Charge Fuel Consumption (L/100km) 5.1L
    Body
    Wheelbase (mm) 2920
    Front Wheel Base(mm) 1640
    Rear Wheel Base(mm) 1640
    Number Of Doors (pcs) 4
    Number Of Seats (pcs) 5
    Curb Weight (kg) 1870
    Full Load Mass(kg) 2245
    Fuel tank capacity (L) 50
    Drag Coefficient (Cd) None
    Engine
    Engine Model BYD476ZQC
    Displacement (mL) 1497
    Displacement (L) 1.5
    Air Intake Form Turbocharged
    Cylinder Arrangement L
    Number Of Cylinders (pcs) 4
    Number Of Valves Per Cylinder (pcs) 4
    Maximum Horsepower (Ps) 139
    Maximum Power (kW) 102
    Maximum Torque (Nm) 231
    Engine Specific Technology VVT
    Fuel Form Plug-In Hybrid
    Fuel Grade 92#
    Fuel Supply Method In-Cylinder Direct Injection
    Electric Motor
    Motor Description Plug-In Hybrid 197 hp
    Motor Type Permanent magnet/synchronous
    Total Motor Power (kW) 145
    Motor Total Horsepower (Ps) 197
    Motor Total Torque (Nm) 316
    Front Motor Maximum Power (kW) 145
    Front Motor Maximum Torque (Nm) 316
    Rear Motor Maximum Power (kW) None
    Rear Motor Maximum Torque (Nm) None
    Drive Motor Number Single Motor
    Motor Layout Front
    Battery Charging
    Battery Type Lithium Iron Phosphate Battery
    Battery Brand BYD
    Battery Technology BYD Blade Battery
    Battery Capacity(kWh) 18.3kWh
    Battery Charging Fast Charge 0.46 hours Slow Charge 2.61 hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Gearbox
    Gearbox Description E-CVT
    Gears Continuously Variable Speed
    Gearbox Type Electronic Continuously Variable Transmission (E-CVT)
    Chassis/Steering
    Drive Mode Front FWD
    Four-Wheel Drive Type None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Multi-Link Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Solid Disc
    Front Tire Size 245/50 R18 245/45 R19
    Rear Tire Size 245/50 R18 245/45 R19





    Car Model BYD Han DM
    2023 DM-i Champion 200KM Exclusive Edition 2023 DM-i Champion 200KM Flagship Edition 2023 DM-p God of War Edition 200KM 2022 DM-i 121KM Premium Edition
    Basic Information
    Manufacturer BYD
    Energy Type Plug-In Hybrid
    Motor 1.5T 139 HP L4 plug-in hybrid
    Pure Electric Cruising Range(KM) 200km 121km
    Charging Time(Hour) Fast Charge 0.47 hours Slow Charge 4.4 hours Fast Charge 0.47 hours Slow Charge 5.14 hours Fast Charge 0.46 hours Slow Charge 2.61 hours
    Engine Maximum Power (kW) 102(139hp)
    Motor Maximum Power (kW) 160(218hp) 360(490hp) 145(197hp)
    Engine Maximum Torque (Nm) 231Nm
    Motor Maximum Torque (Nm) 325Nm 316Nm
    LxWxH(mm) 4975*1910*1495mm
    Maximum Speed(KM/H) 185km
    Electricity Consumption Per 100km (kWh/100km) 17.2kWh 22kWh 15kWh
    Minimum State Of Charge Fuel Consumption (L/100km) 5.3L 6.3L 4.2L
    Body
    Wheelbase (mm) 2920
    Front Wheel Base(mm) 1640
    Rear Wheel Base(mm) 1640
    Number Of Doors (pcs) 4
    Number Of Seats (pcs) 5
    Curb Weight (kg) 2010 2200 1870
    Full Load Mass(kg) 2385 2575 2245
    Fuel tank capacity (L) 50
    Drag Coefficient (Cd) None
    Engine
    Engine Model BYD476ZQC
    Displacement (mL) 1497
    Displacement (L) 1.5
    Air Intake Form Turbocharged
    Cylinder Arrangement L
    Number Of Cylinders (pcs) 4
    Number Of Valves Per Cylinder (pcs) 4
    Maximum Horsepower (Ps) 139
    Maximum Power (kW) 102
    Maximum Torque (Nm) 231
    Engine Specific Technology VVT
    Fuel Form Plug-In Hybrid
    Fuel Grade 92#
    Fuel Supply Method In-Cylinder Direct Injection
    Electric Motor
    Motor Description Plug-In Hybrid 218 hp Plug-In Hybrid 490 hp Plug-In Hybrid 197 hp
    Motor Type Permanent magnet/synchronous
    Total Motor Power (kW) 160 360 145
    Motor Total Horsepower (Ps) 218 490 197
    Motor Total Torque (Nm) 325 675 316
    Front Motor Maximum Power (kW) 160 145
    Front Motor Maximum Torque (Nm) 325 316
    Rear Motor Maximum Power (kW) None 200 None
    Rear Motor Maximum Torque (Nm) None 350 None
    Drive Motor Number Single Motor Double Motor Single Motor
    Motor Layout Front Front + Rear Front
    Battery Charging
    Battery Type Lithium Iron Phosphate Battery
    Battery Brand BYD
    Battery Technology BYD Blade Battery
    Battery Capacity(kWh) 30.7kWh 36kWh 18.3kWh
    Battery Charging Fast Charge 0.47 hours Slow Charge 4.4 hours Fast Charge 0.47 hours Slow Charge 5.14 hours Fast Charge 0.46 hours Slow Charge 2.61 hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Gearbox
    Gearbox Description E-CVT
    Gears Continuously Variable Speed
    Gearbox Type Electronic Continuously Variable Transmission (E-CVT)
    Chassis/Steering
    Drive Mode Front FWD Front 4WD Front FWD
    Four-Wheel Drive Type None Electric 4WD None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Multi-Link Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Solid Disc
    Front Tire Size 245/45 R19
    Rear Tire Size 245/45 R19





    Car Model BYD Han DM
    2022 DM-i 121KM Honor Edition 2022 DM-i 121KM Exclusive Edition 2022 DM-i 242KM Flagship Edition 2022 DM-p 202KM 4WD Flagship Edition
    Basic Information
    Manufacturer BYD
    Energy Type Plug-In Hybrid
    Motor 1.5T 139 HP L4 plug-in hybrid
    Pure Electric Cruising Range(KM) 121km 242km
    Charging Time(Hour) Fast Charge 0.46 hours Slow Charge 2.61 hours Fast Charge 0.47 hours Slow Charge 5.36 hours
    Engine Maximum Power (kW) 102(139hp)
    Motor Maximum Power (kW) 145(197hp) 160(218hp) 360(490hp)
    Engine Maximum Torque (Nm) 231Nm
    Motor Maximum Torque (Nm) 316Nm 325Nm
    LxWxH(mm) 4975*1910*1495mm
    Maximum Speed(KM/H) 185km
    Electricity Consumption Per 100km (kWh/100km) 15kWh 19.1kWh 22kWh
    Minimum State Of Charge Fuel Consumption (L/100km) 4.2L 4.5L 5.2L
    Body
    Wheelbase (mm) 2920
    Front Wheel Base(mm) 1640
    Rear Wheel Base(mm) 1640
    Number Of Doors (pcs) 4
    Number Of Seats (pcs) 5
    Curb Weight (kg) 1870 2050 2200
    Full Load Mass(kg) 2245 2575
    Fuel tank capacity (L) 50
    Drag Coefficient (Cd) None
    Engine
    Engine Model BYD476ZQC
    Displacement (mL) 1497
    Displacement (L) 1.5
    Air Intake Form Turbocharged
    Cylinder Arrangement L
    Number Of Cylinders (pcs) 4
    Number Of Valves Per Cylinder (pcs) 4
    Maximum Horsepower (Ps) 139
    Maximum Power (kW) 102
    Maximum Torque (Nm) 231
    Engine Specific Technology VVT
    Fuel Form Plug-In Hybrid
    Fuel Grade 92#
    Fuel Supply Method In-Cylinder Direct Injection
    Electric Motor
    Motor Description Plug-In Hybrid 197 hp Plug-In Hybrid 218 hp Plug-In Hybrid 490 hp
    Motor Type Permanent magnet/synchronous
    Total Motor Power (kW) 145 160 360
    Motor Total Horsepower (Ps) 197 218 490
    Motor Total Torque (Nm) 316 325 675
    Front Motor Maximum Power (kW) 145 160
    Front Motor Maximum Torque (Nm) 316 325
    Rear Motor Maximum Power (kW) None 200
    Rear Motor Maximum Torque (Nm) None 350
    Drive Motor Number Single Motor Double Motor
    Motor Layout Front Front + Rear
    Battery Charging
    Battery Type Lithium Iron Phosphate Battery
    Battery Brand BYD
    Battery Technology BYD Blade Battery
    Battery Capacity(kWh) 18.3kWh 37.5kWh
    Battery Charging Fast Charge 0.46 hours Slow Charge 2.61 hours Fast Charge 0.47 hours Slow Charge 5.36 hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Gearbox
    Gearbox Description E-CVT
    Gears Continuously Variable Speed
    Gearbox Type Electronic Continuously Variable Transmission (E-CVT)
    Chassis/Steering
    Drive Mode Front FWD Front 4WD
    Four-Wheel Drive Type None Electric 4WD
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Multi-Link Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Solid Disc
    Front Tire Size 245/45 R19
    Rear Tire Size 245/45 R19
