GAC AION S 2024 EV Sedan

With the change of the times, everyone’s ideas are also changing. In the past, people didn’t care about the appearance, but more about the inner and practical pursuit. Now people pay more attention to the appearance. The same is true in terms of cars. Whether the vehicle looks good or not is the key to consumers’ choice. I recommend a model with both appearance and strength. It is AION S 2023


Product Detail

PRODUCT SPECIFICATIONS

ABOUT US

Product Tags

With the change of the times, everyone's ideas are also changing. In the past, people didn't care about the appearance, but more about the inner and practical pursuit. Now people pay more attention to the appearance. The same is true for automobiles. Whether the vehicle looks good or not is the key to consumers’ choice. I recommend a model with both appearance and strength. It is AION S 2023 Plus 70 Enjoy Edition Lithium Iron Phosphate.

AION S_12

AION S_11 AION S_10

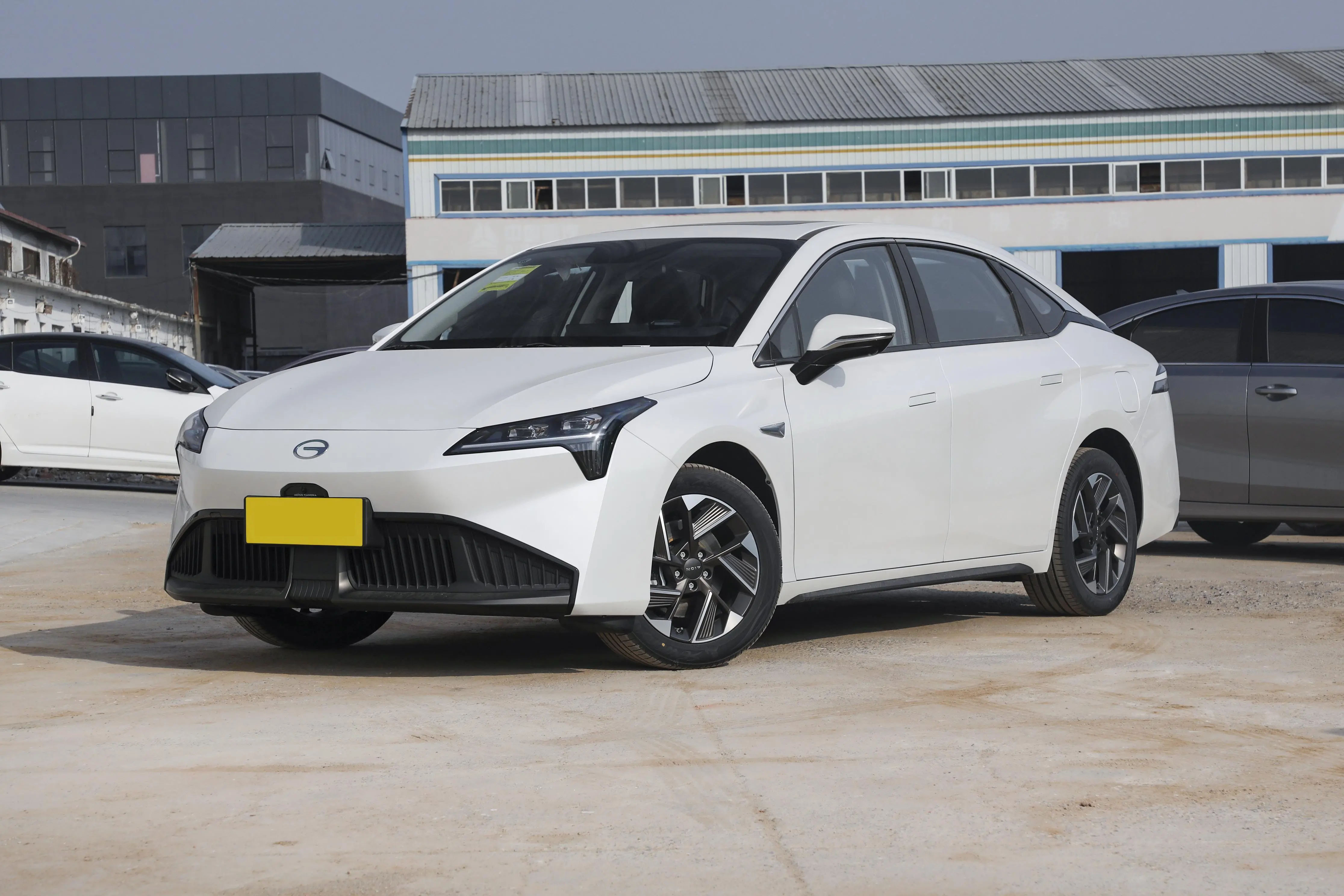

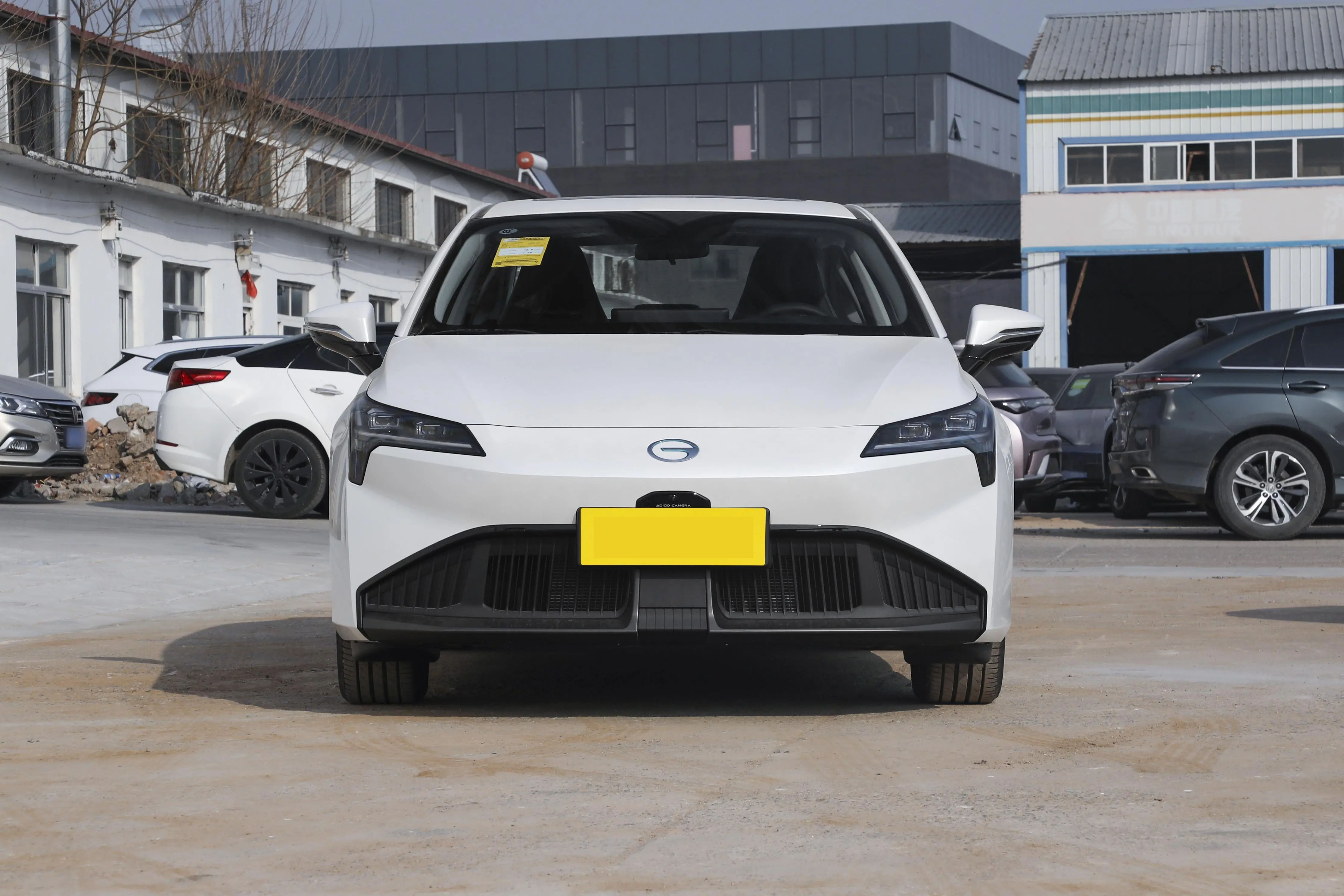

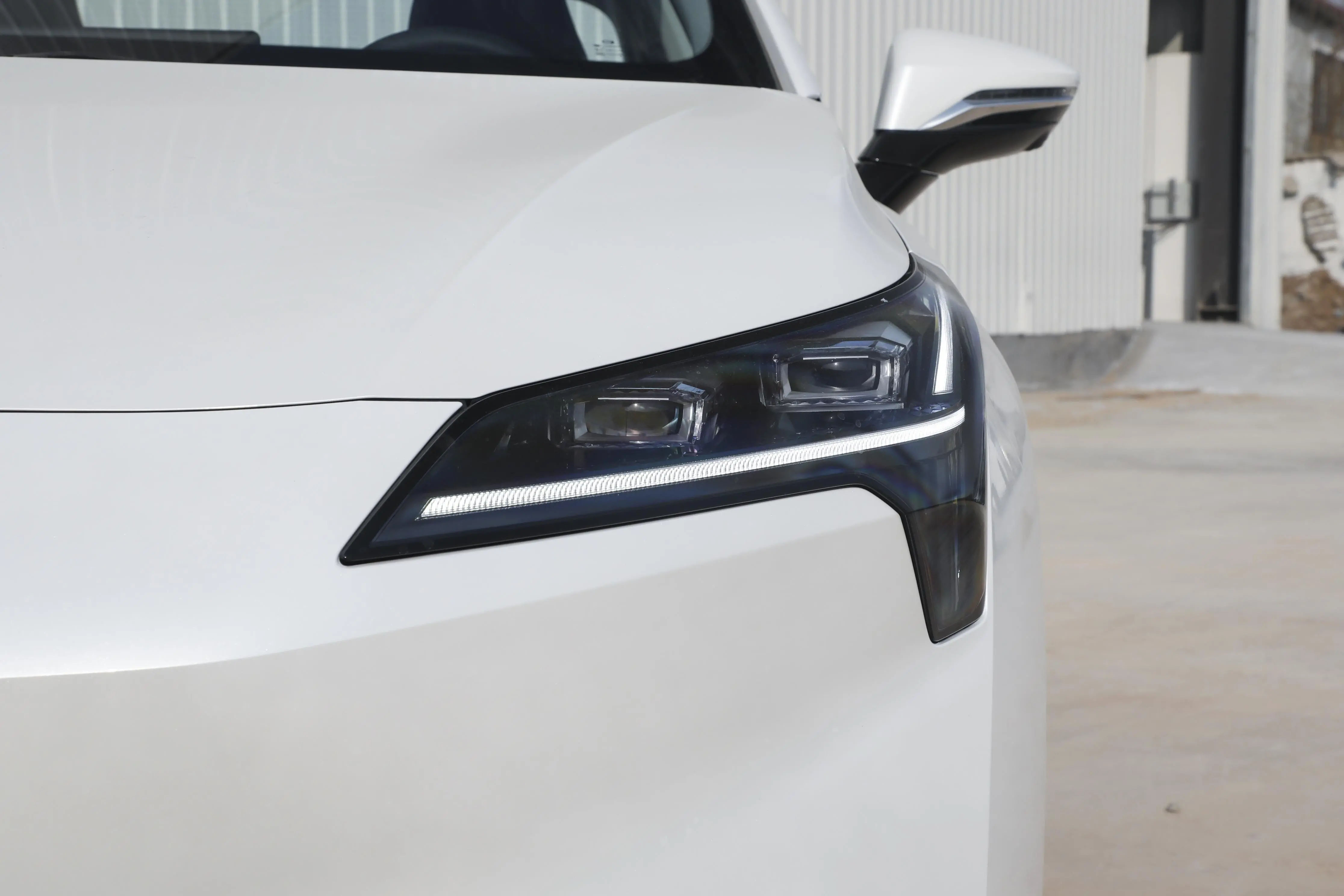

In terms of appearance, the front face adopts the same closed design as other electric models. The lower air intake grille is larger in size, the surface is decorated vertically and blackened, and the LED headlights on both sides are designed in a "T" shape, which is very individual, and supports daytime running lights and height adjustment of headlights in function.

AION S_0 AION S_9

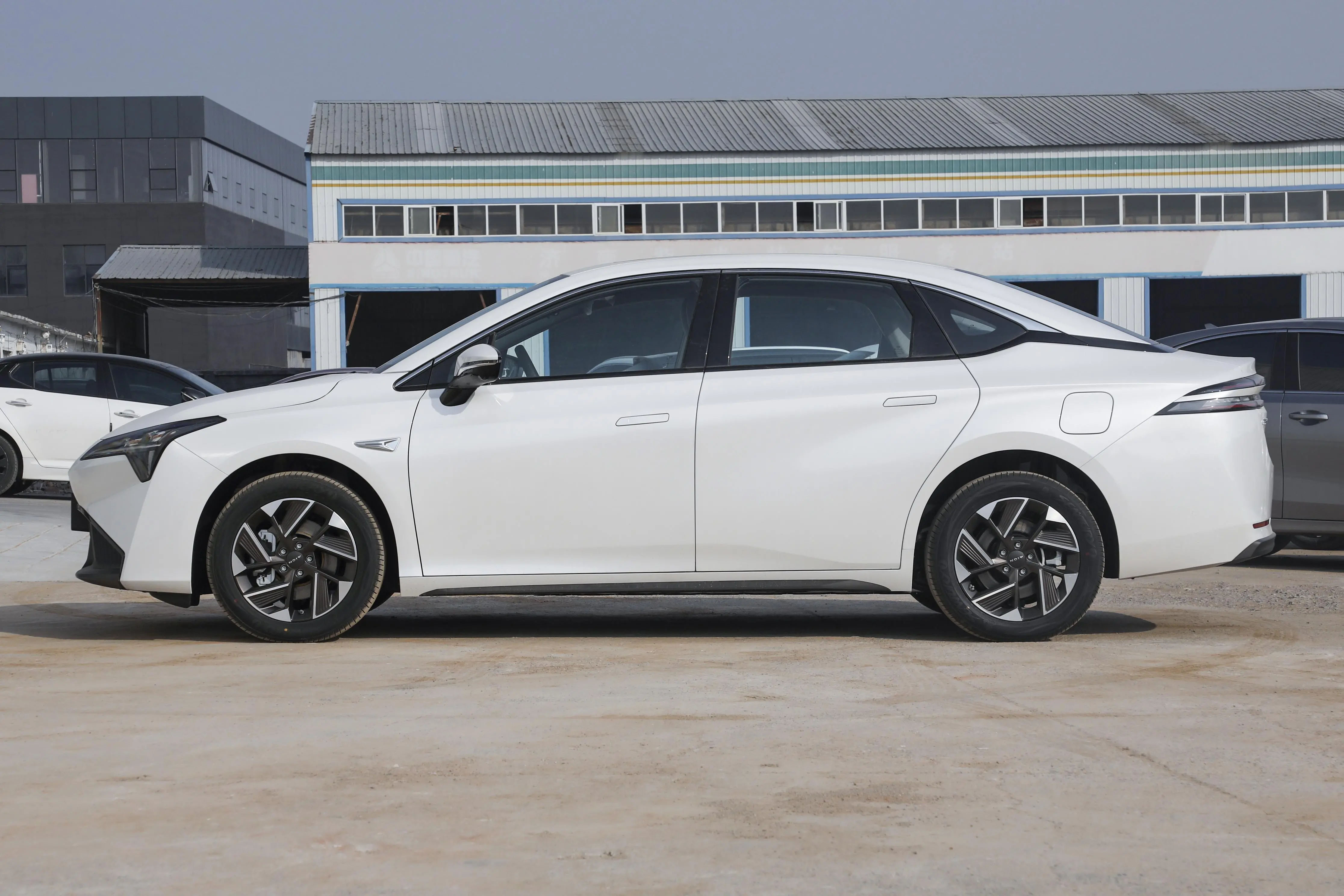

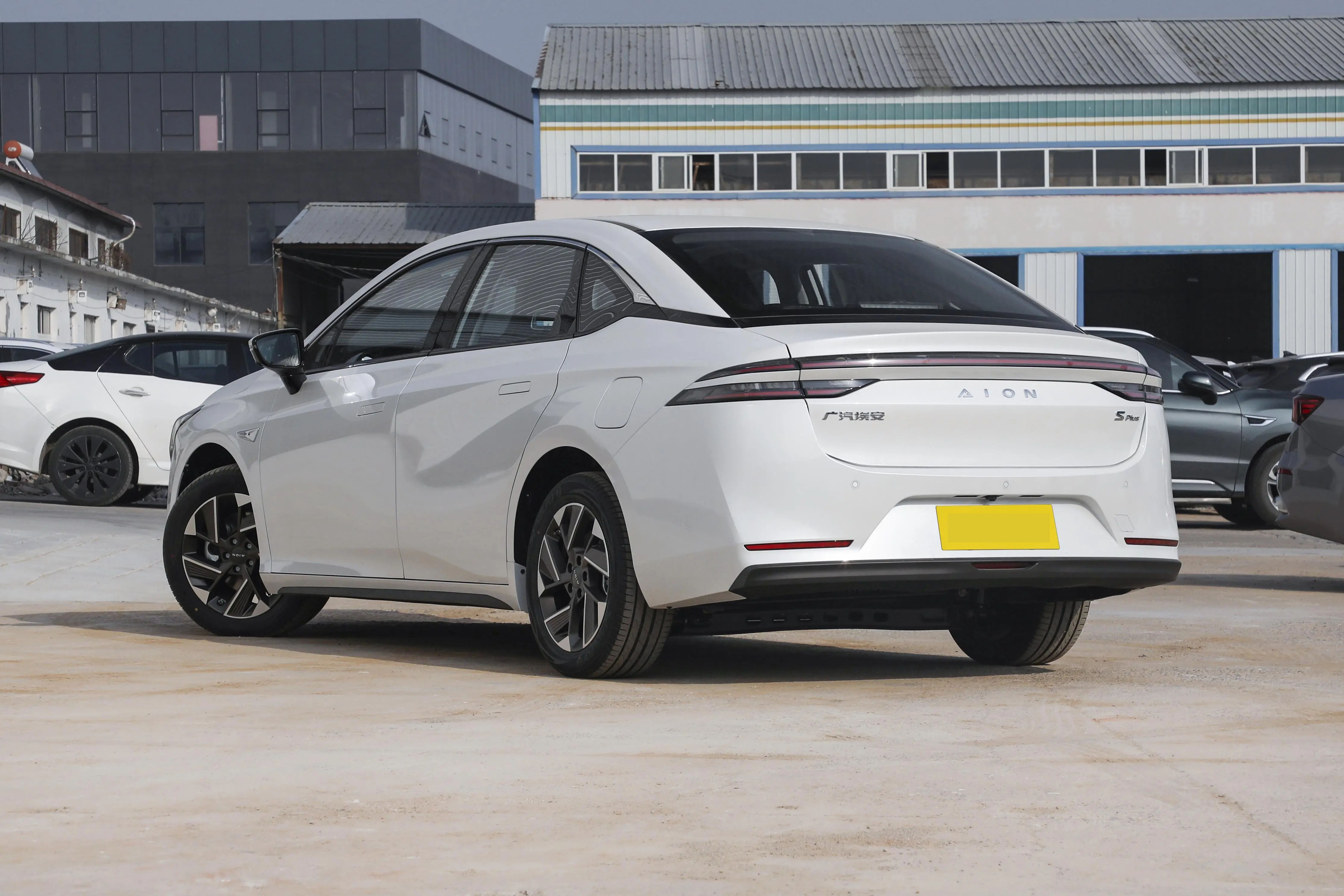

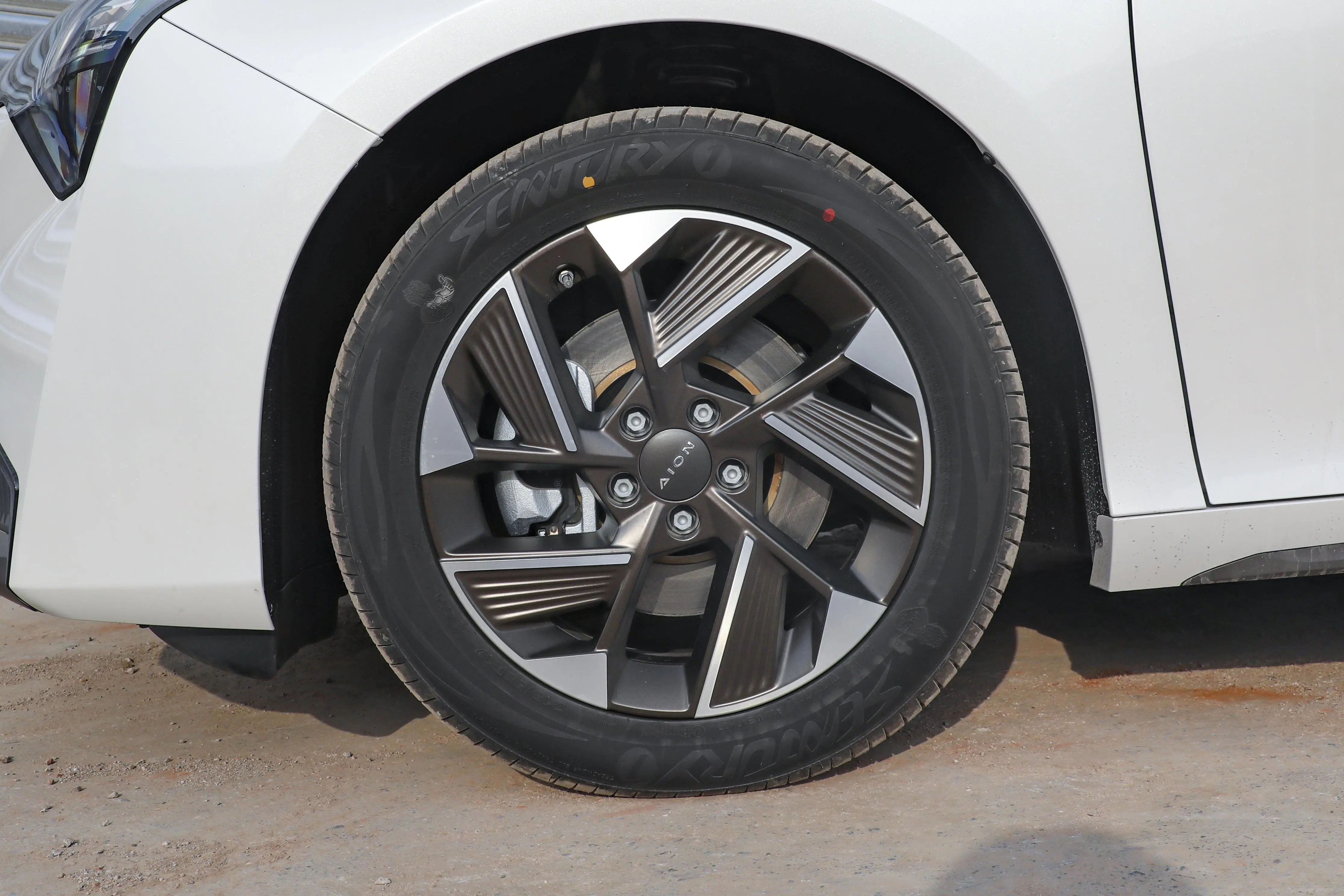

Coming to the side of the car, the body size of the car is 4810/1880/1515mm in length, width and height, and the wheelbase is 2750mm. It is positioned as a compact car. The body line design is relatively smooth, the roof has a more obvious slip-back shape, and has a good sense of movement. The windows are surrounded by black edging, which enhances the body's sense of refinement. The door handle adopts a hidden design, and the exterior rearview mirror supports electric adjustment. The size of the front and rear tires are both 215/55 R17.

AION S_8 AION S_7 AION S_6

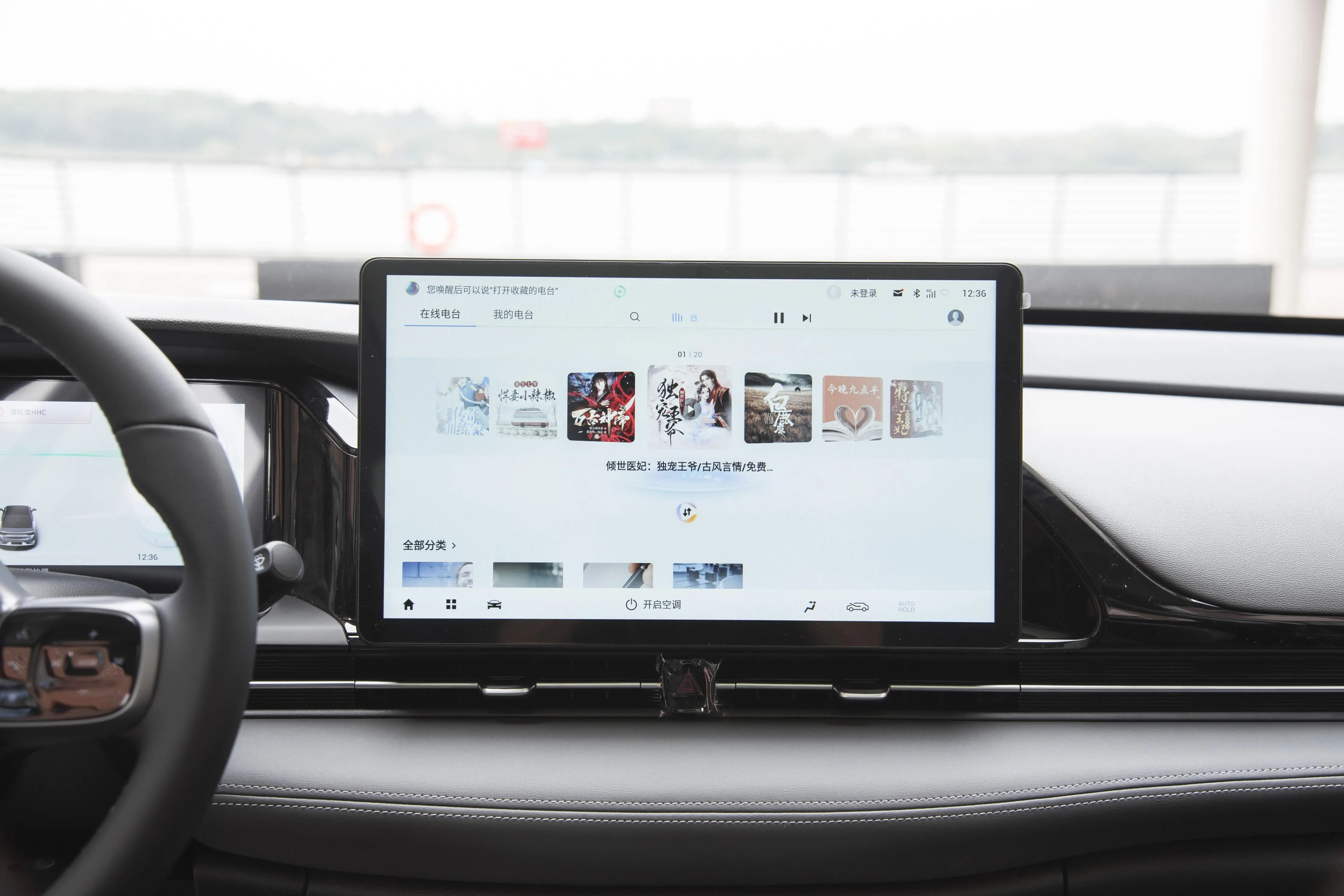

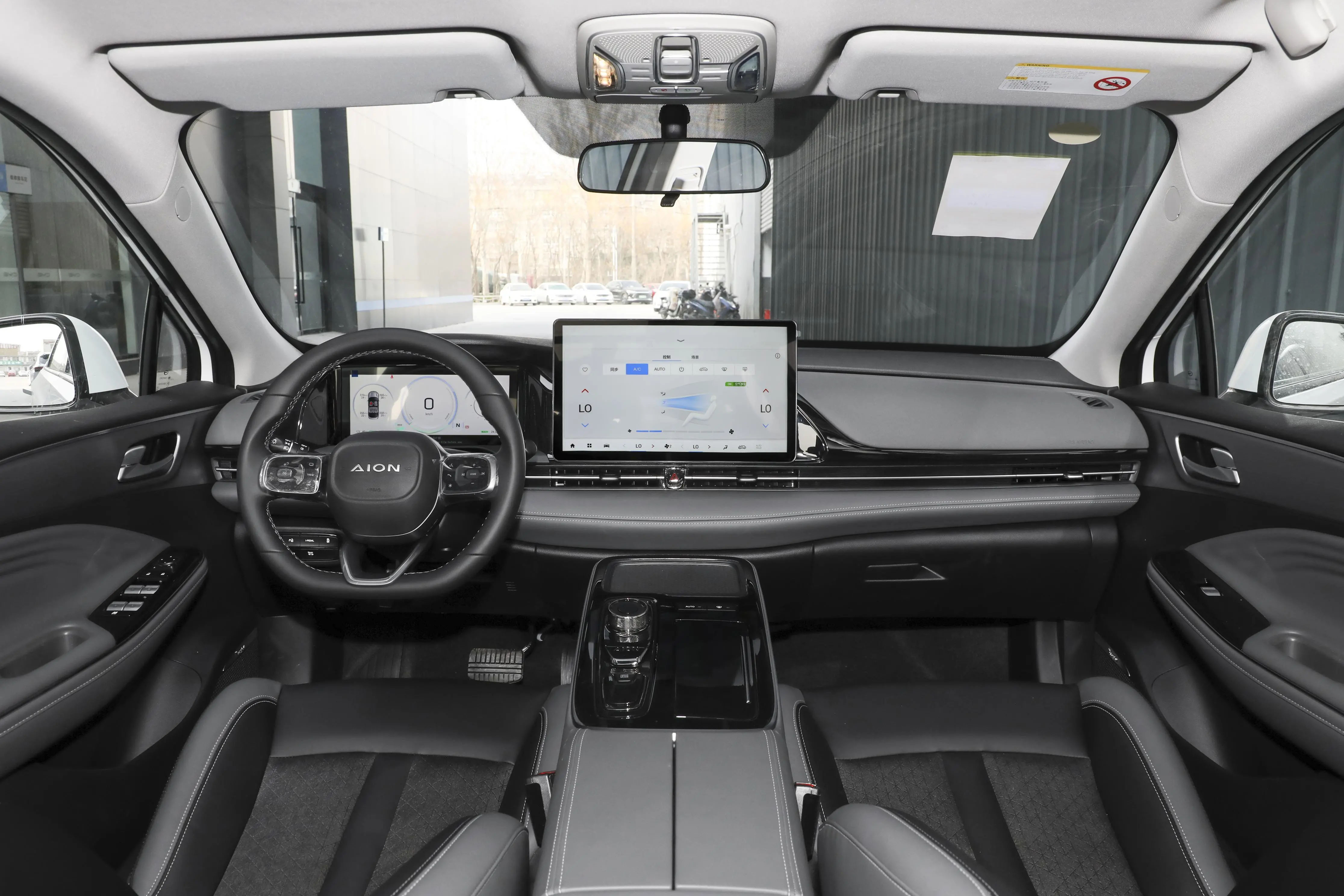

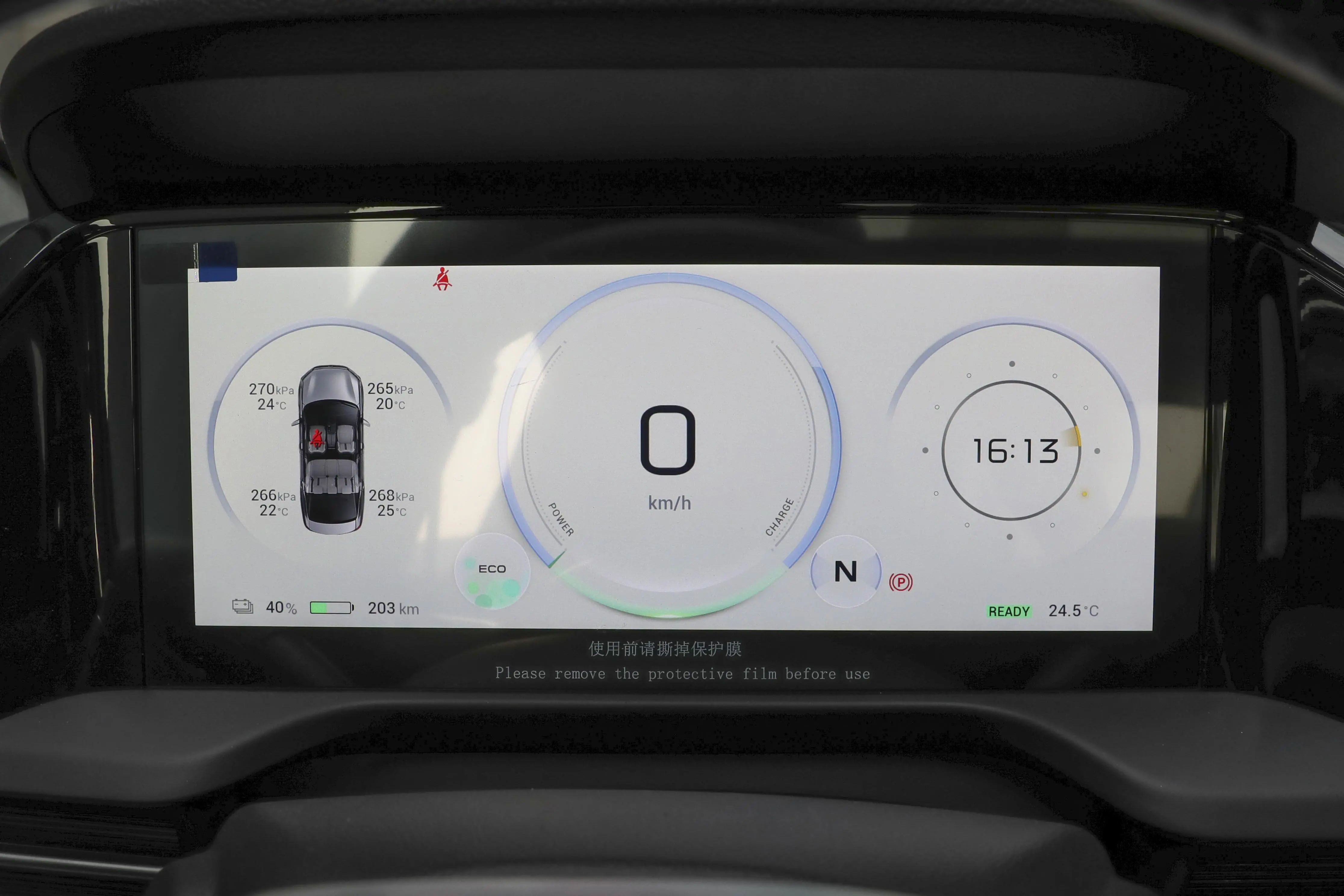

Coming to the car, the interior color selection adopts pure black series design, which is classic and fashionable. The center console is wrapped with a lot of soft materials and has a rich sense of layering. The middle part is a through-type air-conditioning outlet. The three-spoke multifunctional steering wheel is wrapped in leather material and supports up and down adjustment. The size of the LCD instrument panel is 10.25 inches. The size of the suspended central control screen is 14.6 inches, and the car is equipped with a new generation of ADiGO 4.0 smart driving interconnection ecosystem and Renesas M3 car smart chip. In terms of functions, it provides reversing image, GPS navigation system, Bluetooth/car phone, mobile phone interconnection mapping, Internet of Vehicles, OTA upgrade, voice recognition control, partition wake-up of the main and co-pilot positions, etc.

AION S_5 AION S_4 AION S_3

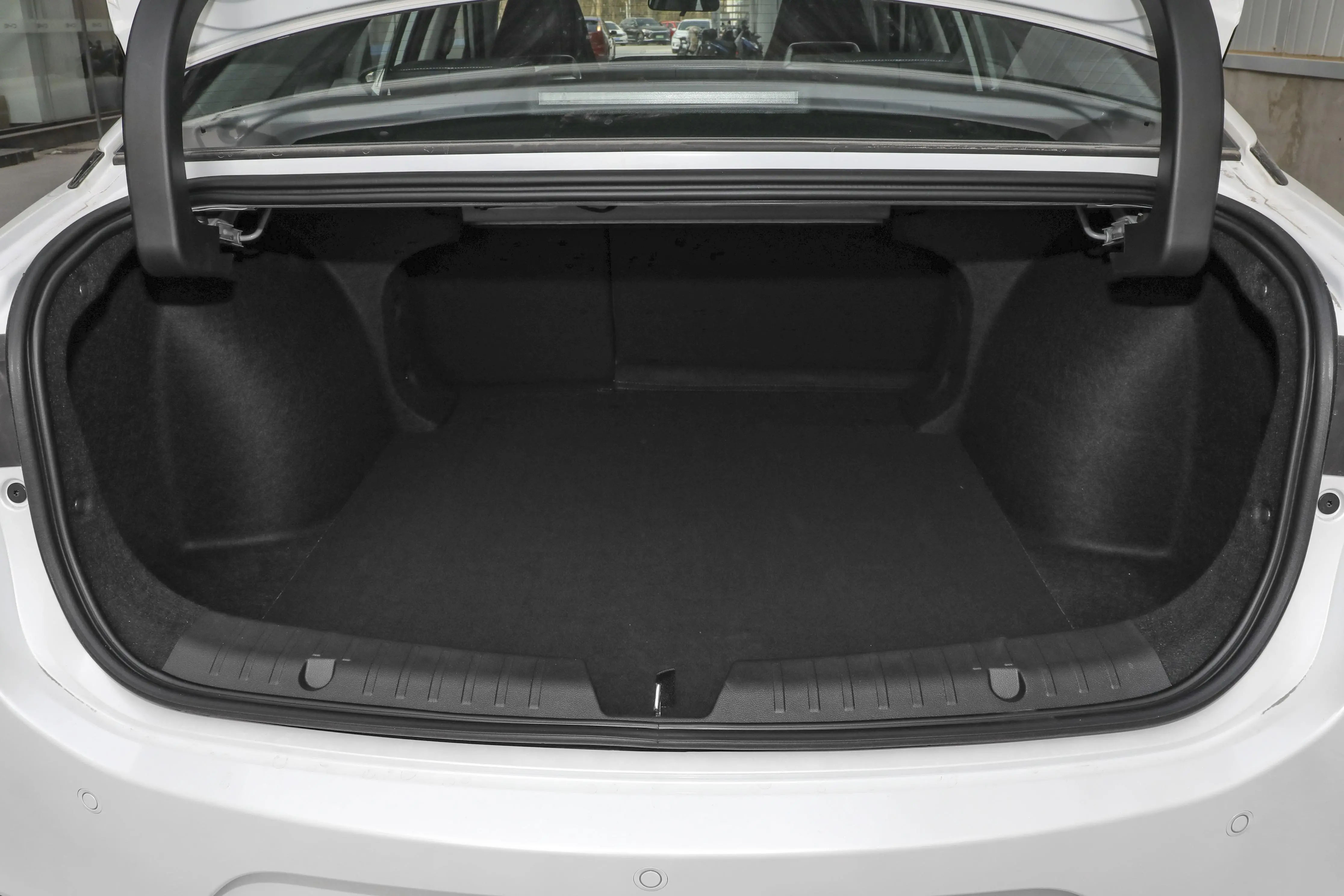

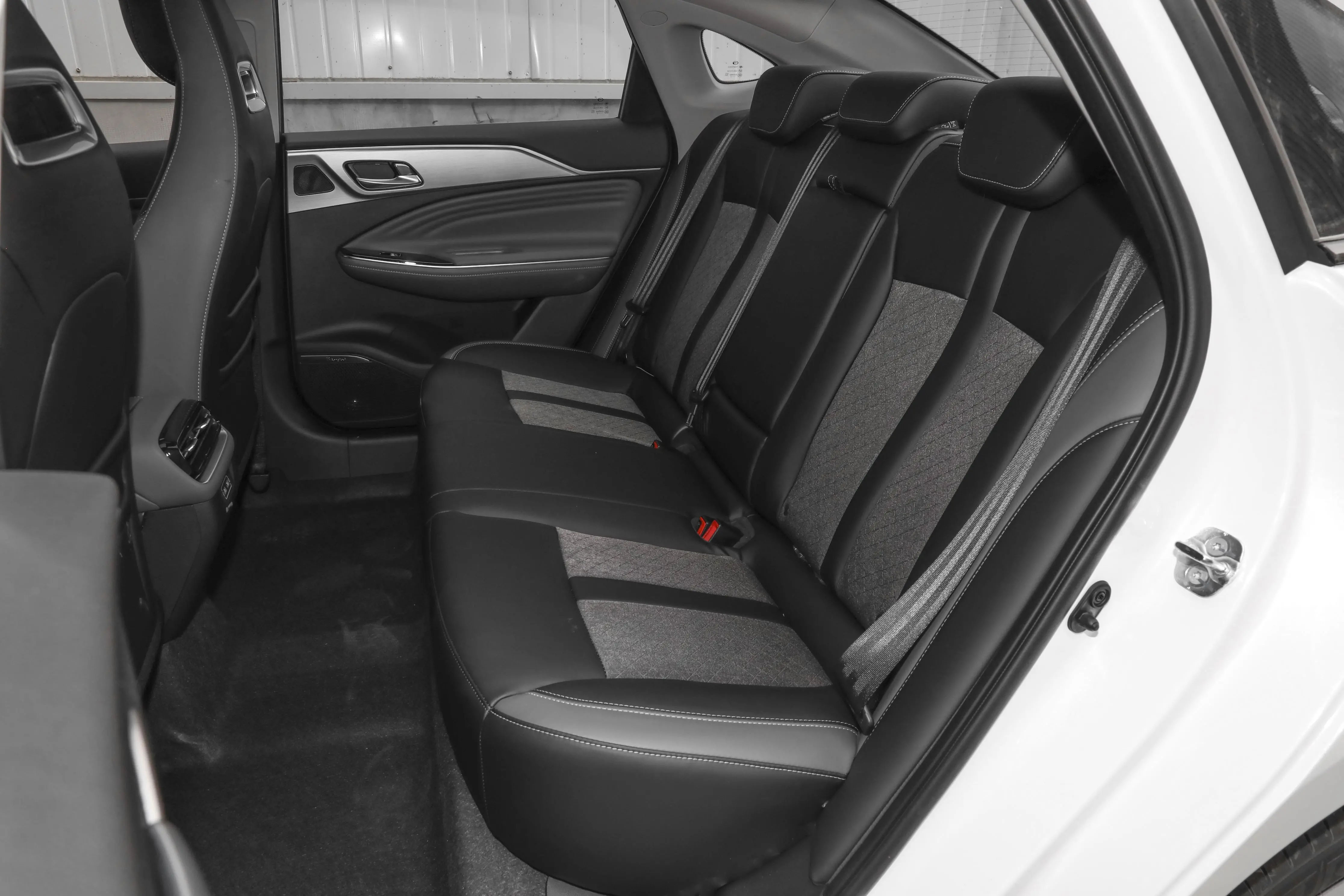

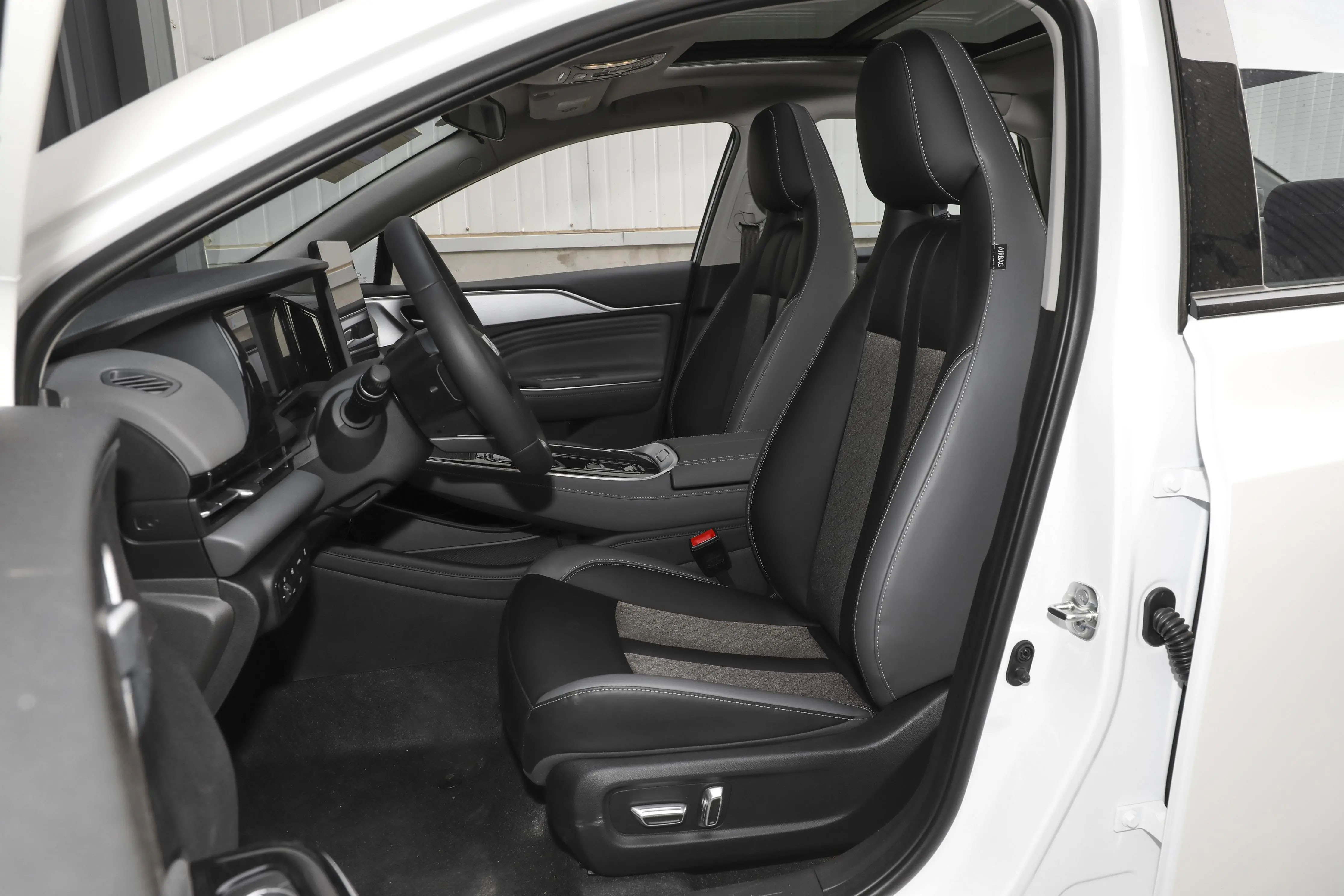

The sports-style seats are mixed with leather and fabric, the main driver's seat supports electric adjustment, the rear seats support a 40:60 ratio, and the regular volume of the luggage compartment is 453L.

AION S_2

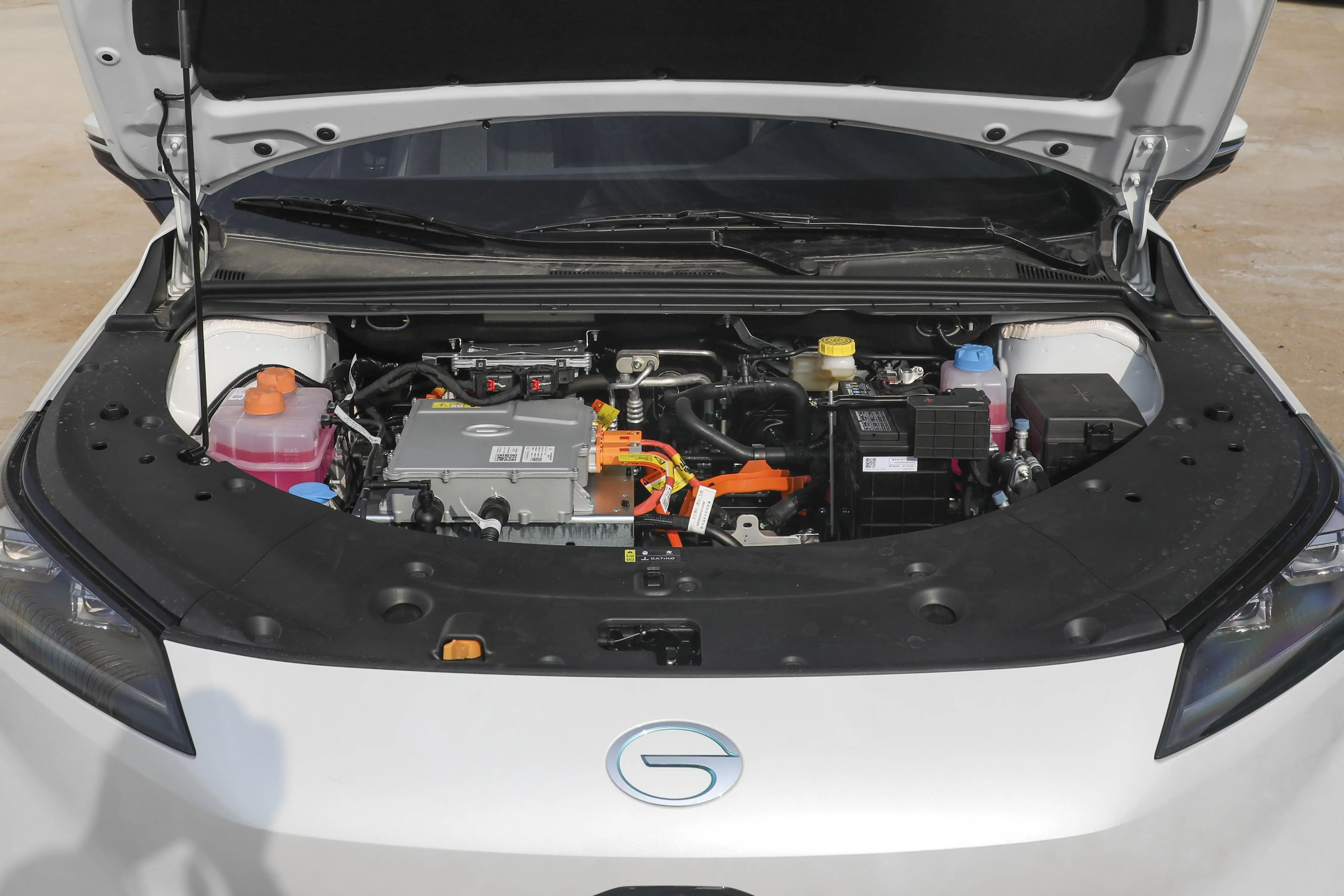

In terms of power, the car adopts front-wheel drive, permanent magnet/synchronous type, the total power of the electric motor is 150kW, the total horsepower is 204Ps, and the total torque is 225N m. The transmission is matched with the single-speed gearbox of the electric vehicle. The lithium iron phosphate battery used has a battery capacity of 59.4kWh, a power consumption of 12.9kWh per 100 kilometers, and a fast charging interface (30%-80%). Under CLTC working conditions, the pure electric range is 510km.

AION S Specifications

Car Model 2023 Plus 70 Smart Edition Lithium Iron Phosphate 2023 Plus 70 Smart Edition Ternary Lithium 2023 Plus 70 Smart Driving Edition Ternary Lithium 2023 Plus 80 Technology Edition Ternary Lithium
Dimension 4810*1880*1515mm 4810*1880*1515mm 4810*1880*1515mm 4810*1880*1515mm
Wheelbase 2750mm
Max Speed 160km
0-100 km/h Acceleration Time None
Battery Capacity 59.4kWh 58.8kWh 58.8kWh 68kWh
Battery Type Lithium Iron Phosphate Ternary Lithium Battery Ternary Lithium Battery Ternary Lithium Battery
Battery Technology EVE/CALB CALB Magazine battery CALB Magazine battery Farasis Magazine battery
Quick Charging Time None Fast Charge 0.7 Hours Slow Charge 10 Hours Fast Charge 0.75 Hours Slow Charge 10 Hours
Energy Consumption Per 100 km 12.9kWh 12.9kWh 12.9kWh 12.8kWh
Power 204hp/150kw 204hp/150kw 204hp/150kw 204hp/150kw
Maximum Torque 225Nm
Number of Seats 5
Driving System Front FWD
Distance Range 510km 510km 510km 610km
Front Suspension MacPherson Independent Suspension
Rear Suspension Trailing Arm Torsion Beam Non-Independent Suspension

AION S_1

AION S has a relatively novel design in terms of appearance. The overall appearance is more dynamic, and the appearance is more attractive to young people. The internal configuration is reliable, the performance is high, and the owner is more comfortable and convenient when using the car.


  • Previous:
  • Next:

  • Car Model AION S
    2024 Charm 580 2024 Plus 70 Enjoy Edition Lithium Iron Phosphate 2024 Plus 70 Enjoy Edition Ternary Lithium 2024 Plus 70 Smart Edition Lithium Iron Phosphate
    Basic Information
    Manufacturer GAC Aion New Energy
    Energy Type Pure Electric
    Electric Motor 136hp 204hp
    Pure Electric Cruising Range(KM) 480km 510km
    Charging Time(Hour) Fast Charge 0.78 Hours Slow Charge 10 Hours None Fast Charge 0.7 Hours Slow Charge 10 Hours None
    Maximum Power(kW) 100(136hp) 150(204hp)
    Maximum Torque (Nm) 225Nm
    LxWxH(mm) 4768x1880x1545mm 4810x1880x1515mm
    Maximum Speed(KM/H) 130km 160km
    Electricity Consumption Per 100km (kWh/100km) 12.5kWh 12.9kWh
    Body
    Wheelbase (mm) 2750
    Front Wheel Base(mm) 1600
    Rear Wheel Base(mm) 1602
    Number Of Doors (pcs) 4
    Number Of Seats (pcs) 5
    Curb Weight (kg) 1665 1730 1660 1730
    Full Load Mass(kg) 2135 2125 2135
    Drag Coefficient (Cd) 0.245 0.211
    Electric Motor
    Motor Description Pure Electric 136 HP Pure Electric 204 HP
    Motor Type Permanent Magnet/Synchronous
    Total Motor Power (kW) 100 150
    Motor Total Horsepower (Ps) 136 204
    Motor Total Torque (Nm) 225
    Front Motor Maximum Power (kW) 100 150
    Front Motor Maximum Torque (Nm) 225 225
    Rear Motor Maximum Power (kW) None
    Rear Motor Maximum Torque (Nm) None
    Drive Motor Number Single Motor
    Motor Layout Front
    Battery Charging
    Battery Type Lithium Iron Phosphate Battery Ternary Lithium Battery Lithium Iron Phosphate Battery
    Battery Brand EVE/CALB CALB EVE/CALB
    Battery Technology None Magazine battery None
    Battery Capacity(kWh) 55.2kWh 59.4kWh 58.8kWh 59.4kWh
    Battery Charging Fast Charge 0.78 Hours Slow Charge 10 Hours None Fast Charge 0.7 Hours Slow Charge 10 Hours None
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Chassis/Steering
    Drive Mode Front FWD
    Four-Wheel Drive Type None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Trailing Arm Torsion Beam Non-Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Solid Disc
    Front Tire Size 215/55 R17 235/45 R18
    Rear Tire Size 215/55 R17 235/45 R18



    Car Model AION S
    2023 Plus 70 Smart Edition Ternary Lithium 2023 Plus 70 Smart Driving Edition Ternary Lithium 2023 Plus 80 Technology Edition Ternary Lithium
    Basic Information
    Manufacturer GAC Aion New Energy
    Energy Type Pure Electric
    Electric Motor 204hp
    Pure Electric Cruising Range(KM) 510km 610km
    Charging Time(Hour) Fast Charge 0.7 Hours Slow Charge 10 Hours Fast Charge 0.75 Hours Slow Charge 10 Hours
    Maximum Power(kW) 150(204hp)
    Maximum Torque (Nm) 225Nm
    LxWxH(mm) 4810x1880x1515mm
    Maximum Speed(KM/H) 160km
    Electricity Consumption Per 100km (kWh/100km) 12.9kWh 12.8kWh
    Body
    Wheelbase (mm) 2750
    Front Wheel Base(mm) 1600
    Rear Wheel Base(mm) 1602
    Number Of Doors (pcs) 4
    Number Of Seats (pcs) 5
    Curb Weight (kg) 1660 1750
    Full Load Mass(kg) 2125 2180
    Drag Coefficient (Cd) 0.211
    Electric Motor
    Motor Description Pure Electric 204 HP
    Motor Type Permanent Magnet/Synchronous
    Total Motor Power (kW) 150
    Motor Total Horsepower (Ps) 204
    Motor Total Torque (Nm) 225
    Front Motor Maximum Power (kW) 150
    Front Motor Maximum Torque (Nm) 225
    Rear Motor Maximum Power (kW) None
    Rear Motor Maximum Torque (Nm) None
    Drive Motor Number Single Motor
    Motor Layout Front
    Battery Charging
    Battery Type Ternary Lithium Battery
    Battery Brand CALB Farasis
    Battery Technology Magazine battery
    Battery Capacity(kWh) 58.8kWh 68kWh
    Battery Charging Fast Charge 0.7 Hours Slow Charge 10 Hours Fast Charge 0.75 Hours Slow Charge 10 Hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Chassis/Steering
    Drive Mode Front FWD
    Four-Wheel Drive Type None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Trailing Arm Torsion Beam Non-Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Solid Disc
    Front Tire Size 235/45 R18
    Rear Tire Size 235/45 R18
