GAC Trumpchi E9 7Seats Luxury Hybird MPV

Trumpchi E9, to a certain extent, shows GAC Trumpchi’s strong capabilities and layout capabilities in MPV market operations. Positioned as a medium-to-large MPV model, the Trumpchi E9 has attracted widespread attention once it was launched. The new car has launched a total of three configuration versions, namely PRO version, MAX version and Grandmaster version.


Product Detail

PRODUCT SPECIFICATIONS

ABOUT US

Product Tags

More automakers have also begun to focus on the MPV market. The mainstream models in the market before were Buick GL8, Honda Odyssey and Honda Alison. In the past two years, with the entry of Toyota Senna, Toyota Grevia and other models into the market, the overall market competition has become more intense. At present, domestically-produced models can also gain a firm foothold in the MPV market, and Denza D9 has been able to deliver more than 10,000 units in a single month. At the same time, GAC Trumpchi Motor has also been deeply cultivating the new energy market in the past two years. Not long ago, it launched the Trumpchi E9 to compete in the market. Obviously, the price of Trumpchi E9 is more generous.

Trumpchi E9_0

As an important model in Trumpchi's "XEV+ICV" dual-core strategy 2.0 era. GAC Trumpchi E9 sold 1,604 units within 9 days of its launch, and it has become a qualified competitor of Denza D9 right after its launch. So how is its product performance?

Trumpchi E9_9

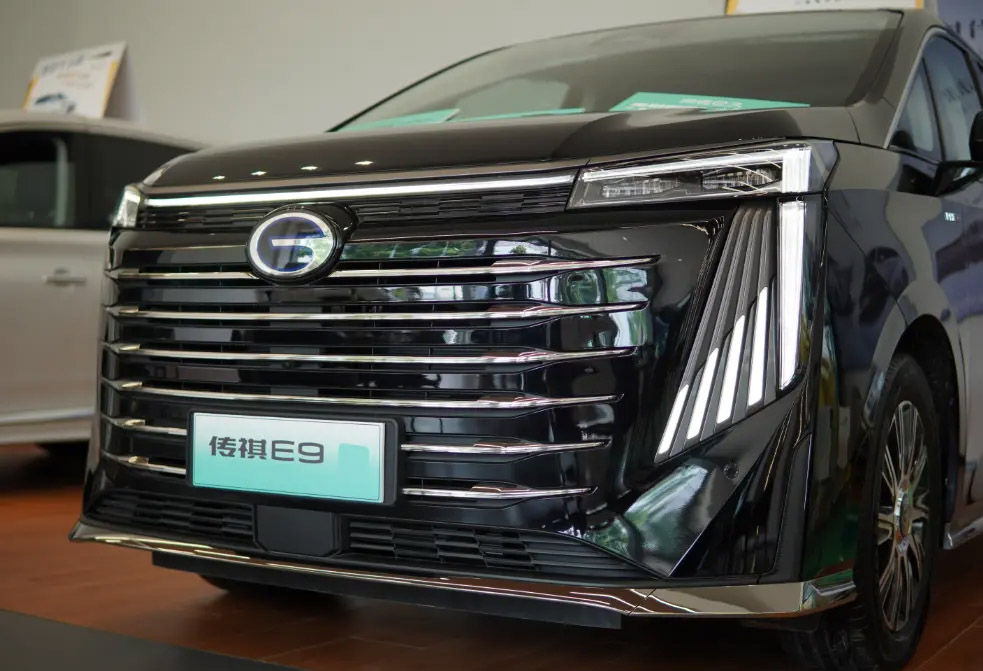

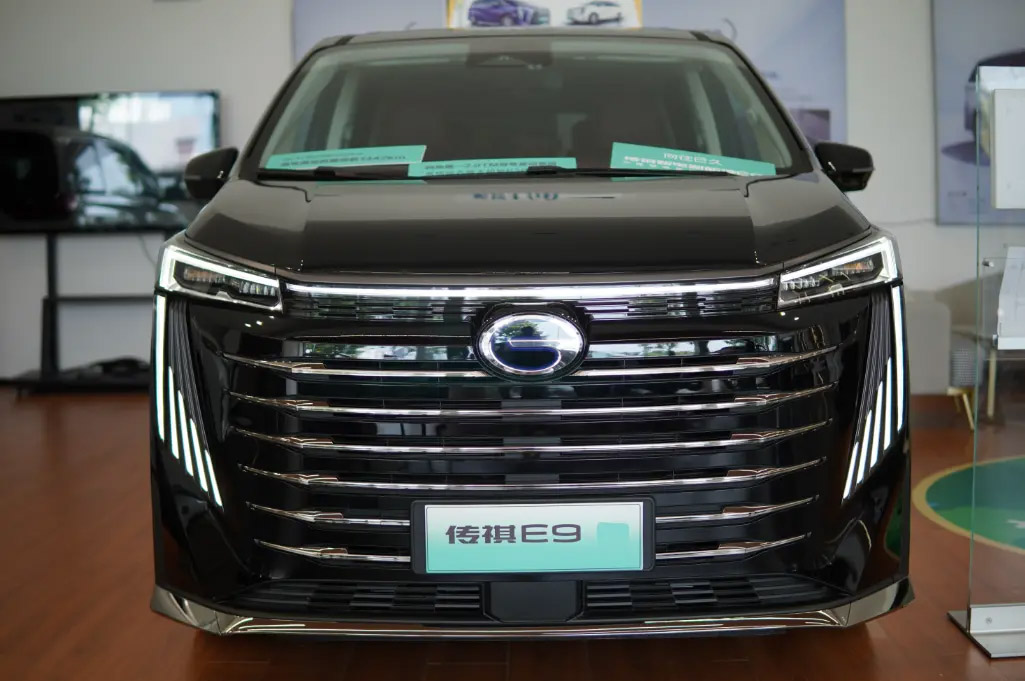

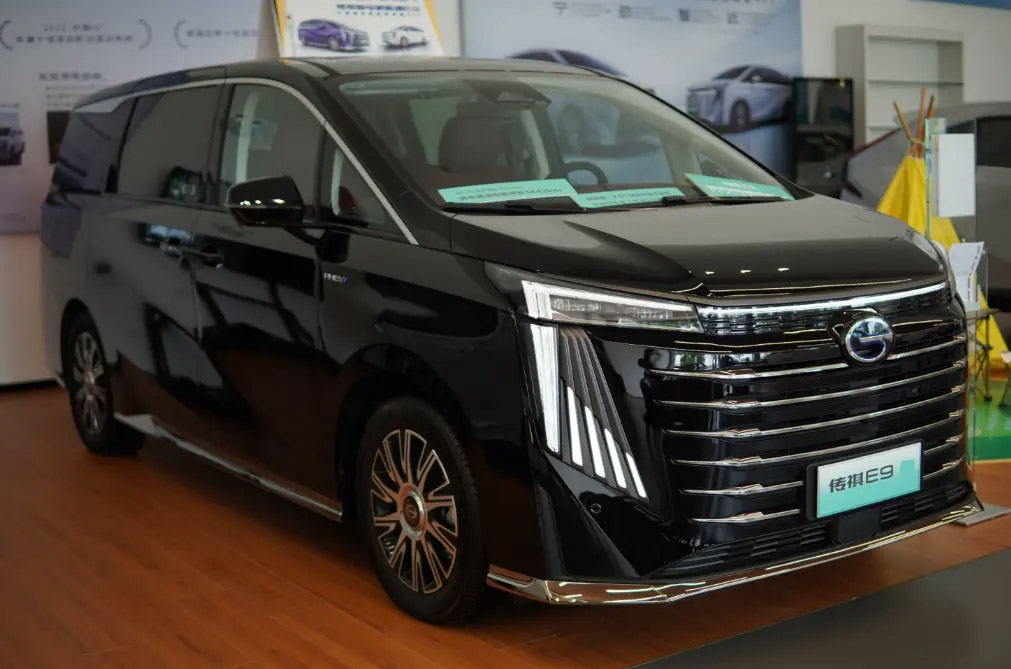

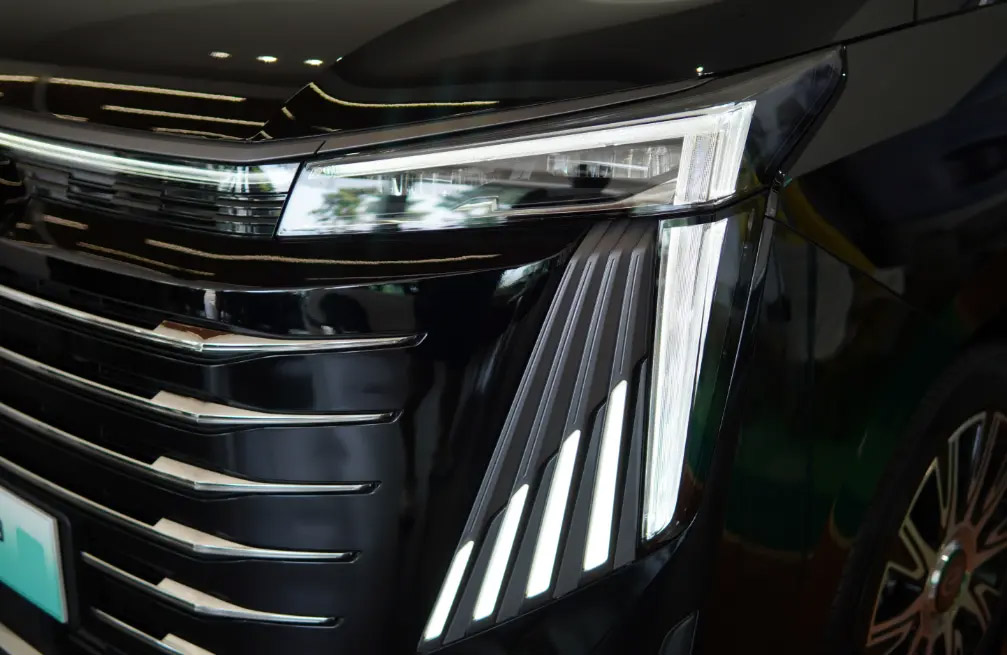

Judging from the exterior design, the style of Denza D9 DM-i is calm and fashionable, while GAC Trumpchi E9 puts more emphasis on "individualized" design. The front face of the new car has a decent shape, and the Kunpeng-style air intake grille has a high degree of recognition. In addition, the Grandmaster version still uses the shocking air intake grille. The grille adopts a borderless design, and the horizontal chrome-plated trim enriches the layering of the front face. The shape of the headlight group is individual, and the lines of the light group are more prominent, and a slender LED light strip is decorated in the middle. With the design of the five light strips below, it is highly recognizable after being lit, the air intakes on both sides are designed in a more three-dimensional manner, and the front surround is decorated with thick silver trim.

Trumpchi E9_8

The length of the new car is 5193mm, and the length of the master version is 5212mm. The posture of the body is stretched and solid, the top of the windows is decorated with chrome-plated trim to emphasize the texture, and the waistline is prominent and powerful. With the exaggerated line design of the lower skirt position, it enriches the layering of the body, and electric side sliding doors are equipped. The lower part of the A-pillar is decorated with the "PHEV" letter logo, the lower skirt is equipped with anti-collision strips, the details are in place, and the shape of the multi-spoke wheels is exquisite.

Trumpchi E9_7

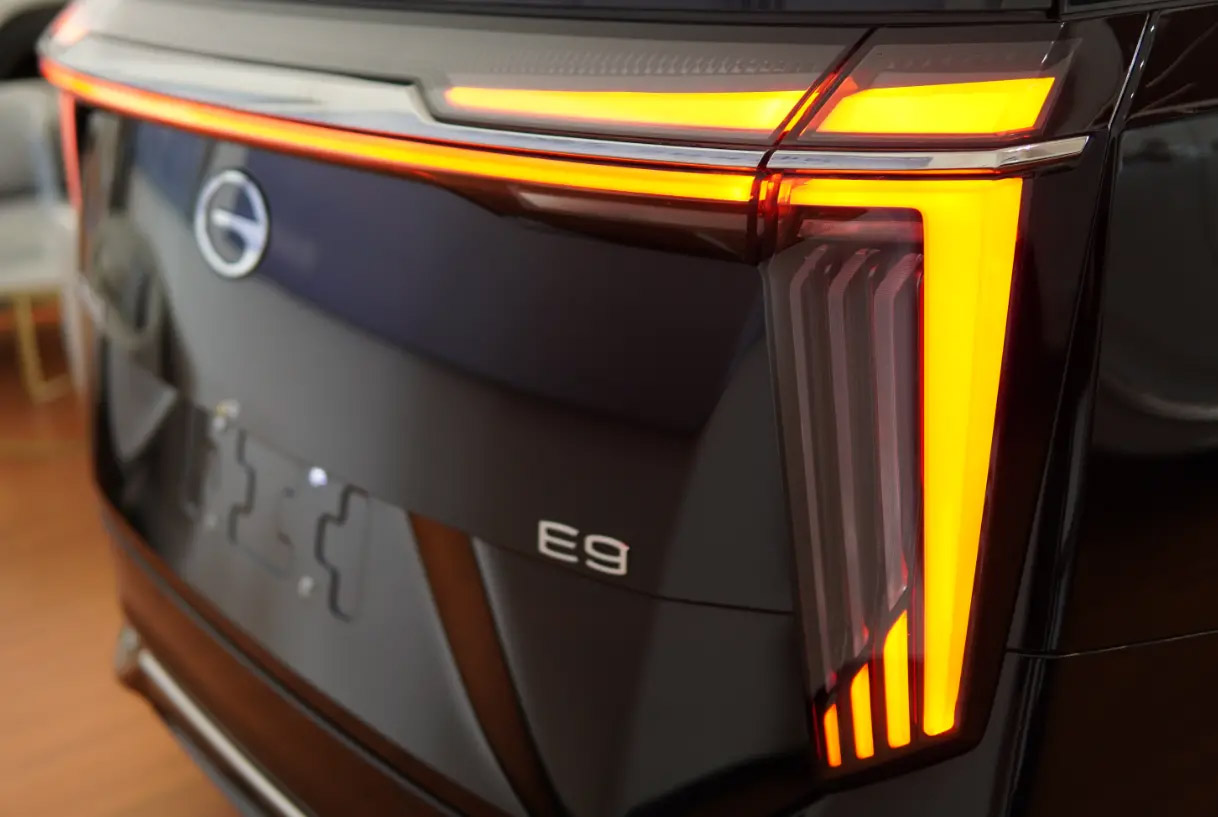

The rear design of the GAC Trumpchi E9 has a distinct sense of hierarchy. The thick spoiler maintains a certain angle of inclination, and is also equipped with high-mounted brake lights. The taillight group adopts a through-type design, and the shape of the light groups on both sides is exaggerated. After lighting up, it echoes the headlights. The reflector light belt is relatively slender, and the surrounding silver trim strips are decorated to stretch the visual width of the rear of the car.

Trumpchi E9_6

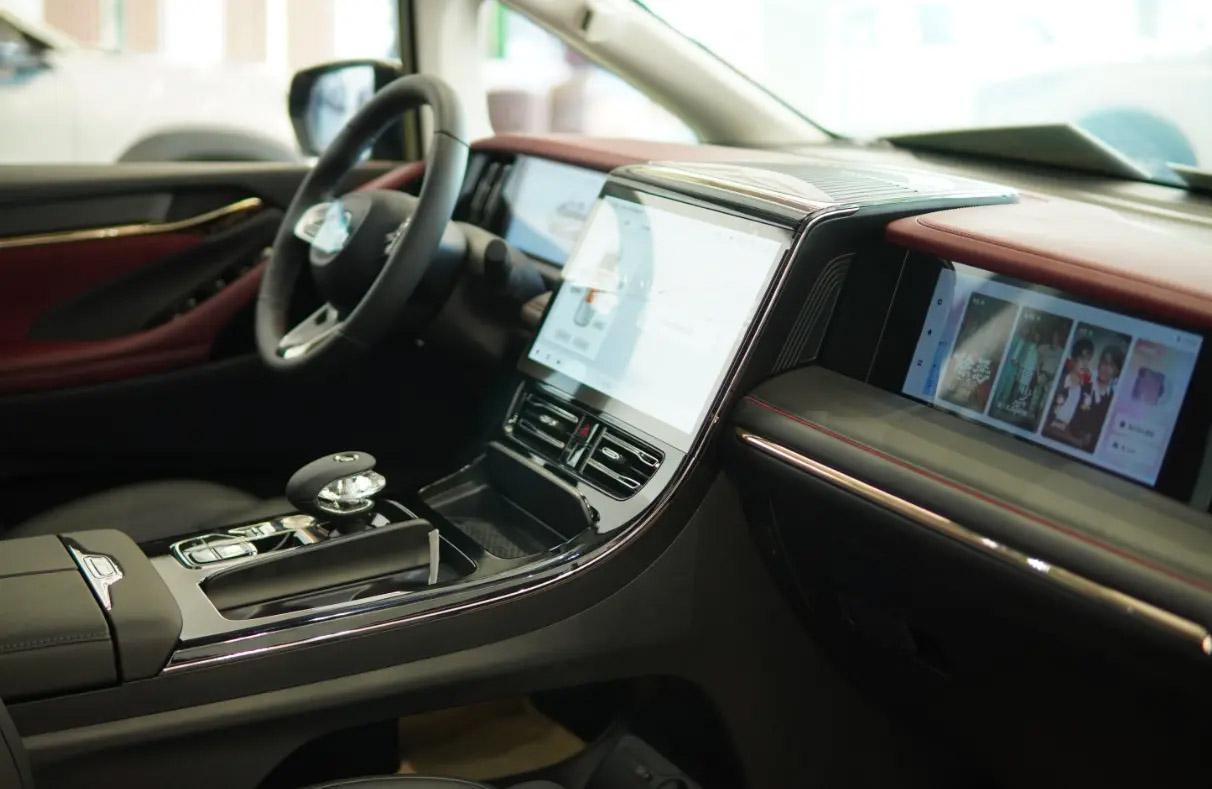

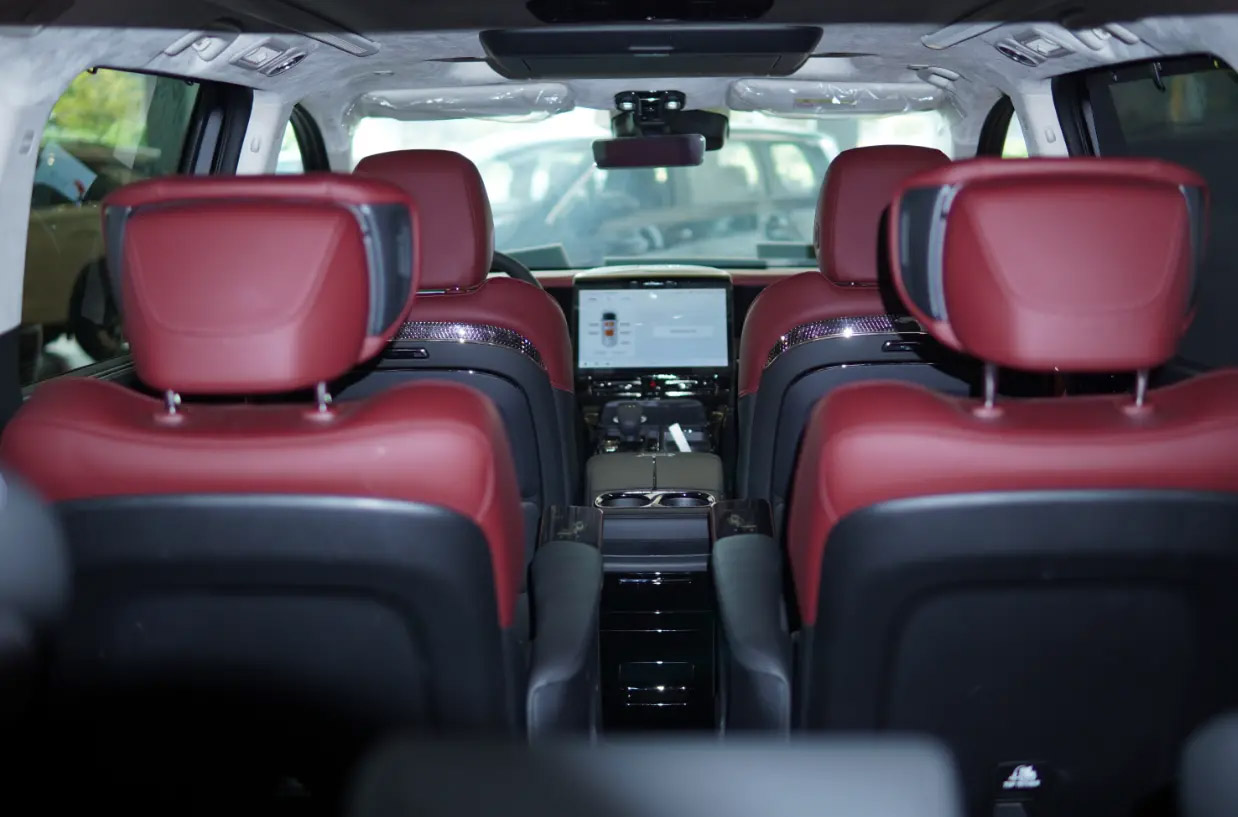

The interior style of GAC Trumpchi E9 is stable, and the materials used in the car are solid. Most areas are wrapped with soft and leather materials, and the stitches in the details are clearly outlined. The 12.3-inch combined driving control instrument + 14.6-inch super large floating central control screen + 12.3-inch passenger entertainment screen enhance the sense of technology. The UI interface design of the LCD instrument panel is relatively clear, and the data display is rich. The floating central control screen has a built-in 8155 chip and is equipped with the ADiGO intelligent network connection system. This car-machine system has rich functions, and most of the functions can be realized through the secondary menu. Moreover, the human-computer interaction performance is good, supporting functions such as seeing and speaking, four-sound zone recognition, and the co-pilot entertainment screen supports functions such as listening to music and watching TV.

Trumpchi E9_5

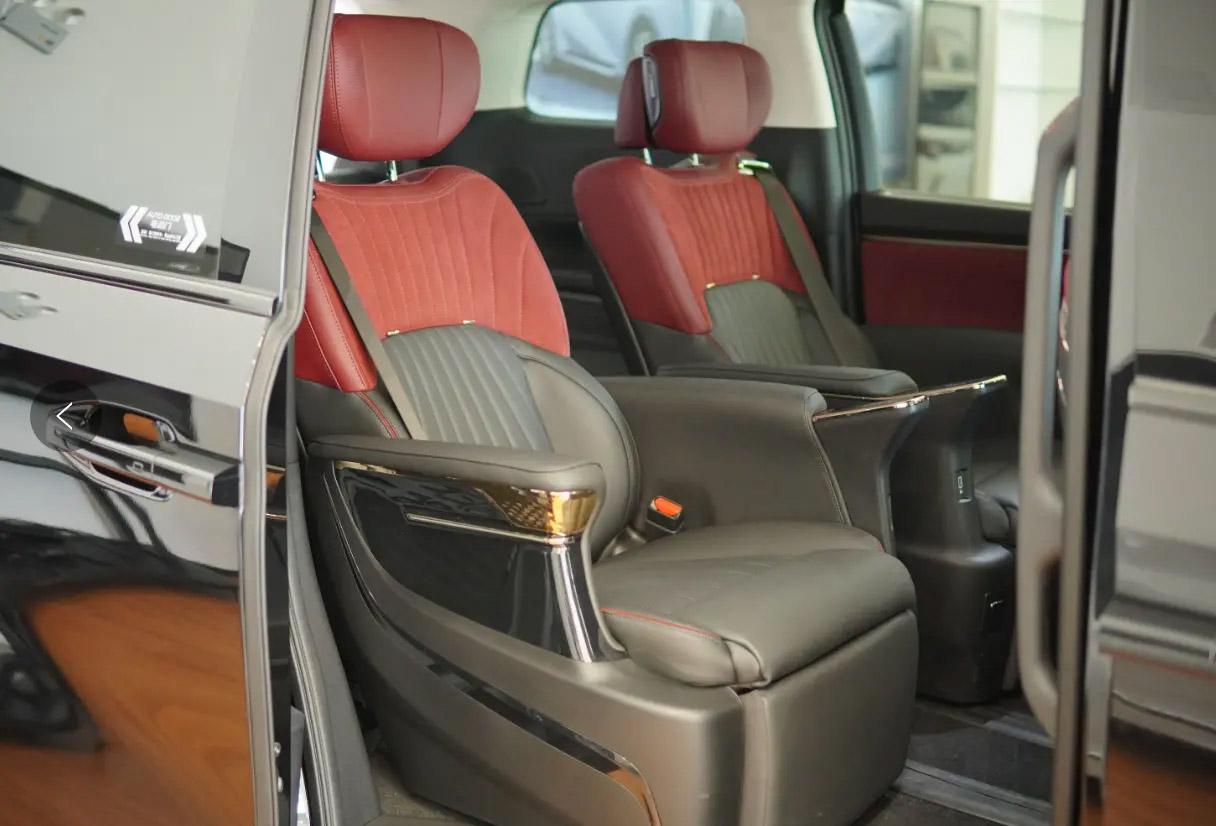

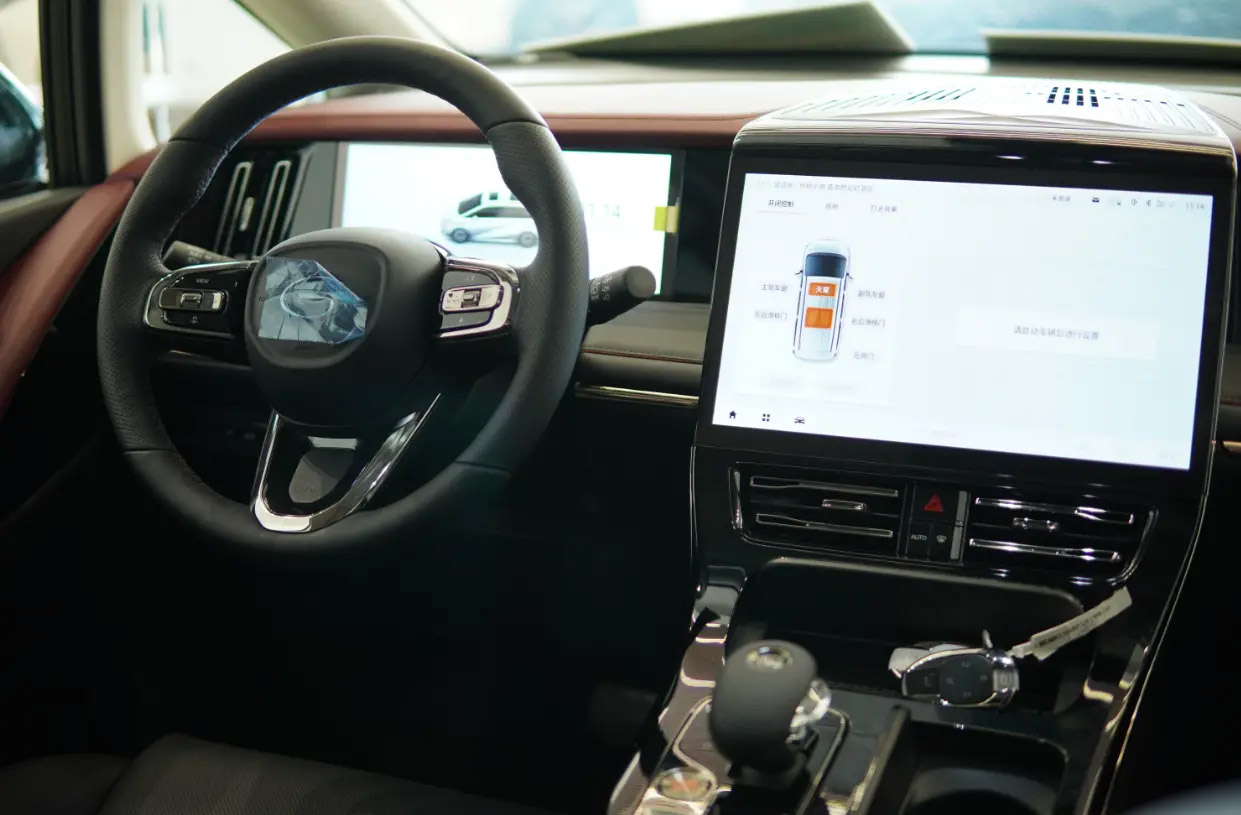

The multi-function steering wheel is round and full, with a good grip. The layout of the console area is reasonable, and the electronic shift lever is more rounded. And it is also decorated with crystal chrome plating to enhance the texture, and the surrounding physical buttons are neatly designed. And it is also equipped with a cup holder and storage space, and the small details are handled in place. The front seats support head/waist adjustment, the support is also good, and the ride experience is comfortable. The wheelbase of the new car has reached 3070mm. The second row uses independent seats and supports half-meter-long slide rails. Both sides of the seats are equipped with armrest screens, which can adjust functions such as heating/ventilation/massage. The space performance of the third row is also good, and it is equipped with reading lights, cup holders, etc., the details are in place, and the riding experience is comfortable. It is worth mentioning that the third row of seats supports secondary folding, which improves the space performance of the trunk.

Trumpchi E9_4

In terms of intelligence, GAC Trumpchi E9 also performed well. It supports functions such as cross-layer driving on slopes with large curvature, adaptive cruise, active braking, and traffic sign recognition. At the same time, it also supports one-key parking and storage, which is more friendly to novice drivers, and also supports OTA upgrades to ensure the scalability of later use.

Trumpchi E9_3

In terms of power, it is different from the mainstream plug-in hybrid version on the market. GAC Trumpchi E9 is equipped with a self-developed 2.0T engine, which can ensure stable power output under various working conditions. The thermal efficiency of the engine reaches 40.32%, the maximum output power is 140KW, the peak torque reaches 330N.m, the maximum power of the motor is 134KW, the maximum torque is 300N.m, the system comprehensive maximum output power is 274KW, and the maximum torque is 630N.m. It only takes 8.8 seconds to accelerate from 100 kilometers to 100 kilometers. In terms of battery life, the new car is equipped with a battery pack with a capacity of 25.57kWh, and the pure electric battery life under CLTC working conditions is 136KM. The fuel consumption per 100 kilometers of WLTC under comprehensive working conditions is 6.05L, the comprehensive battery life can reach 1032KM, and the cruising range is also good.

GAC Trumpchi E9 Specifications

Car Model 2023 2.0TM PRO 2023 2.0TM MAX 2023 2.0TM Grandmaster Edition
Dimension 5193x1893x1823mm 5212x1893x1823mm
Wheelbase 3070mm
Max Speed 175km
0-100 km/h Acceleration Time 8.8s
Battery Capacity 25.57kWh
Battery Type Ternary Lithium Battery
Battery Technology ZENERGY Magazine Battery
Quick Charging Time Fast Charge 0.5 hours Slow Charge 3.5 hours
Pure Electric Cruising Range 106km
Fuel Consumption Per 100 km 1.2L
Energy Consumption Per 100 km 21kWh
Displacement 1991cc(Tubro)
Engine Power 190hp/140kw
Engine Maximum Torque 330Nm
Motor Power 182hp/134kw
Motor Maximum Torque 300Nm
Number Of Seats 7
Driving System Front FWD
Minimum State Of Charge Fuel Consumption 6.05L
Gearbox 2-Speed DHT(2DHT)
Front Suspension MacPherson Independent Suspension
Rear Suspension Multi-Link Independent Suspension

Trumpchi E9_2

In addition to active safety, GAC Trumpchi also performed quite well in terms of passive safety. The new car is equipped with a 360-degree airbag matrix system as standard, and the third row is also equipped with a separate head airbag. The safety of every passenger in the car is guaranteed to the greatest extent. For new energy vehicles, the performance of battery safety is also more important. The battery pack equipped with GAC Trumpchi E9 has a high safety factor and can pass the 20-ton heavy object extrusion crash test that is more than twice the national standard. No problems such as smoke, fire or explosion occurred. It is worth mentioning that the lifespan of the magazine battery is also relatively long, and the battery capacity can be maintained at more than 80% when traveling 300,000 kilometers on pure electricity, so there is basically no need to worry about battery attenuation.

Trumpchi E9_1

In fact, for an MPV, it really needs to show better performance in all aspects. GAC Trumpchi E9 has unique appearance design, ideal space performance, rich intelligent configuration, perfect comfort configuration, and stable battery life. The overall quality is really good, and with a more sincere price, it has the hard power to gain a firm foothold in the market.


  • Previous:
  • Next:

  • Car Model Trumpchi E9
    2023 2.0TM PRO 2023 2.0TM MAX 2023 2.0TM Grandmaster Edition
    Basic Information
    Manufacturer GAC Passenger Vehicles
    Energy Type Plug-In Hybrid
    Motor 2.0T 190 HP L4 Plug-in Hybrid
    Pure Electric Cruising Range(KM) 106km
    Charging Time(Hour) Fast Charge 0.5 hours Slow Charge 3.5 hours
    Engine Maximum Power (kW) 140(190hp)
    Motor Maximum Power (kW) 134(182hp)
    Engine Maximum Torque (Nm) 330Nm
    Motor Maximum Torque (Nm) 300Nm
    LxWxH(mm) 5193x1893x1823mm 5212x1893x1823mm
    Maximum Speed(KM/H) 175km
    Electricity Consumption Per 100km (kWh/100km) 21kWh
    Minimum State Of Charge Fuel Consumption (L/100km) 1.2L
    Body
    Wheelbase (mm) 3070
    Front Wheel Base(mm) 1625
    Rear Wheel Base(mm) 1646
    Number Of Doors (pcs) 5
    Number Of Seats (pcs) 7
    Curb Weight (kg) 2420
    Full Load Mass(kg) 3000
    Fuel tank capacity (L) 56
    Drag Coefficient (Cd) None
    Engine
    Engine Model 4B20J2
    Displacement (mL) 1991
    Displacement (L) 2.0
    Air Intake Form Turbocharged
    Cylinder Arrangement L
    Number Of Cylinders (pcs) 4
    Number Of Valves Per Cylinder (pcs) 4
    Maximum Horsepower (Ps) 190
    Maximum Power (kW) 140
    Maximum Torque (Nm) 330
    Engine Specific Technology Miller cycle, overhead water-cooled intercooler, fully variable oil pump, dual balance shaft system, 350bar direct injection system, low-pressure EGR system, dual-channel supercharger, dual thermostat cooling
    Fuel Form Plug-In Hybrid
    Fuel Grade 92#
    Fuel Supply Method In-Cylinder Direct Injection
    Electric Motor
    Motor Description Plug-in Hybrid 182 hp
    Motor Type Permanent Magnet/Synchronous
    Total Motor Power (kW) 134
    Motor Total Horsepower (Ps) 182
    Motor Total Torque (Nm) 300
    Front Motor Maximum Power (kW) 134
    Front Motor Maximum Torque (Nm) 300
    Rear Motor Maximum Power (kW) None
    Rear Motor Maximum Torque (Nm) None
    Drive Motor Number Single Motor
    Motor Layout Front
    Battery Charging
    Battery Type Ternary Lithium Battery
    Battery Brand ZENERGY
    Battery Technology Magazine Battery
    Battery Capacity(kWh) 25.57kWh
    Battery Charging Fast Charge 0.5 hours Slow Charge 3.5 hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Gearbox
    Gearbox Description 2-Speed DHT
    Gears 2
    Gearbox Type Dedicated Hybrid Transmission (DHT)
    Chassis/Steering
    Drive Mode Front FWD
    Four-Wheel Drive Type None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Multi-Link Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Ventilated Disc

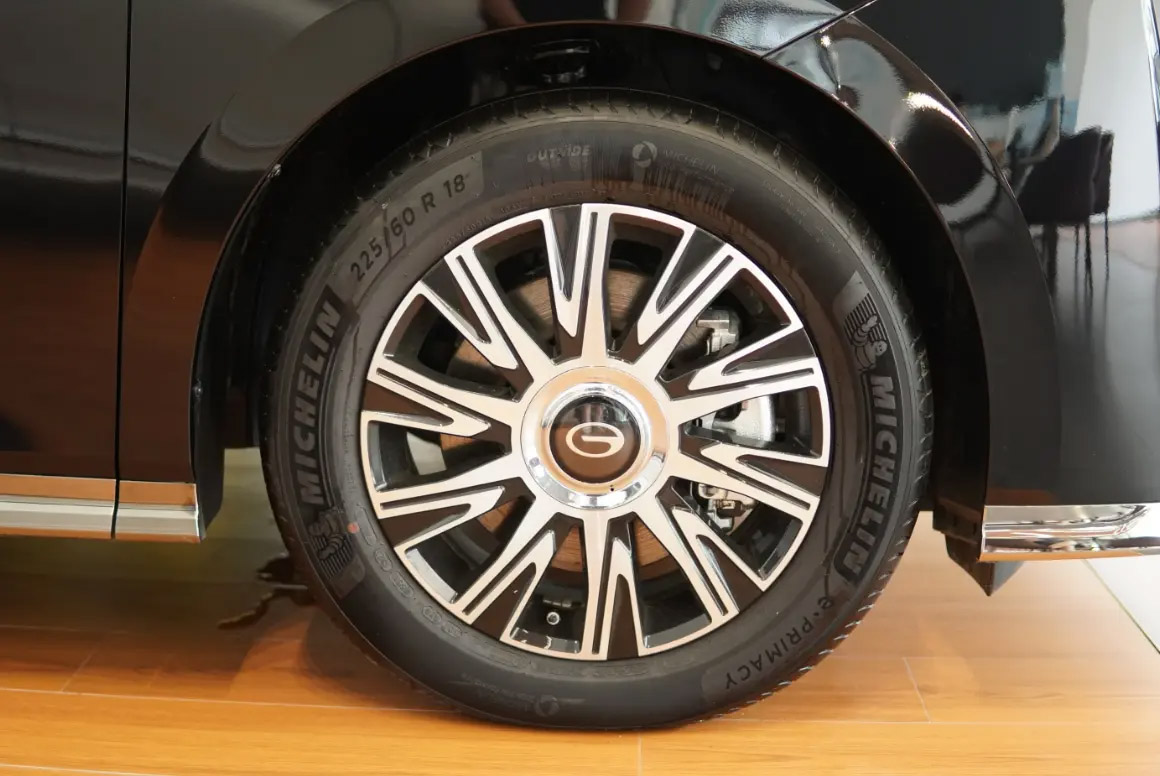

    Front Tire Size 225/60 R18
    Rear Tire Size 225/60 R18
