Geely Galaxy L7 hybrid SUV

Geely Galaxy L7 is officially launched, and the price range of 5 models is from 138,700 yuan to 173,700 CNY. As a compact SUV, Geely Galaxy L7 was born on the e-CMA architecture platform, and added the brand-new Raytheon electric hybrid 8848. It can be said that Geely’s fruitful achievements in the era of fuel vehicles have been put on the Galaxy L7.


Product Detail

PRODUCT SPECIFICATIONS

ABOUT US

Product Tags

Geely Galaxy L7 is officially launched, and the price range of 5 models is from 138,700 CNY to 173,700 CNY. As a compact SUV, Geely Galaxy L7 was born on the e-CMA architecture platform, and added the brand-new Raytheon electric hybrid 8848. It can be said that Geely's fruitful achievements in the era of fuel vehicles have been put on the Galaxy L7.
Geely Galaxy L7_22

Geely Galaxy L7_15

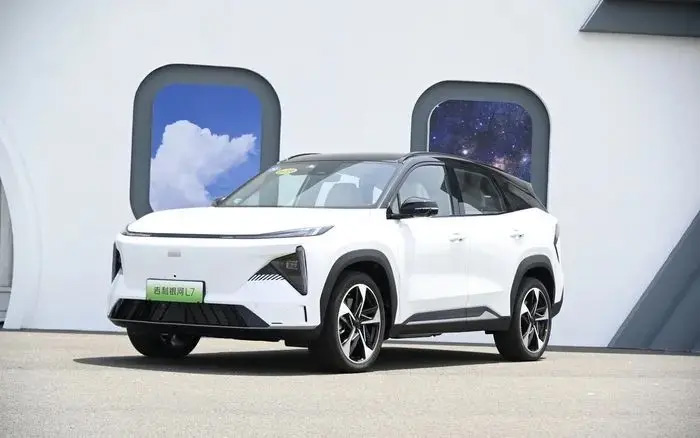

Geely Galaxy L7 is a new brand model of Geely Automobile Group, so the vehicle design language is completely different. The shape of the whole front is simple and introverted, creating a unique trendy feeling. A penetrating car light treatment is done on the top, but in fact the light group is not connected.

Geely Galaxy L7_14

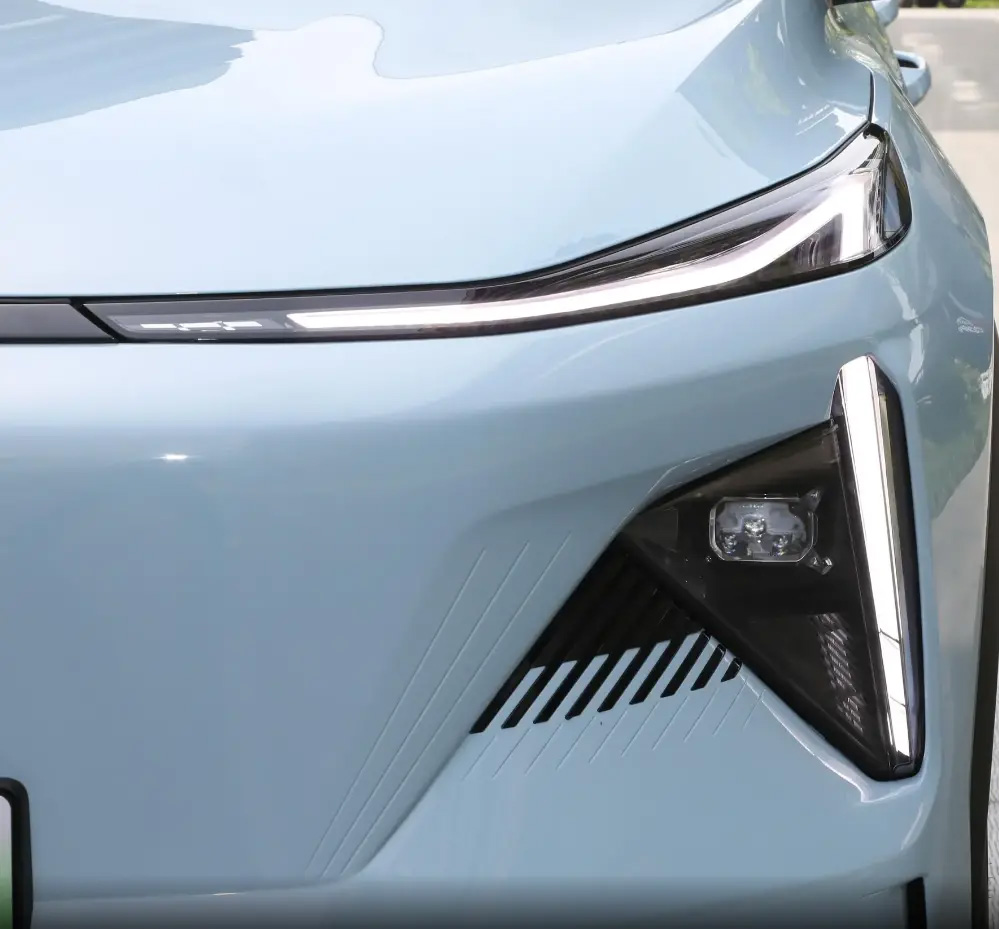

It can be seen that the entire light group is completely embedded in it, and the angled LED daytime running lights are not completely connected, which can ensure the extension of the penetrating effect on the entire upper part. The headlight group adopts an LED lens design, and the light transparency after lighting is not bad.

Geely Galaxy L7_13

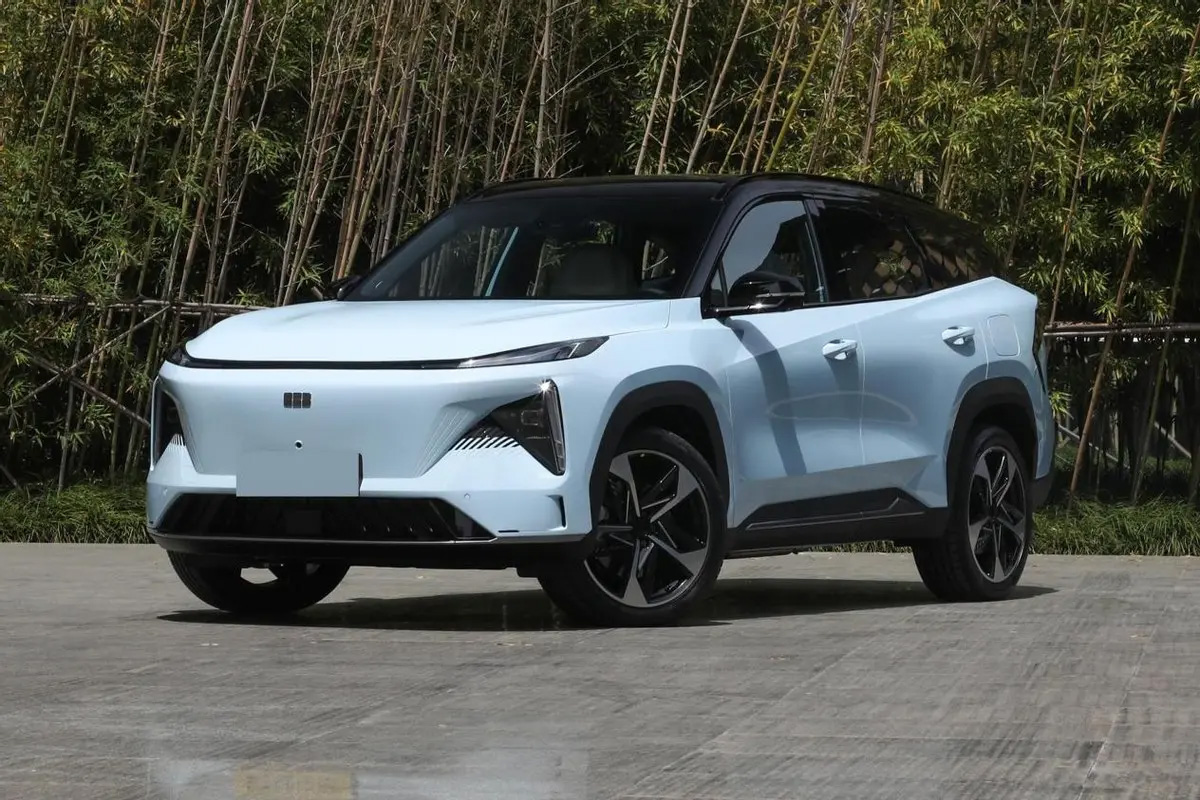

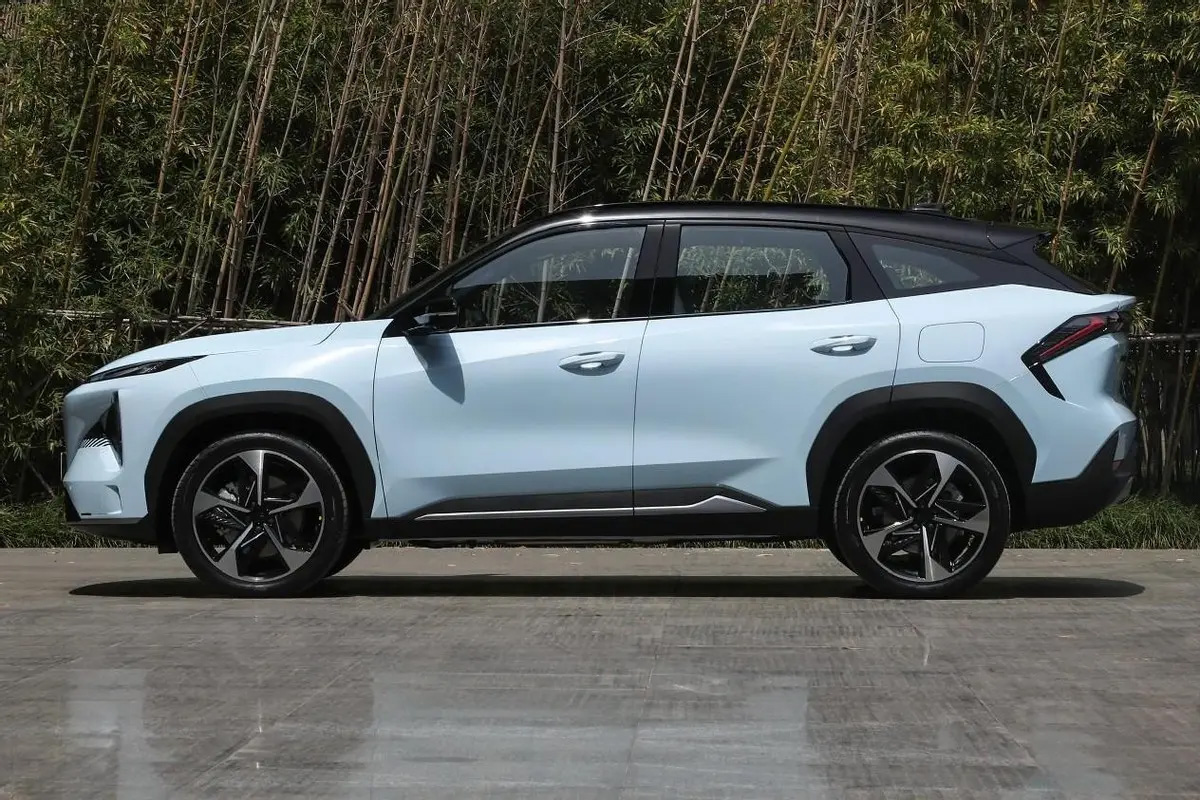

The body posture of the whole vehicle presents a dive effect, and at the same time, the sharp edges and corners highlight a sense of strength, especially the treatment of the C-pillar part, which is obviously extended. The extended duck tail matches the smooth lines of the whole vehicle, which looks extremely sporty.

Geely Galaxy L7_12

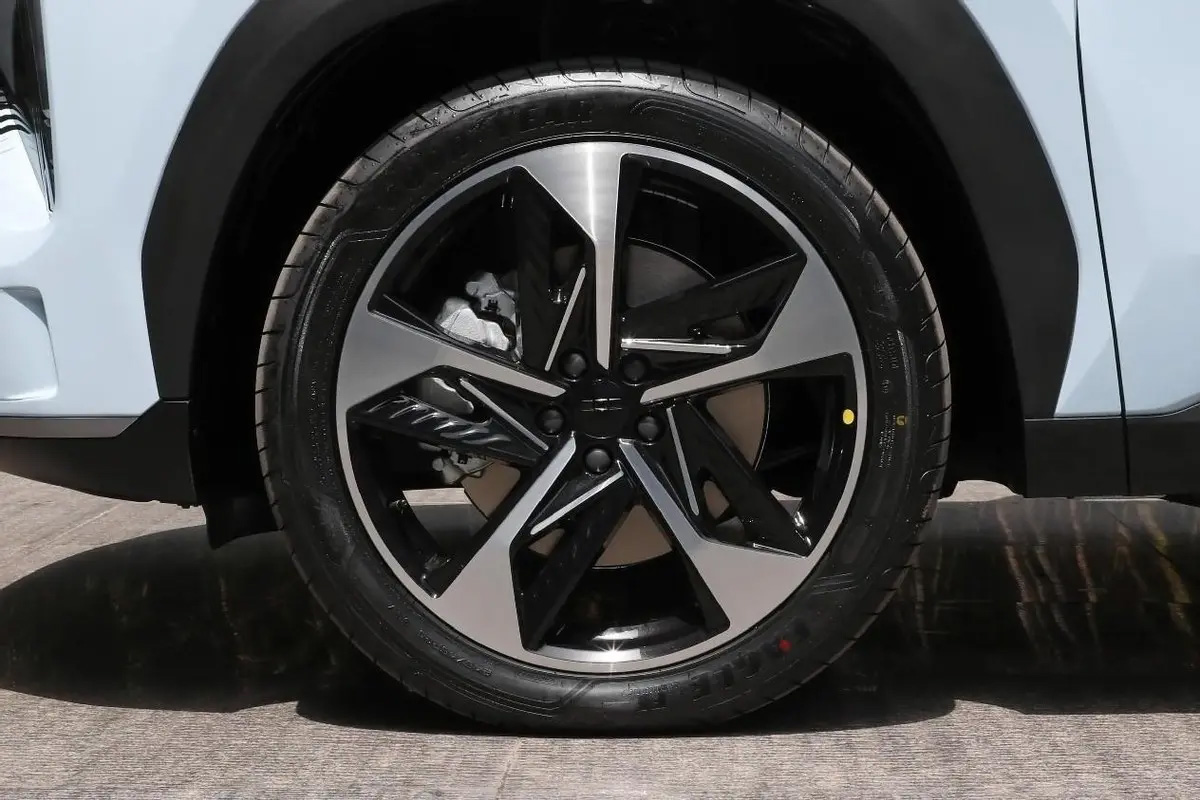

The rim adopts a five-pointed star design, which creates a visual impact through color matching. The tires are matched with GOODYEAR EAGLE F1 SUV special tires from Goodyear, the specification is 245/45 R20.

Geely Galaxy L7_11

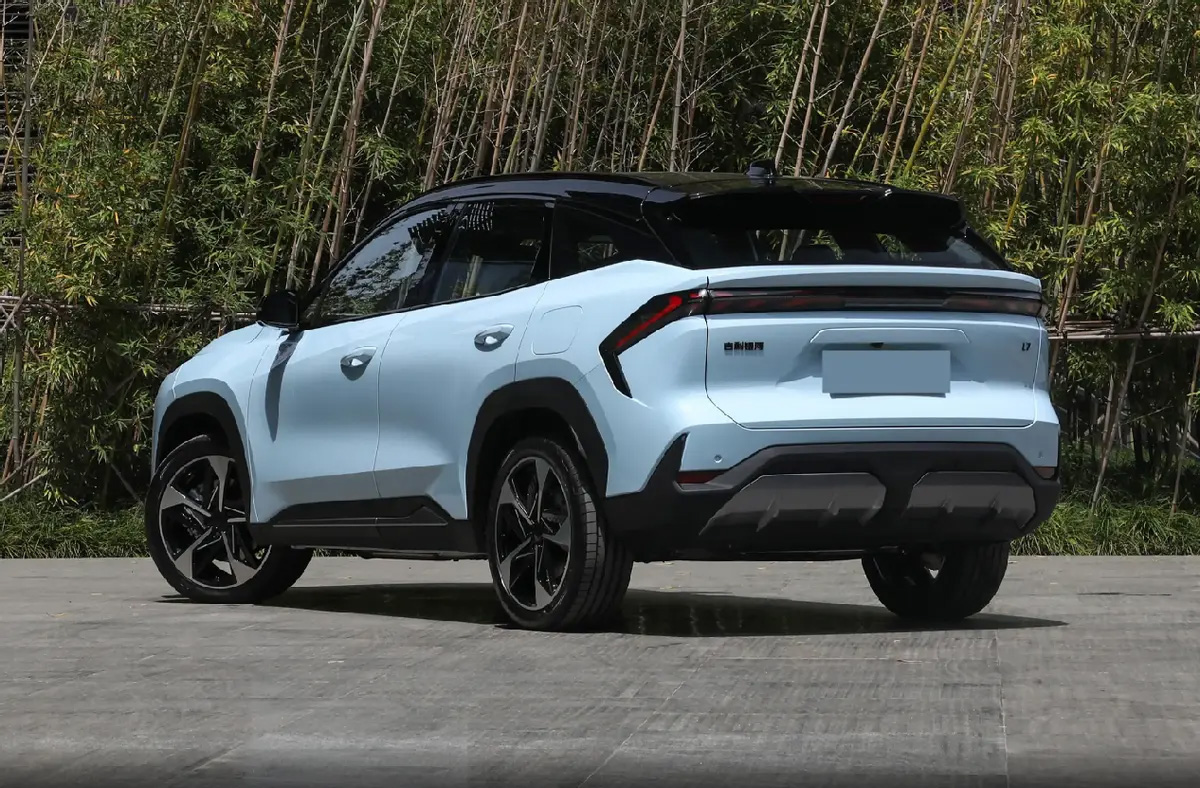

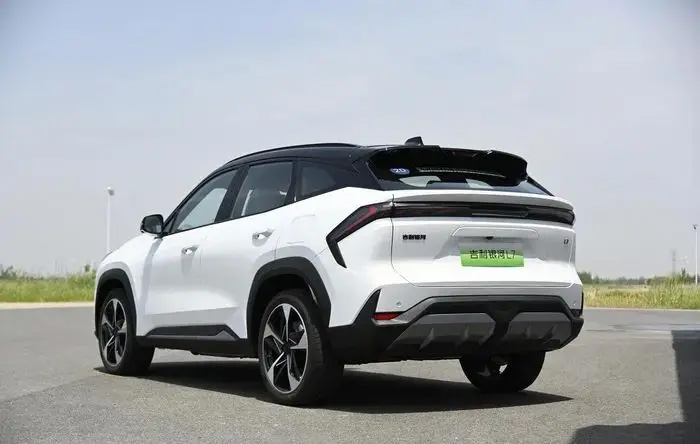

The shape of the rear of the car has a clear sense of hierarchy. You can see the suspended spoiler, small slip-back, straight duck tail, penetrating LED taillights, and built-in license plate holder, which clearly divides a rear shape of the vehicle. This kind of design is quite bold, some people think it is very special, but many consumers think it is too ugly.

Geely Galaxy L7_10

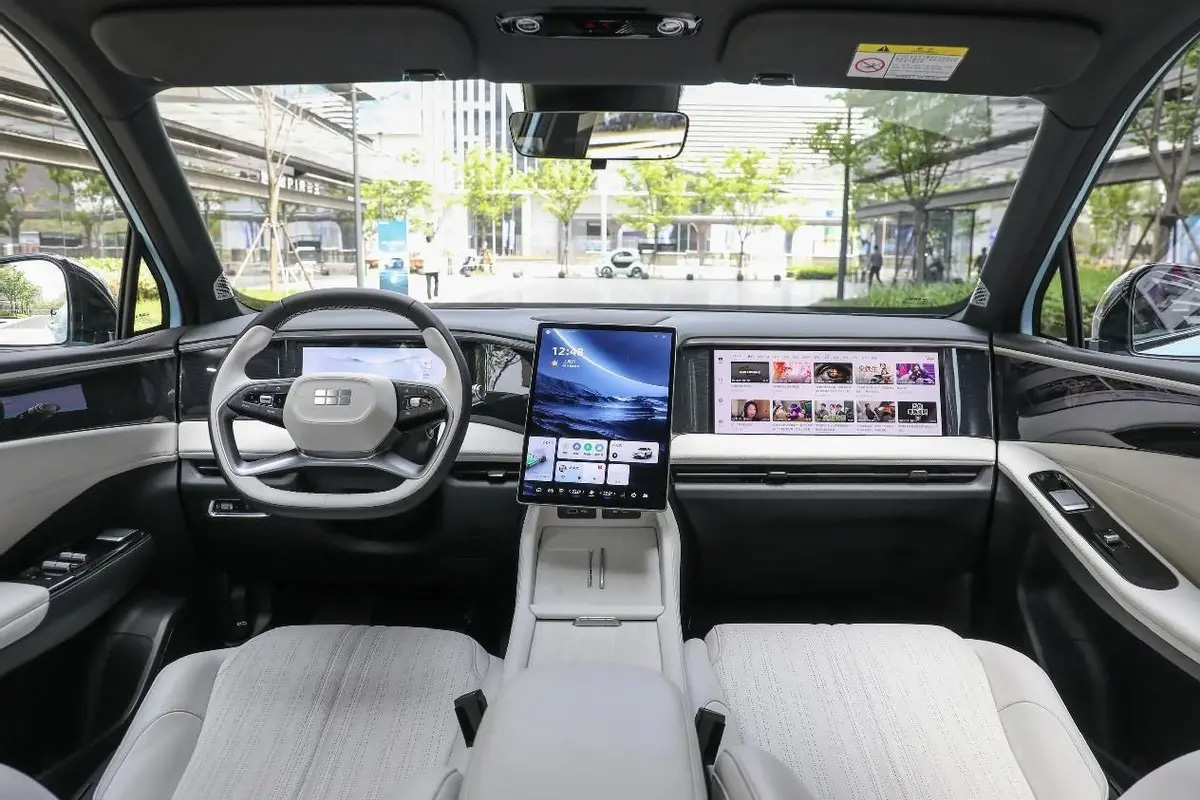

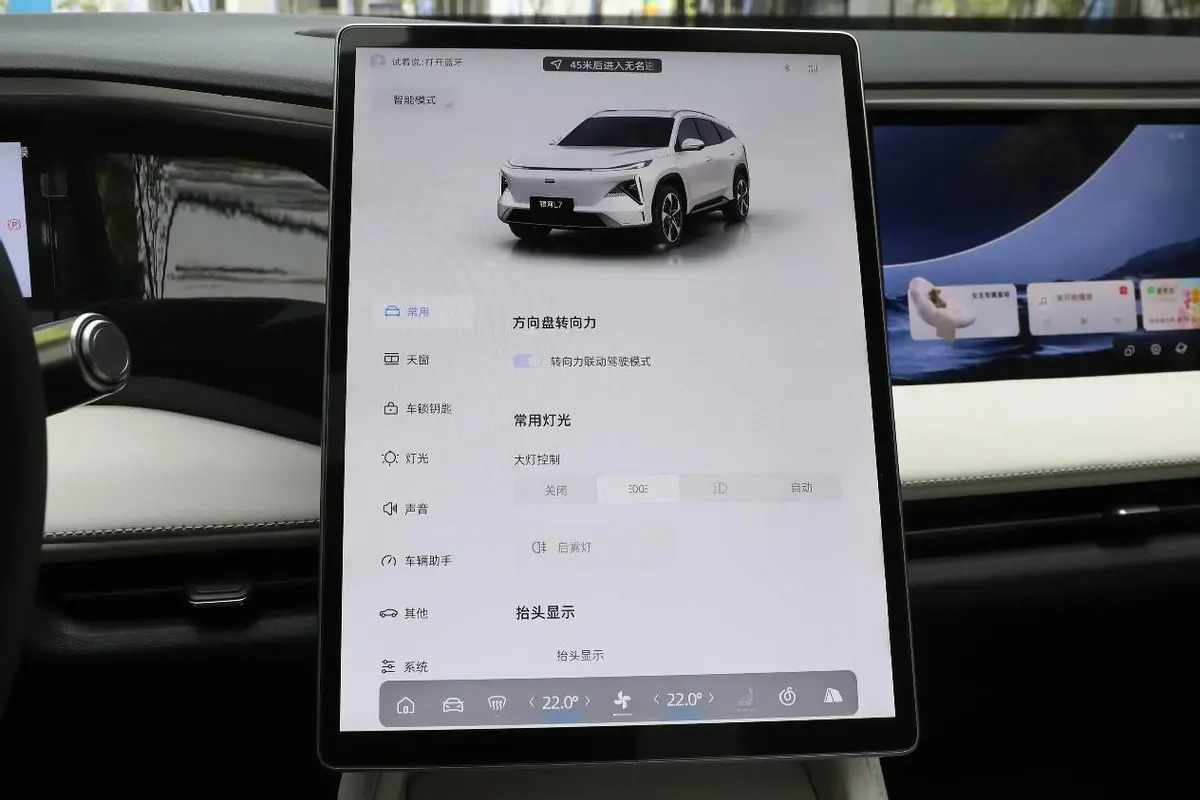

Sitting in the cockpit of Geely Galaxy L7, you will see a very distinctive triple screen design; if you count the AR-HUD head-up display system, then there are four large screens linked together, keeping up with the current trend of intelligent cockpit design . The overall cockpit is still in a simplified design, giving the illusion of optimization of the Boyue L. However, the entire cockpit is much more advanced than the Boyue L. The areas where the driver and passengers will come into contact with the car are covered with soft leather to ensure a comfortable touch, and the center is surrounded by high-gloss PVC material.

Geely Galaxy L7_0

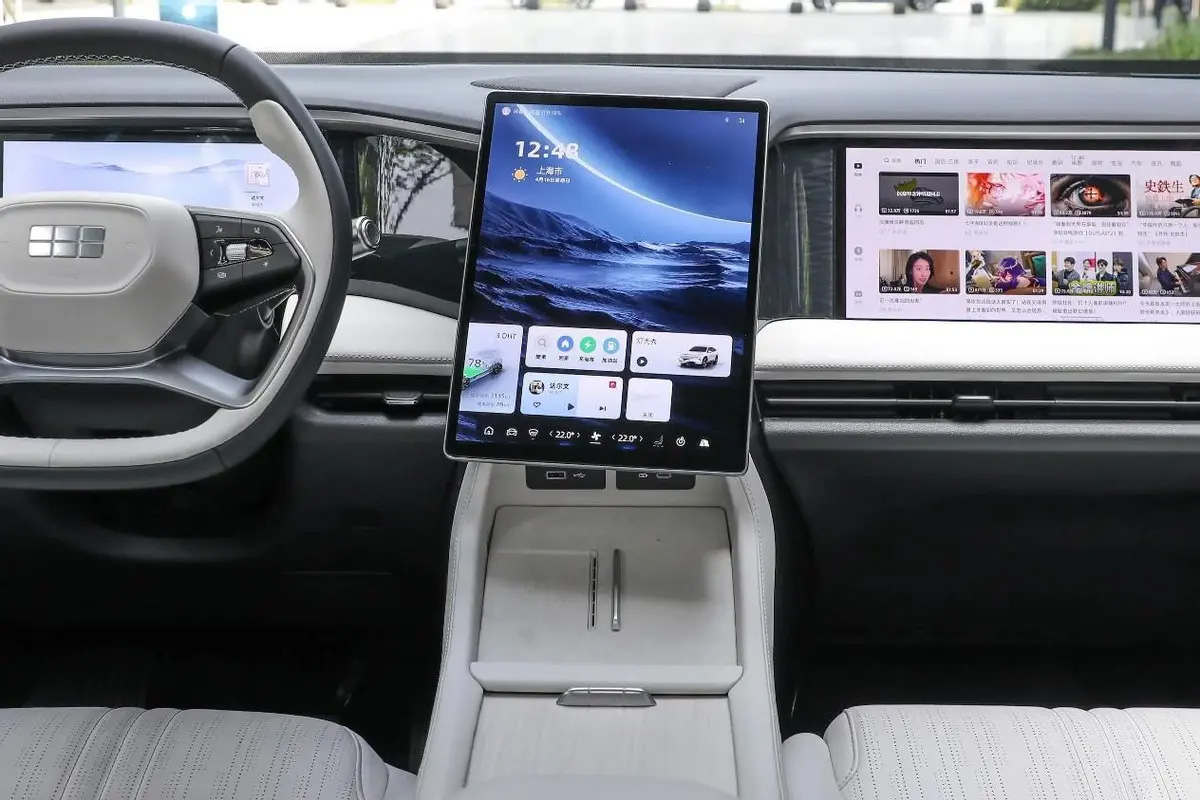

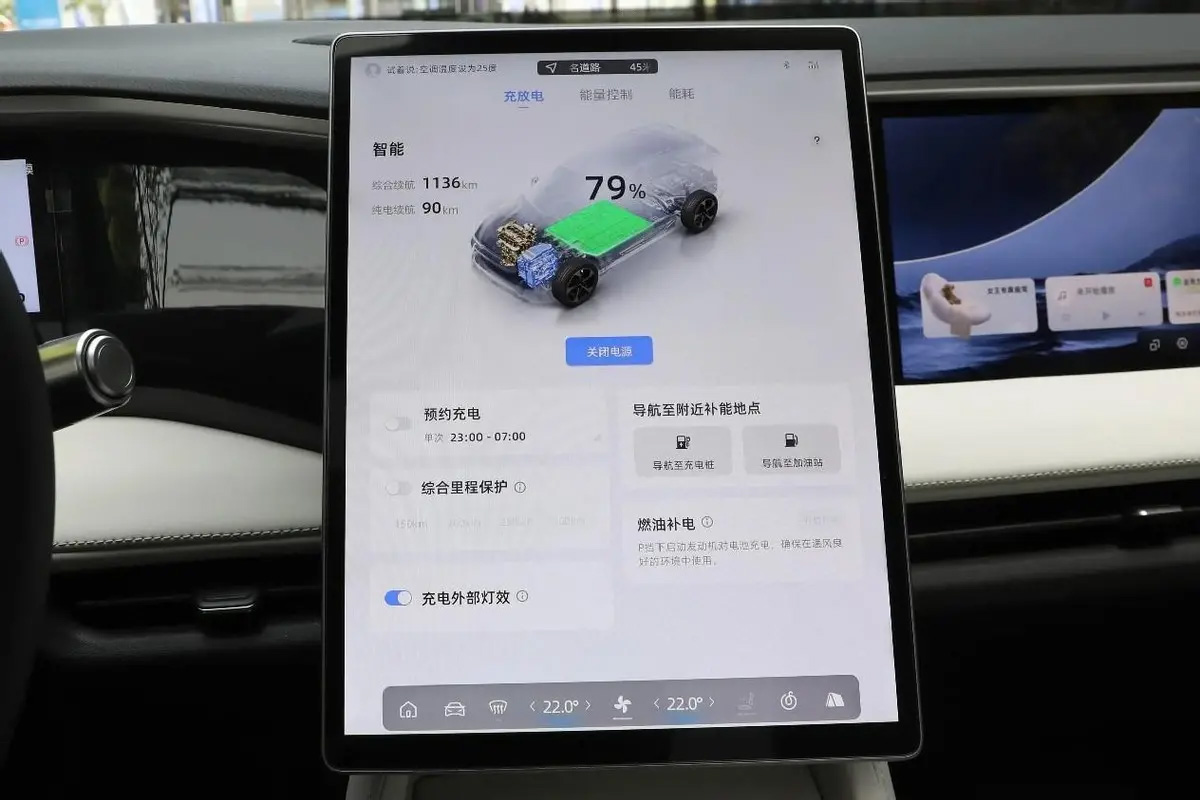

The area of the central island is still very good, there is more storage space, and it supports wireless charging of mobile phones. Above is the classic 13.2-inch large vertical screen of Geely Galaxy L7. The overall angle is inclined to the driver's side, which is convenient for the driver to control. At the same time, it is clear to obtain relevant information and settings, which is in line with ergonomics.

Geely Galaxy L7_9

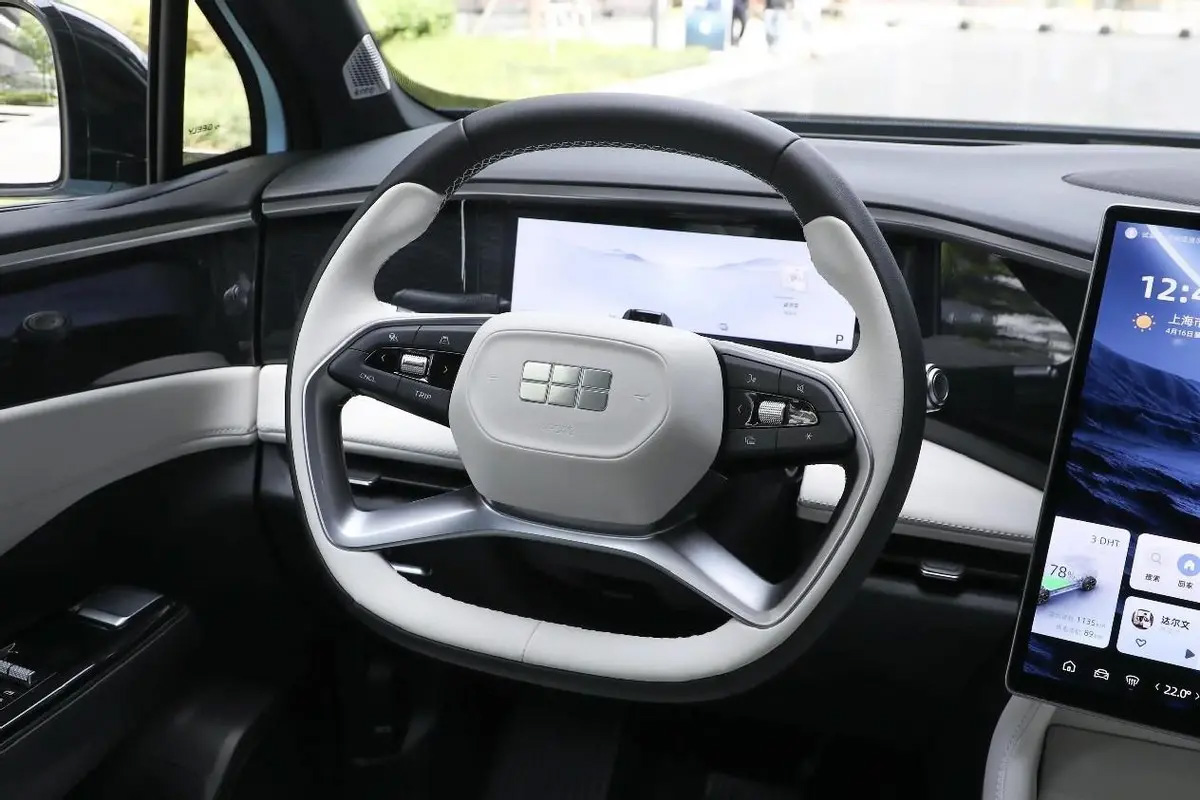

The flat-bottomed multifunctional steering wheel is designed with physical buttons, which is worthy of praise. The leather covering makes the grip performance excellent, and the touch is delicate and smooth. The only flaw may be that when you hold it at 3/9 points, you always feel that you will touch the physical buttons on the inside.

Geely Galaxy L7_8

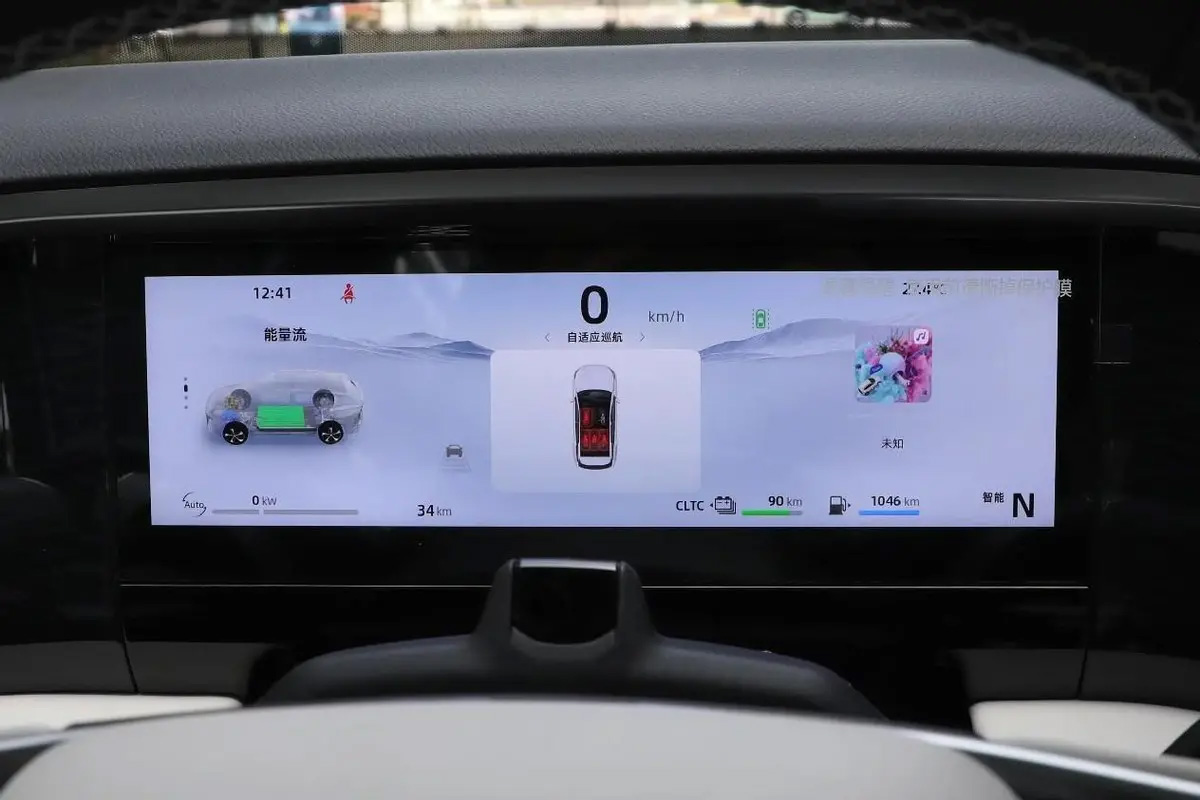

The 10.25-inch full LCD digital instrument is placed horizontally, and the display content is clear. In the normal mode, the vehicle information is on the left and the multimedia information is on the right.

Geely Galaxy L7_7

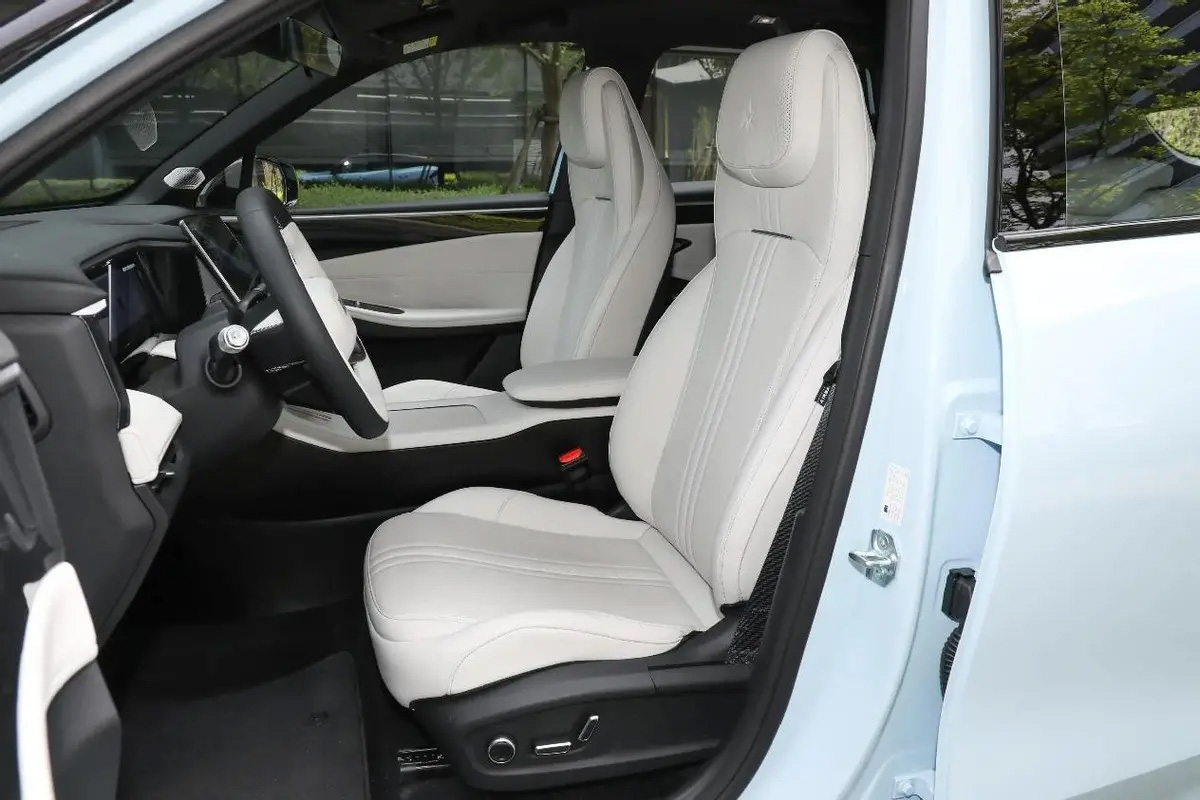

In terms of seats, the whole vehicle adopts an integrated seat design, showing a scallop-shaped posture, and the visual experience is relatively refreshing. The sense of wrapping is worthy of praise, and there are no obvious flaws overall, but the function of the seat is indeed not friendly. Only the top version can fully unlock all seat functions, including leg/lumbar support for the co-pilot, heating/ventilation/massage for the front seats.

Geely Galaxy L7_6

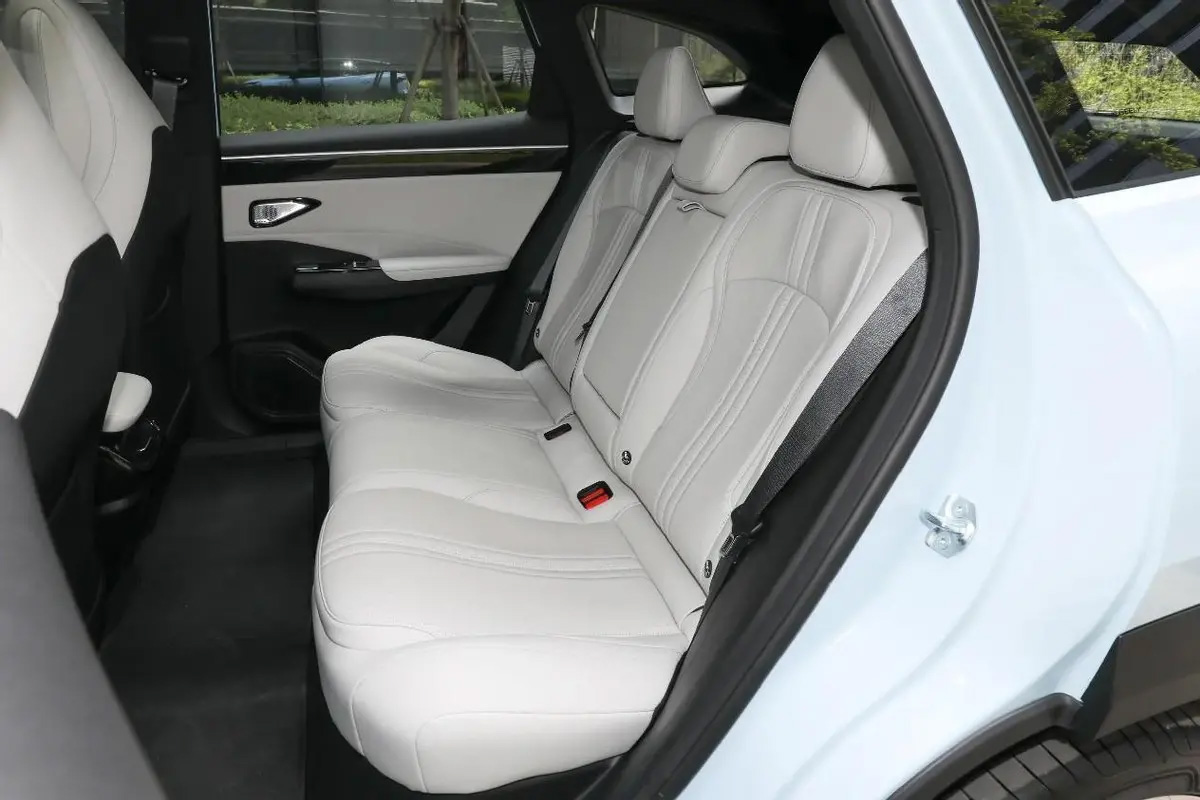

In terms of rear space, the car's rear seat cushions are filled with softness, and it can be clearly felt that the car's ergonomics has been carefully considered. The angle of the backrest is very suitable, and the central headrest is also designed with a small headrest, which can ensure the rear window view of the interior rearview mirror, which is very thoughtful. In terms of space, the leg room and head room are both good, and it will not feel cramped or depressed. There is also a panoramic sunroof, which further adds to its sense of transparency.

Geely Galaxy L7_5

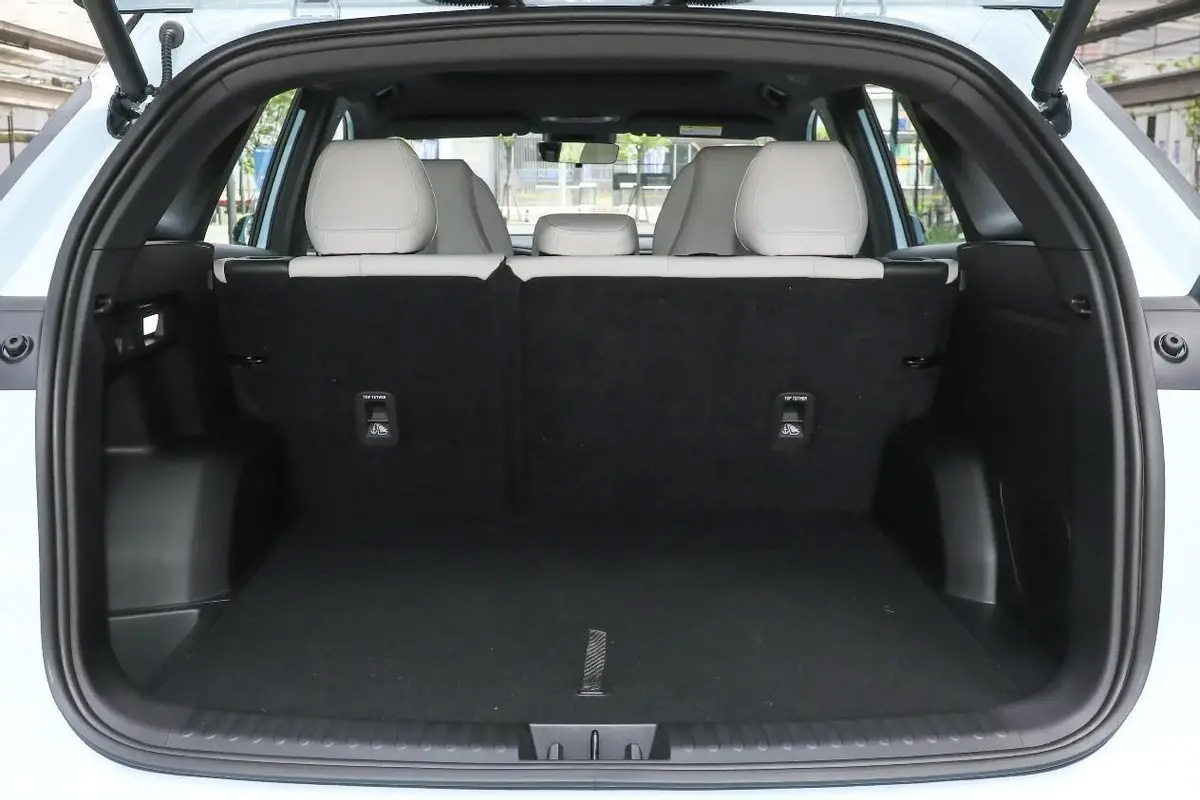

In terms of trunk space, limited by the body of a compact SUV, the overall storage capacity is not spacious, but considering that the rear seats can be folded down, the space flexibility can be further improved.

Geely Galaxy L7_4

As the first model of the Galaxy brand, the Geely Galaxy L7 is equipped with an AR-HUD head-up display system, which is convenient for daily driving and can capture driving information in time to assist safe driving. The car-machine system even adopts the brand-new Galaxy N OS system. The car has a built-in Qualcomm Snapdragon 8155 chip, which is developed based on the Android underlying architecture. The overall control logic is clear, the menu is clear and easy to understand, and at the same time, it solves the problem of car freeze that was criticized in the past. The only pity is that there are not many APP ecology supported by the car, and the entertainment is not high.

Geely Galaxy L7_3

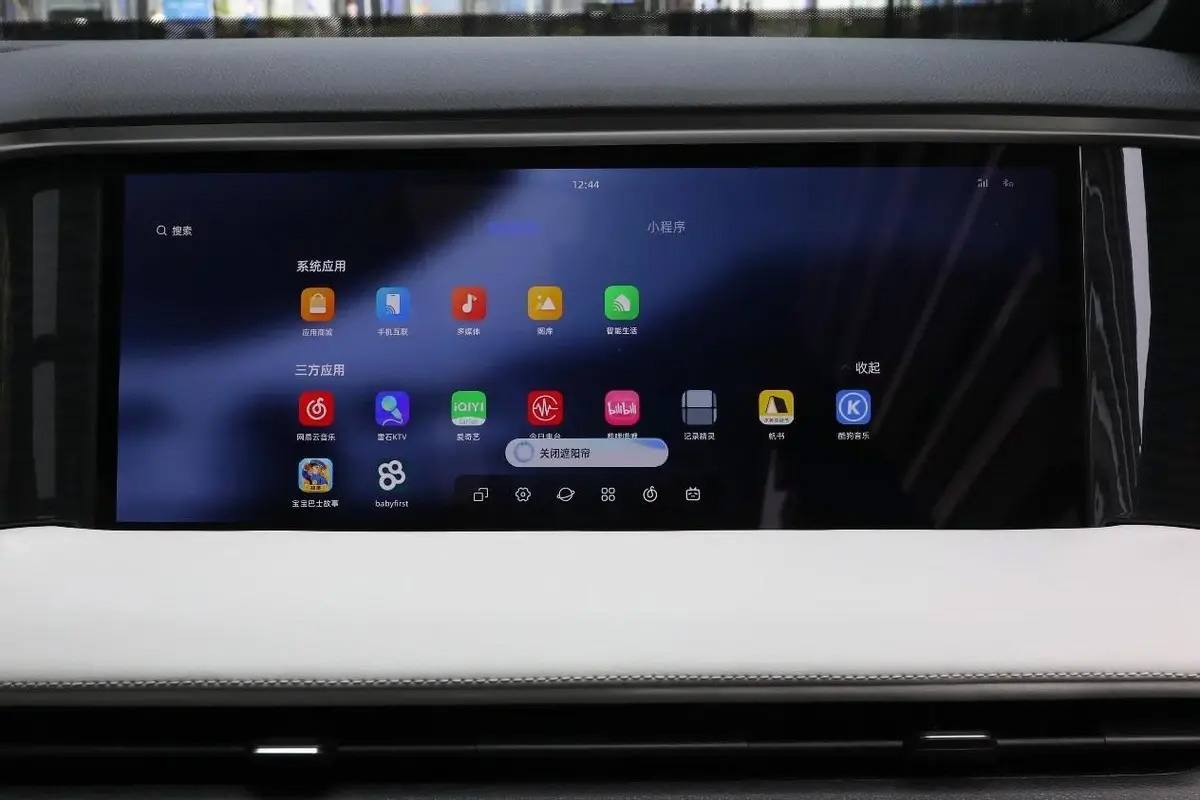

In terms of the co-pilot screen, it is optimized for some third-party apps, which facilitates the daily rest and entertainment of the co-pilot and passengers. It is worth mentioning that only the top version is equipped with Infinity's 11-group speaker system.

Geely Galaxy L7_2

In terms of assisted driving capabilities, the vehicle has an L2 level of intelligent assisted driving. There are more high-precision configurations like IHBC intelligent high beam control, AEB city pre-collision system, AEB-P pedestrian recognition and protection system, ACC adaptive cruise assist... These are the configurations that require high precision. In terms of other configurations, tire pressure monitoring, rear parking radar, reversing image, transparent chassis, cruise control, automatic air conditioning, and rear exhaust vents are also fully equipped.

Geely Galaxy L7 Specifications

Car Model 2023 1.5T DHT 55km PRO 2023 1.5T DHT 55km AIR 2023 1.5T DHT 115km PLUS 2023 1.5T DHT 115km MAX
Dimension 4700*1905*1685mm
Wheelbase 2785mm
Max Speed 200km
0-100 km/h Acceleration Time None
Battery Capacity 9.11kWh 9.11kWh 18.7kWh 18.7kWh
Battery Type Lithium Iron Phosphate Battery
Battery Technology CATL CTP Tablet battery
Quick Charging Time Fast Charge 0.5 hours Slow Charge 1.7 hours Fast Charge 0.5 hours Slow Charge 1.7 hours Fast Charge 0.5 hours Slow Charge 3 hours Fast Charge 0.5 hours Slow Charge 3 hours
Pure Electric Cruising Range 55km 55km 115km 115km
Fuel Consumption Per 100 km 2.35L 2.35L 1.3L 1.3L
Energy Consumption Per 100 km None
Displacement 1499cc(Tubro)
Engine Power 163hp/120kw
Engine Maximum Torque 255Nm
Motor Power 146hp/107kw
Motor Maximum Torque 338Nm
Number Of Seats 5
Driving System Front FWD
Minimum State Of Charge Fuel Consumption 5.23L
Gearbox 3-Speed DHT(3DHT)
Front Suspension MacPherson Independent Suspension
Rear Suspension Double Wishbone Independent Suspension



Geely Galaxy L7 is equipped with a new generation of Raytheon electric hybrid system, which can achieve 1370km CLTC comprehensive battery life and 5.23L WLTC fuel consumption per 100 kilometers. At the same time, thanks to the 1.5T hybrid special engine and Thor electric drive system, the performance release of the whole vehicle is quite good. In particular, its characteristic 3-speed DHT hybrid gearbox can bring more extreme high-speed working conditions. The maximum comprehensive power of the vehicle is 287 kW, the maximum comprehensive torque is 535 Nm, the pure electric cruising range is up to 115 kilometers, and the zero-to-hundred acceleration is 6.9 seconds.

In terms of chassis, the front McPherson + rear double wishbone independent suspension structure is adopted. The battery pack uses the CTP flat battery of Ningde era, equipped with lithium iron phosphate batteries with a capacity of 9.11 (55km version) / 18.7 (115km version) , It can also support 0.5 hours of fast charging, which is convenient for short-distance commuting.

Geely Galaxy L7_21

The overall strength of Geely Galaxy L7 is really good, and it is also quite competitive in the market among plug-in hybrid SUVs. Geely Galaxy L7 will compete head-on with BYD Song PLUS DM-i, Song Pro DM-i and other models in the future




  • Previous:
  • Next:

  • Car Model Geely Galaxy L7
    2023 1.5T DHT 55km PRO 2023 1.5T DHT 55km AIR
    Basic Information
    Manufacturer Geely Galaxy
    Energy Type Plug-In Hybrid
    Motor 1.5T 163hp L4 Plug-In Hybrid
    Pure Electric Cruising Range(KM) 55km
    Charging Time(Hour) Fast Charge 0.5 hours Slow Charge 1.7 hours
    Engine Maximum Power (kW) 120(163hp)
    Motor Maximum Power (kW) 107(146hp)
    Engine Maximum Torque (Nm) 255Nm
    Motor Maximum Torque (Nm) 338Nm
    LxWxH(mm) 4700*1905*1685mm
    Maximum Speed(KM/H) 200km
    Electricity Consumption Per 100km (kWh/100km) None
    Minimum State Of Charge Fuel Consumption (L/100km) 5.23L
    Body
    Wheelbase (mm) 2785
    Front Wheel Base(mm) 1630
    Rear Wheel Base(mm) 1630
    Number Of Doors (pcs) 5
    Number Of Seats (pcs) 5
    Curb Weight (kg) 1800
    Full Load Mass(kg) 2245
    Fuel tank capacity (L) 60
    Drag Coefficient (Cd) None
    Engine
    Engine Model BHE15-BFZ
    Displacement (mL) 1499
    Displacement (L) 1.5
    Air Intake Form Turbocharged
    Cylinder Arrangement L
    Number Of Cylinders (pcs) 4
    Number Of Valves Per Cylinder (pcs) 4
    Maximum Horsepower (Ps) 163
    Maximum Power (kW) 120
    Maximum Torque (Nm) 255
    Engine Specific Technology None
    Fuel Form Plug-In Hybrid
    Fuel Grade 92#
    Fuel Supply Method In-Cylinder Direct Injection
    Electric Motor
    Motor Description Plug-in Hybrid 146 hp
    Motor Type Permanent magnet/synchronous
    Total Motor Power (kW) 107
    Motor Total Horsepower (Ps) 146
    Motor Total Torque (Nm) 338
    Front Motor Maximum Power (kW) 107
    Front Motor Maximum Torque (Nm) 338
    Rear Motor Maximum Power (kW) None
    Rear Motor Maximum Torque (Nm) None
    Drive Motor Number Single Motor
    Motor Layout Front
    Battery Charging
    Battery Type Lithium Iron Phosphate Battery
    Battery Brand CATL/Svolt
    Battery Technology CTP Tablet battery
    Battery Capacity(kWh) 9.11kWh
    Battery Charging Fast Charge 0.5 hours Slow Charge 1.7 hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Gearbox
    Gearbox Description 3-Speed DHT
    Gears 3
    Gearbox Type Dedicated Hybrid Transmission (DHT)
    Chassis/Steering
    Drive Mode Front FWD
    Four-Wheel Drive Type None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Double Wishbone Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Ventilated Disc
    Front Tire Size 235/55 R18 235/50 R19
    Rear Tire Size 235/55 R18 235/50 R19





    Car Model Geely Galaxy L7
    2023 1.5T DHT 115km PLUS 2023 1.5T DHT 115km MAX 2023 1.5T DHT 115km Starship
    Basic Information
    Manufacturer Geely Galaxy
    Energy Type Plug-In Hybrid
    Motor 1.5T 163hp L4 Plug-In Hybrid
    Pure Electric Cruising Range(KM) 115km
    Charging Time(Hour) Fast Charge 0.5 hours Slow Charge 3 hours
    Engine Maximum Power (kW) 120(163hp)
    Motor Maximum Power (kW) 107(146hp)
    Engine Maximum Torque (Nm) 255Nm
    Motor Maximum Torque (Nm) 338Nm
    LxWxH(mm) 4700*1905*1685mm
    Maximum Speed(KM/H) 200km
    Electricity Consumption Per 100km (kWh/100km) None
    Minimum State Of Charge Fuel Consumption (L/100km) 5.23L
    Body
    Wheelbase (mm) 2785
    Front Wheel Base(mm) 1630
    Rear Wheel Base(mm) 1630
    Number Of Doors (pcs) 5
    Number Of Seats (pcs) 5
    Curb Weight (kg) 1860 1890
    Full Load Mass(kg) 2330
    Fuel tank capacity (L) 60
    Drag Coefficient (Cd) None
    Engine
    Engine Model BHE15-BFZ
    Displacement (mL) 1499
    Displacement (L) 1.5
    Air Intake Form Turbocharged
    Cylinder Arrangement L
    Number Of Cylinders (pcs) 4
    Number Of Valves Per Cylinder (pcs) 4
    Maximum Horsepower (Ps) 163
    Maximum Power (kW) 120
    Maximum Torque (Nm) 255
    Engine Specific Technology None
    Fuel Form Plug-In Hybrid
    Fuel Grade 92#
    Fuel Supply Method In-Cylinder Direct Injection
    Electric Motor
    Motor Description Plug-in Hybrid 146 hp
    Motor Type Permanent magnet/synchronous
    Total Motor Power (kW) 107
    Motor Total Horsepower (Ps) 146
    Motor Total Torque (Nm) 338
    Front Motor Maximum Power (kW) 107
    Front Motor Maximum Torque (Nm) 338
    Rear Motor Maximum Power (kW) None
    Rear Motor Maximum Torque (Nm) None
    Drive Motor Number Single Motor
    Motor Layout Front
    Battery Charging
    Battery Type Lithium Iron Phosphate Battery
    Battery Brand CATL/Svolt
    Battery Technology CTP Tablet battery
    Battery Capacity(kWh) 18.7kWh
    Battery Charging Fast Charge 0.5 hours Slow Charge 3 hours
    Fast Charge Port
    Battery Temperature Management System Low Temperature Heating
    Liquid Cooled
    Gearbox
    Gearbox Description 3-Speed DHT
    Gears 3
    Gearbox Type Dedicated Hybrid Transmission (DHT)
    Chassis/Steering
    Drive Mode Front FWD
    Four-Wheel Drive Type None
    Front Suspension MacPherson Independent Suspension
    Rear Suspension Double Wishbone Independent Suspension
    Steering Type Electric Assist
    Body Structure Load Bearing
    Wheel/Brake
    Front Brake Type Ventilated Disc
    Rear Brake Type Ventilated Disc
    Front Tire Size 235/50 R19
    Rear Tire Size 235/50 R19
